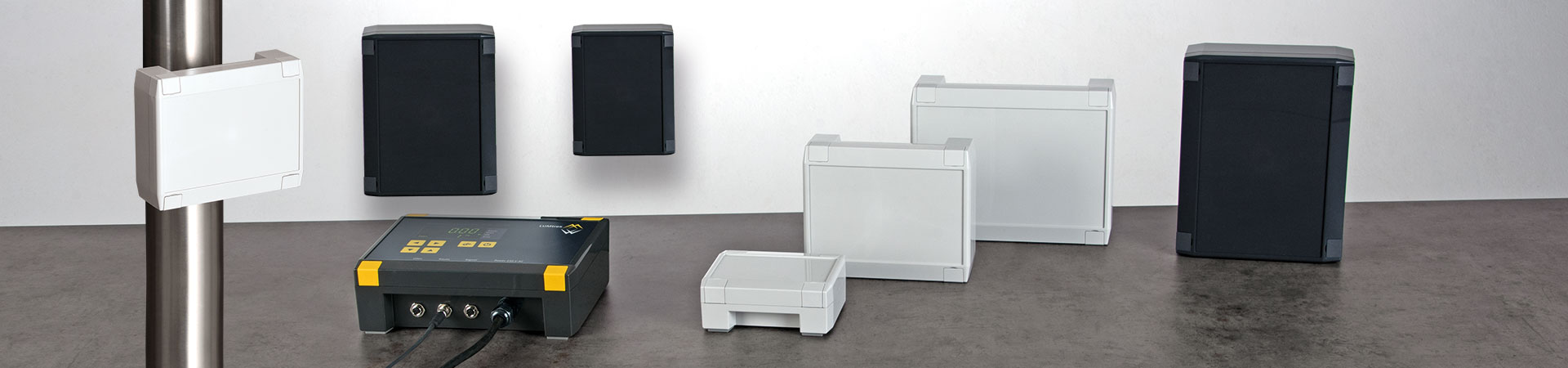

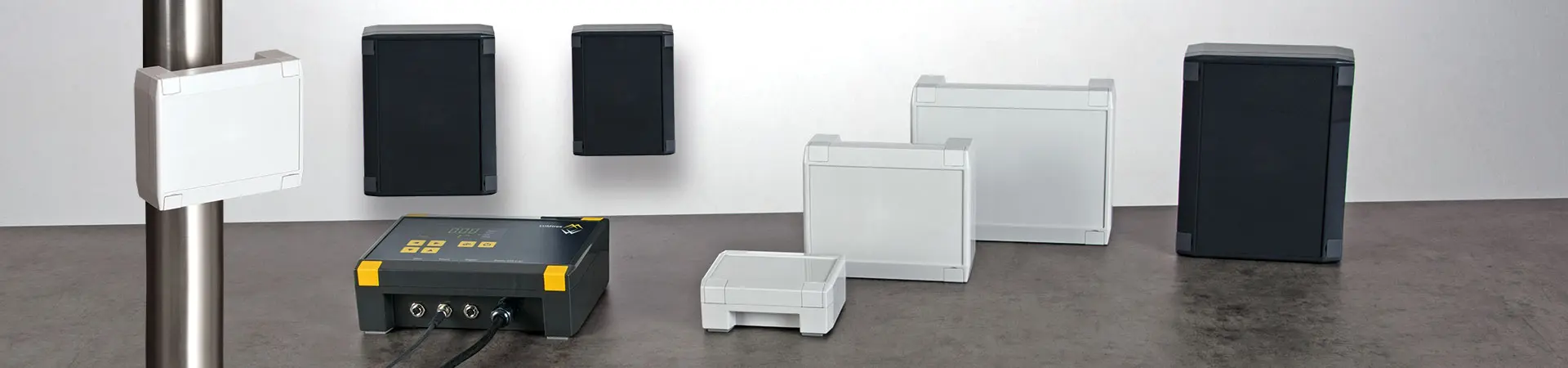

SOLID-BOX industrial enclosures
Scroll

Solid-Box

Elegant IP 66/IP 67 enclosure for industrial applications

Robust, waterproof and stylish – the new SOLID-BOX enclosure range satisfies all the requirements that a modern electronic/electrical housing must meet in industrial environments, as well as in protected outdoor areas.

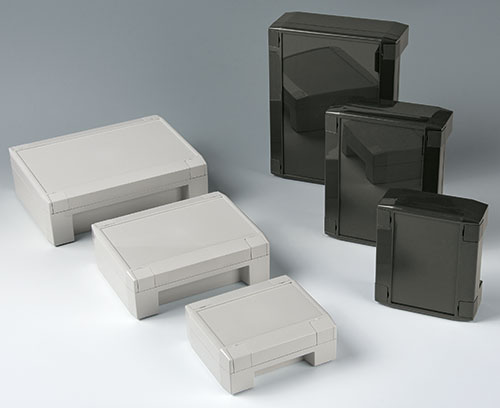

  • 3 enclosure sizes in 2 standard colours

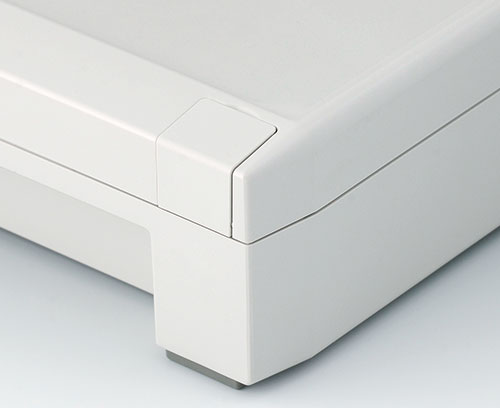

  • convincing design thanks to the modern, highly polished enclosure surface snap-on design trims in the top panel conceal all the fixing screws

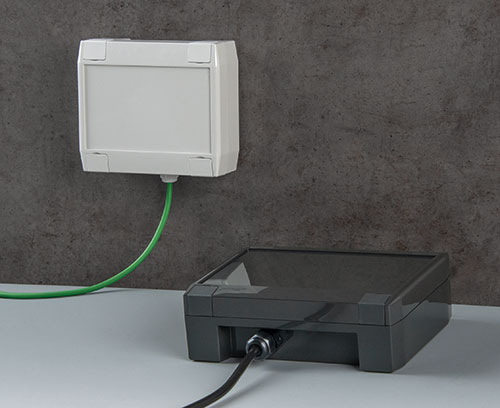

  • can be used as desktop and wall-mounted enclosures

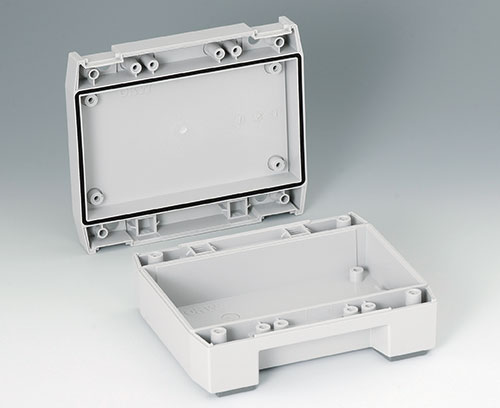

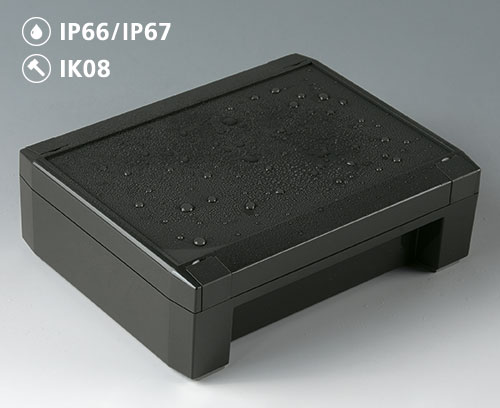

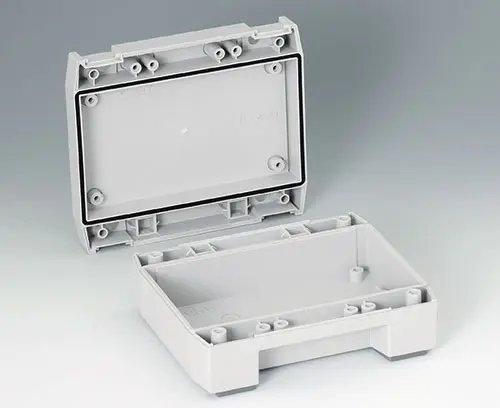

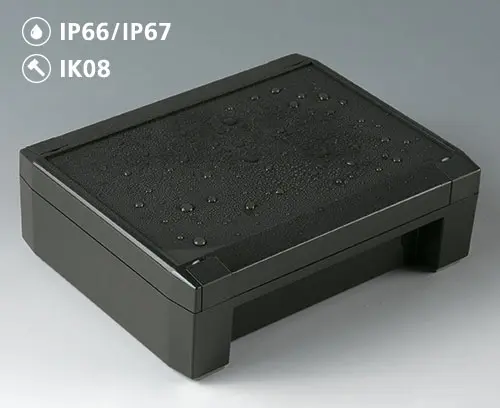

  • high IP 66/67 protection class and IK 08 impact protection offer safety – even in harsh environments; the seal is pre-fitted in the top part
  • excellent, flame-retardant V-0 rated material (1.50 mm) with increased heat distortion temperature (Vicat/B 120 = 110°C), chlorine- and bromine-free flame resistance

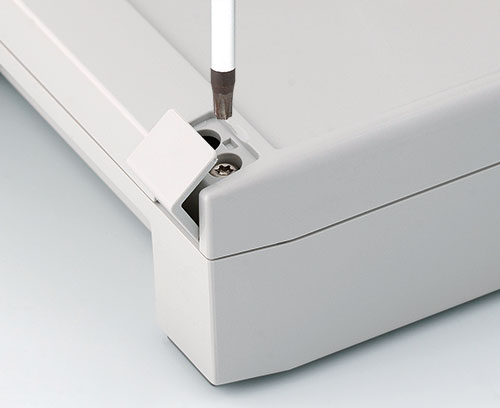

  • enclosure assembly with rust-proof, captured Torx screws outside the sealed interior

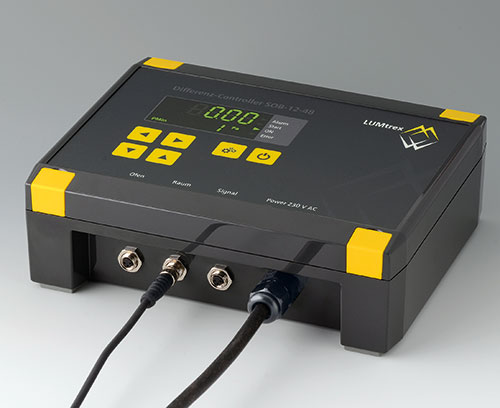

  • 2 recessed areas in the bottom part for installation/protection of connectors, switches and other interfaces – easy and user-friendly to connect

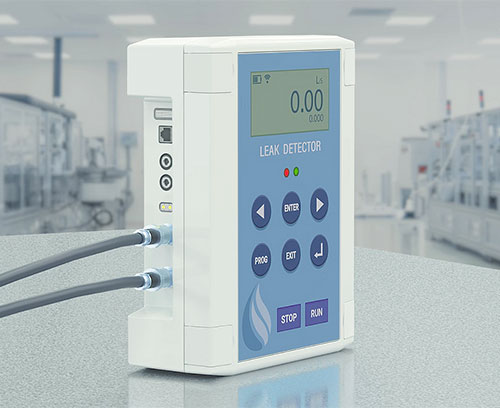

  • recessed operating area in the top for flush fitting a membrane keypad or product label

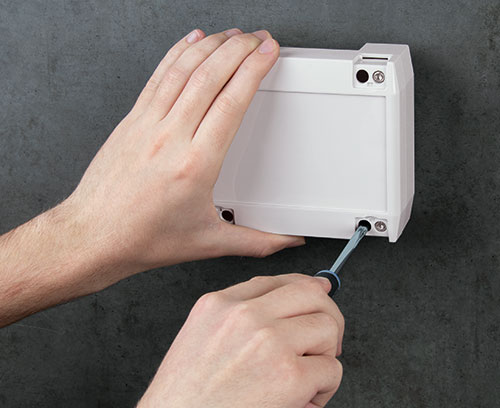

  • screw channels under the design trims allow for direct, concealed wall mounting

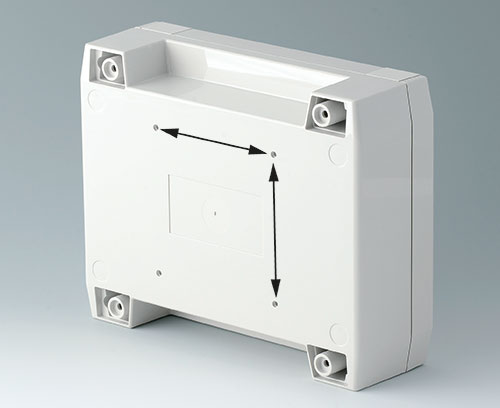

  • mounting points on the rear of sizes 145 and 175 match the hole patterns of VESA MIS-D 75/100

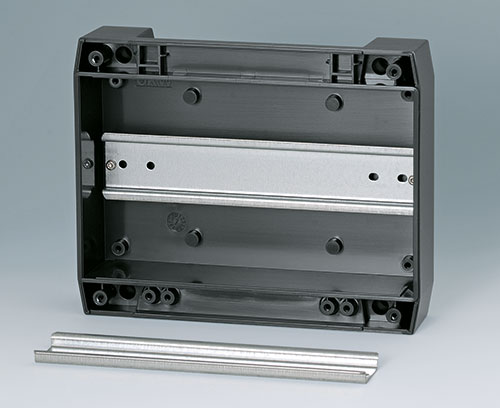

  • integrated fastening pillars for PCBs, DIN rails and mounting plates
  • accessory hinge set retains the top panel in situ during assembly and servicing

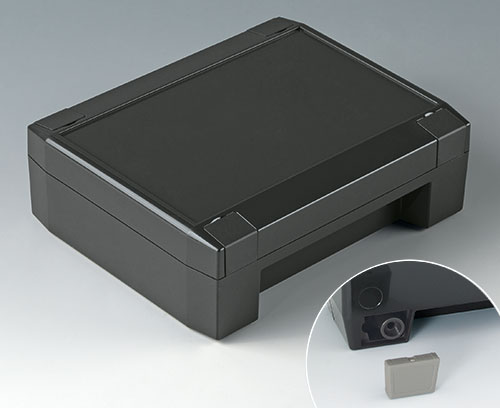

  • enclosure feet kit (accessory) for non-slip positioning on a desktop

Special material

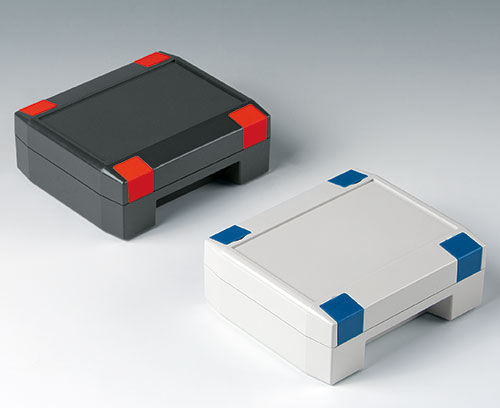

On request we can also custom mould many of our enclosures in special colours/materials to match your requirements exactly. For the new SOLID-BOX, for example, it would be possible to have the design trims injection-moulded in a different colour to code the function or device series, or even to have the whole enclosure in your company colour (minimum quantity and feasibility on request).

DESIGNER STATEMENT

“A SOLID-BOX delivers what its name promises. In this enclosure, watertight and particularly impact-resistant, your components can be placed stably and securely even in inhospitable environments, without visible screw connections or fasteners. And yet the design of the enclosures gives the robust construction an elegant lightness. The slightly sloping bevels surrounding the long sides and the interplay of light and shadow underline the quality of the product."
Martin Nussberger, polyform Industrie Design

Generate PDF
  • Video

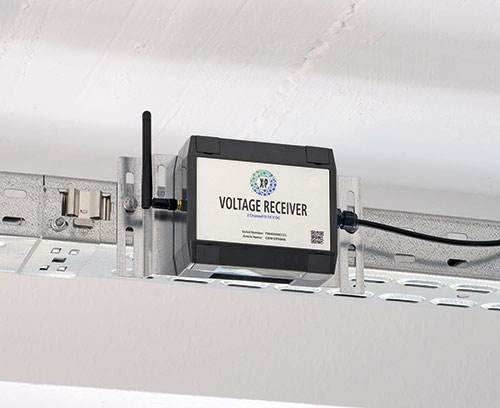

  • Application Examples

Application fields

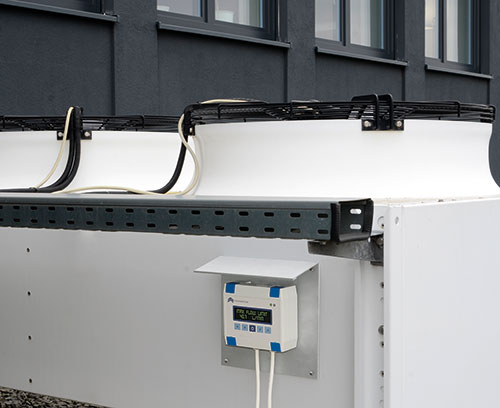

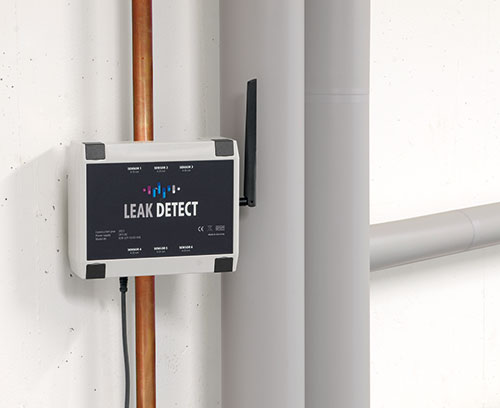

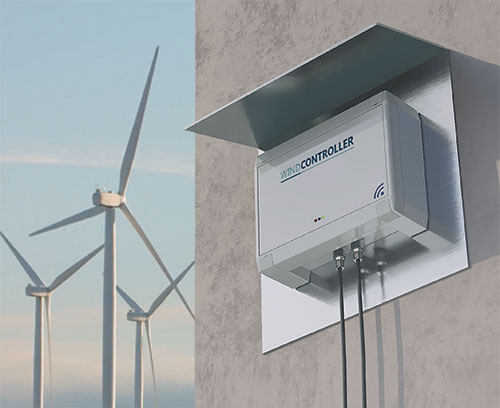

Ideal for high-quality electronic and electrical equipment which is used indoors or in protected outdoor areas.

  • Plant and machine construction
  • Heating, air conditioning and ventilation technology
  • IoT/IIoT
  • Smart factory/Industry 4.0
  • Gateways
  • Data loggers
  • Information and communications technology (ICT)
  • Electrical installations
  • Measuring and control technology

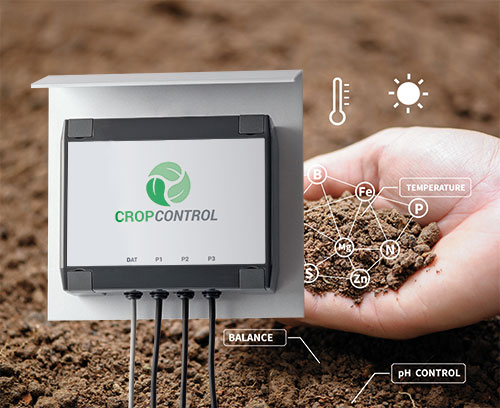

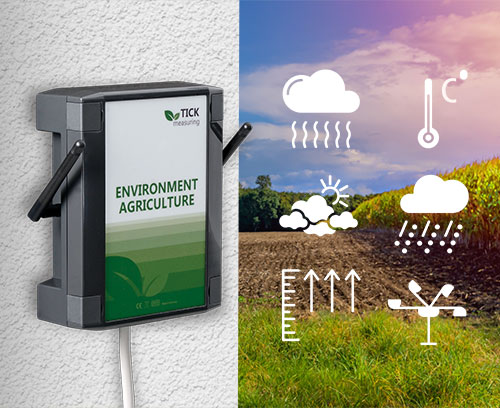

  • Agriculture, farming
  • Sensor systems
  • Safety engineering
  • Browse Full List
  • Accessories
  • Catalogue Documents
  • View Customising Options
C8011131 SOLID-BOX 115

C8011131

SOLID-BOX 115 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8011131

SOLID-BOX 115
product added to your basket
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
135x115x50mm
IP 66, IP 67, IK 08
C8011132 SOLID-BOX 115

C8011132

SOLID-BOX 115 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8011132

SOLID-BOX 115
product added to your basket
PC+ABS (UL 94 V-0)
light grey RAL 7035
135x115x50mm
IP 66, IP 67, IK 08
C8014181 SOLID-BOX 145

C8014181

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8014181

SOLID-BOX 145
product added to your basket
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
180x145x60mm
IP 66, IP 67, IK 08
C8014182 SOLID-BOX 145

C8014182

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8014182

SOLID-BOX 145
product added to your basket
PC+ABS (UL 94 V-0)
light grey RAL 7035
180x145x60mm
IP 66, IP 67, IK 08
C8017221 SOLID-BOX 175

C8017221

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8017221

SOLID-BOX 175
product added to your basket
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
225x175x70mm
IP 66, IP 67, IK 08
C8017222 SOLID-BOX 175

C8017222

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Close

C8017222

SOLID-BOX 175
product added to your basket
PC+ABS (UL 94 V-0)
light grey RAL 7035
225x175x70mm
IP 66, IP 67, IK 08
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A0399T20 Torx T20 screwdriver

A0399T20

Torx T20 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T20

Torx T20 screwdriver
product added to your basket
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your basket
PP
natural-coloured
C8100188 Set of enclosure feet

C8100188

Set of enclosure feet Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.

Supply 4 enclosure feet

Close

C8100188

Set of enclosure feet
product added to your basket
SEBS (TPE)
volcano

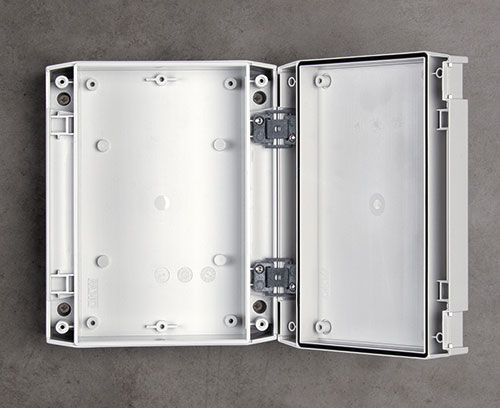

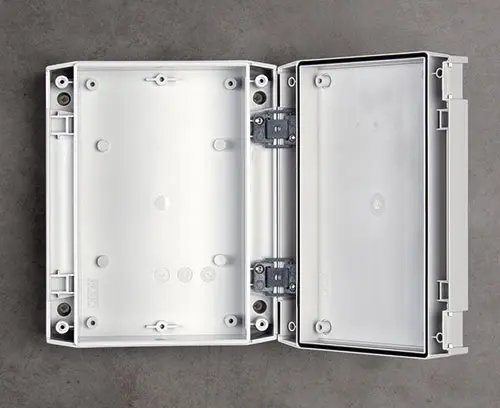

C8100360 Internal hinge set

C8100360

Internal hinge set Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.

Supply 2 hinges, 4 screws

Close

C8100360

Internal hinge set
product added to your basket

Customising options for Solid-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
