Handle bar, bail arm
Scroll

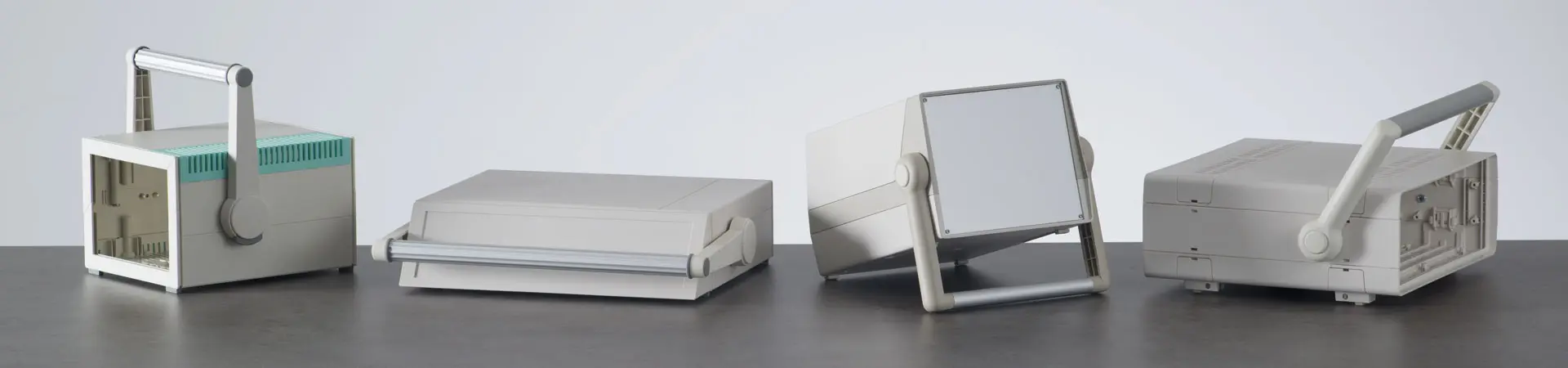

Handle bar, bail arm

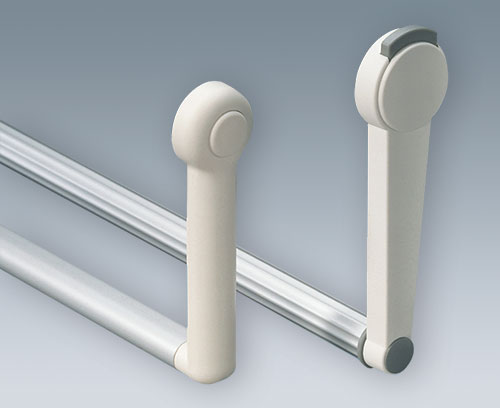

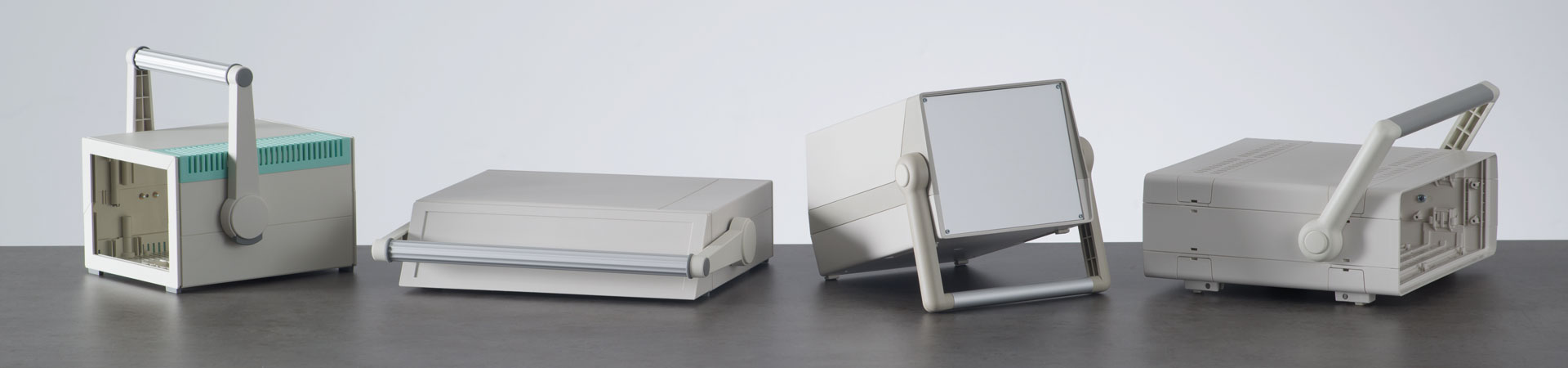

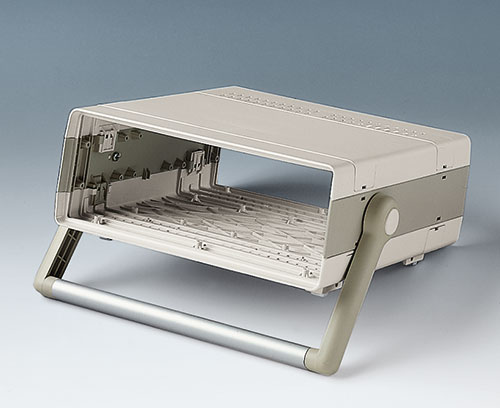

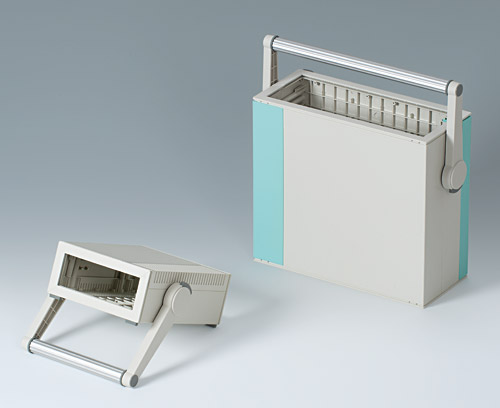

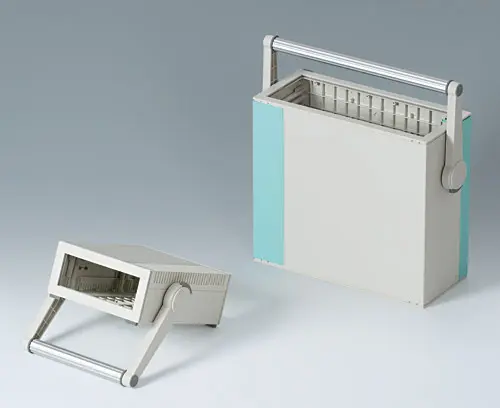

Tilt and swivel carry handle bars made of plastic. With matching anodised aluminium profile, cut to the correct width for your enclosure, and supplied as a separate component.

Generate PDF
  • Browse Full List
  • View Customising Options

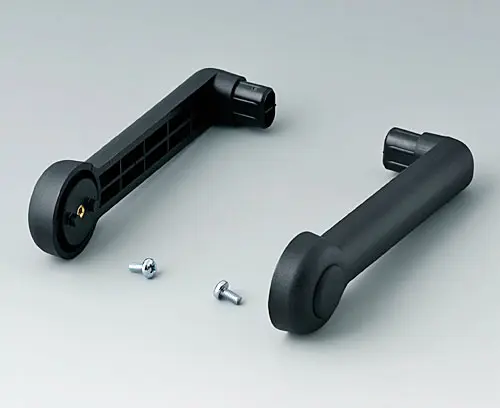

A9300015 Side arm kit

A9300015

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300015

Side arm kit
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005
A9300016 Side arm kit

A9300016

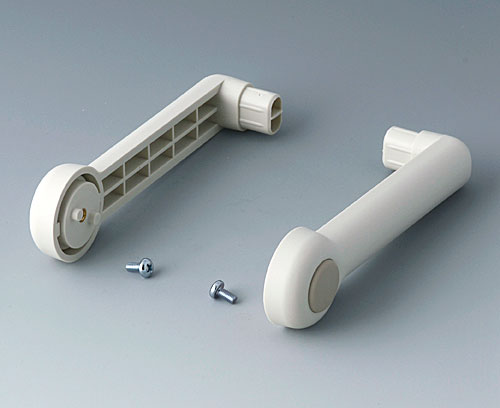

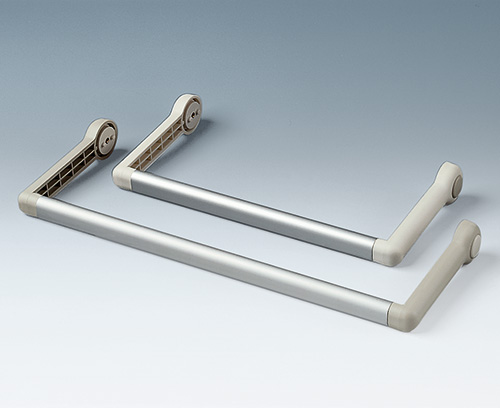

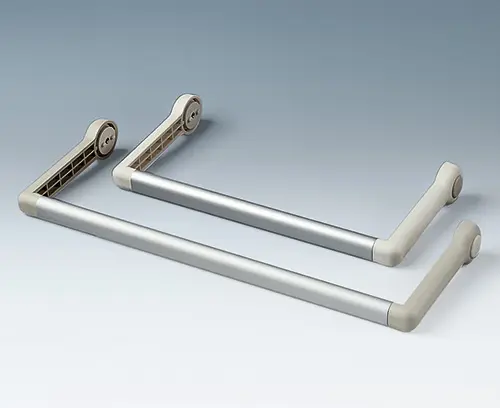

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300016

Side arm kit
product added to your basket
PA 6
off-white RAL 9002

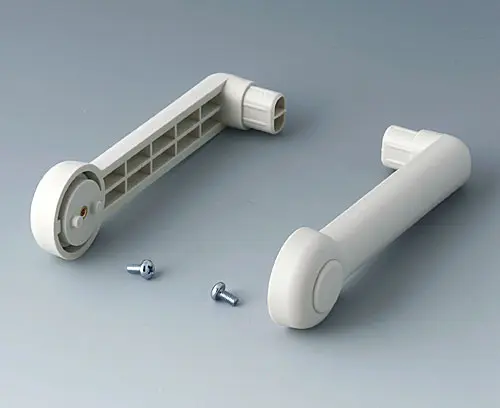

A9300017 Side arm kit

A9300017

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300017

Side arm kit
product added to your basket
PA 6
off-white RAL 9002
A9300018 Side arm kit

A9300018

Side arm kit For canting and carrying the unit. Strong ratchet with 30° indexing. Al profile extrusions (AS050124 silver / AS051254 black) in the required length are available as separate accessory (on demand). The length of the profile has to be 16 mm shorter than the width of the case.

Supply 2 side arms, 2 fastenings screws

Close

A9300018

Side arm kit
product added to your basket
PA 6
pebble grey RAL 7032
A9300522 Side arm kit

A9300522

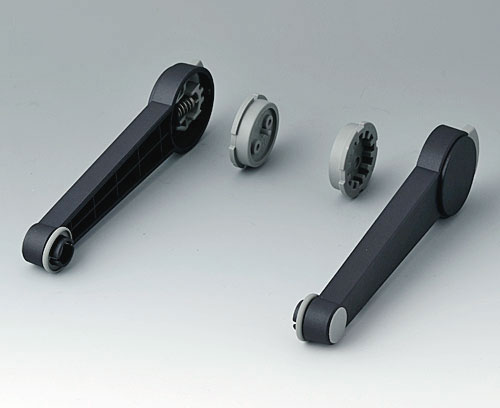

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300522

Side arm kit
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005
A9300722 Side arm kit

A9300722

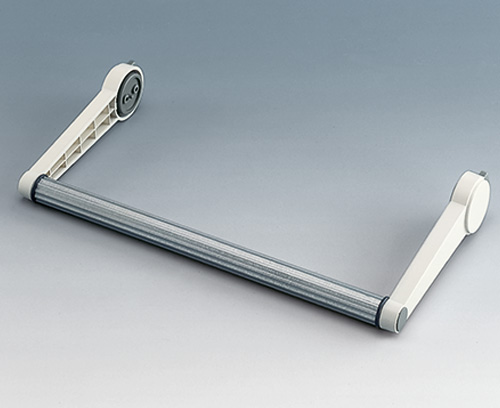

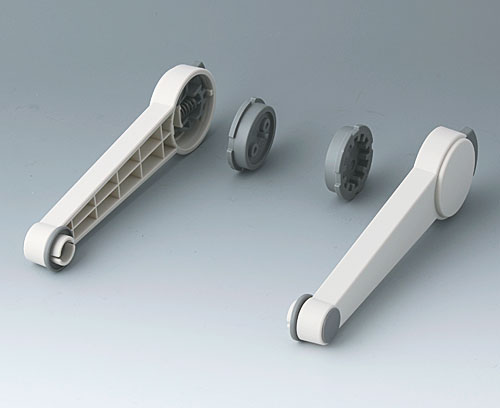

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300722

Side arm kit
product added to your basket
PA 6
off-white RAL 9002

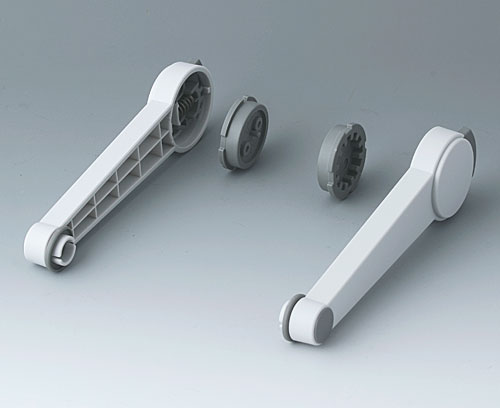

A9300822 Side arm kit

A9300822

Side arm kit The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 3 mm longer than the width of the case.

Supply 2 side arms, fixing material

Close

A9300822

Side arm kit
product added to your basket
PA 6
light grey RAL 7035

Customising options for Handle bar, bail arm

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
