C8100188 Set of enclosure feet
Scroll

C8100188

Set of enclosure feet

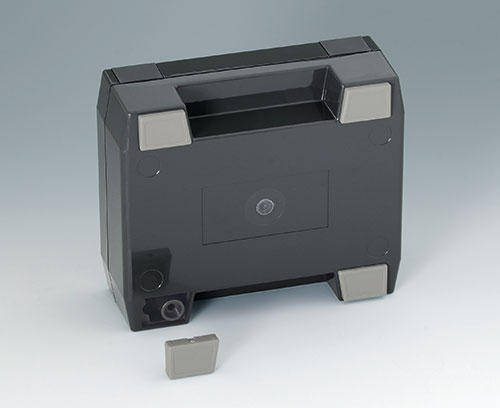

Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.

Supply

4 enclosure feet

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
制作 PDF 数据表

请制作 PDF 数据表用于 C8100188

请选择产品信息以输入数据表。

关闭
  • 应用于
C8011131 SOLID-BOX 115

C8011131

SOLID-BOX 115 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8011131

SOLID-BOX 115
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
135x115x50mm
IP 66, IP 67, IK 08
C8011132 SOLID-BOX 115

C8011132

SOLID-BOX 115 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8011132

SOLID-BOX 115
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
light grey RAL 7035
135x115x50mm
IP 66, IP 67, IK 08
C8014181 SOLID-BOX 145

C8014181

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8014181

SOLID-BOX 145
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
180x145x60mm
IP 66, IP 67, IK 08
C8014182 SOLID-BOX 145

C8014182

SOLID-BOX 145 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8014182

SOLID-BOX 145
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
light grey RAL 7035
180x145x60mm
IP 66, IP 67, IK 08
C8017221 SOLID-BOX 175

C8017221

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8017221

SOLID-BOX 175
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
anthracite grey RAL 7016
225x175x70mm
IP 66, IP 67, IK 08
C8017222 SOLID-BOX 175

C8017222

SOLID-BOX 175 Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

关闭

C8017222

SOLID-BOX 175
产品已添加到关注清单中
PC+ABS (UL 94 V-0)
light grey RAL 7035
225x175x70mm
IP 66, IP 67, IK 08
  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
SEBS (TPE)
颜色
volcano
标准根据
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
