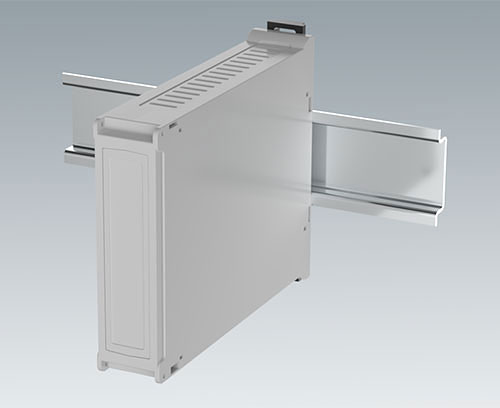

B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots

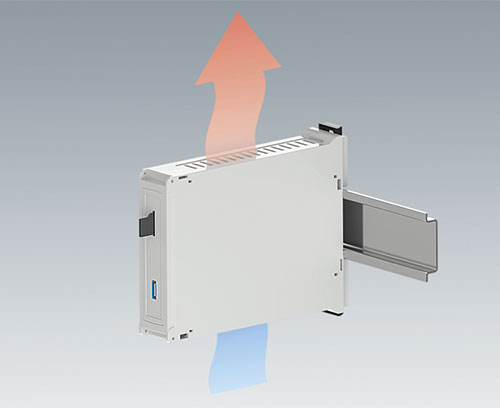

DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version

2 side panels with ventilation slots

Supply

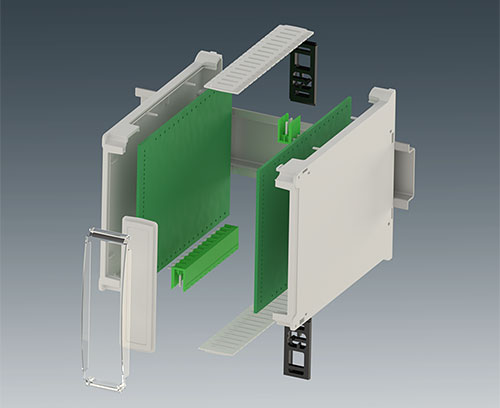

in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

B6622101 Hinged cover

B6622101

Hinged cover Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

关闭

B6622101

Hinged cover
产品已添加到关注清单中
transparent

“端子” 配件

B6600222 Plug header, block 5.08

B6600222

Plug header, block 5.08 Male terminal block, 5.08. 3-pin.

Supply 1 piece

关闭

B6600222

Plug header, block 5.08
产品已添加到关注清单中
PA 68 (UL 94 V-0)
B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

关闭

B6601222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

关闭

B6602222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

关闭

B6605222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

关闭

B6606222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

关闭

B6608222

Plug header, block 5.08
产品已添加到关注清单中
PA 68 (UL 94 V-0)

附件

B6522801 Front panel

B6522801

Front panel Front panel for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

关闭

B6522801

Front panel
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
B6522811 Side panel closed

B6522811

Side panel closed Side panel closed for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

关闭

B6522811

Side panel closed
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
B6522821 Side panel with ventilation slots

B6522821

Side panel with ventilation slots Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

关闭

B6522821

Side panel with ventilation slots
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035

Customising options for B6522103

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
light grey RAL 7035
Width
95 mm
Height
23 mm
Depth
113 mm
Pitch
5.08 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
59 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
