DIN 标准导轨接线盒
添加到购物车内 至少组件 (相对单件)
1 个下盒，型式 I
1 款视面 (上盒或铝材质前面板)
1块带卡扣条底板
1 个底座 – 倾斜坐 / 墙挂坐 –
或
1 个下盒，型式 II
1 款视面 ( ABS 塑料视面板或玻璃板)
1块带卡扣条底板
1 个底座 – 倾斜坐 / 墙挂坐 –
系统组件使产品完整
B4046407
Cover L
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply 1 cover, assembly kit
关闭B4046407
Cover L产品已添加到关注清单中
off-white RAL 9002
275x195x25.5mm
B4046427
Cover L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for Type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply 1 top part, 2 attachment strips, 2 assembly kits (iPad is not included)
关闭B4046427
Cover L, for iPad Air产品已添加到关注清单中
off-white RAL 9002
275x195x25.5mm
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting cover or aluminium front panel (sep. article)
Supply 1 bottom part flat
关闭B4046707
Bottom part L flat, version I产品已添加到关注清单中
off-white RAL 9002
275x195x26.5mm
IP 54 opt.
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting ABS front panel or glass panel (sep. article)
Supply 1 bottom part flat
关闭B4046717
Bottom part L flat, version II产品已添加到关注清单中
off-white RAL 9002
275x195x26.5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting cover or aluminium front panel (sep. article)
Supply 1 bottom part high
关闭B4046757
Bottom part L high, version I产品已添加到关注清单中
off-white RAL 9002
275x195x36.5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version Suitable for mounting ABS front panel or glass panel (sep. article)
Supply 1 bottom part high
关闭B4046767
Bottom part L high, version II产品已添加到关注清单中
off-white RAL 9002
275x195x36.5mm
IP 54 opt.
B4046847
Base L - desk-top/wall -
Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.
Supply 1 base, 2 clips, assembly kit
关闭B4046847
Base L - desk-top/wall -产品已添加到关注清单中
off-white RAL 9002
183x183x73mm
B4146106
Front panel L
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply 1 front panel, assembly kit
关闭B4146106
Front panel L产品已添加到关注清单中
matt anodised
271.5x191.5x2mm
B4146107
Front panel L
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply 1 front panel, assembly kit
关闭B4146107
Front panel L产品已添加到关注清单中
off-white RAL 9002
275.6x195.6x15.5mm
B4146126
Front panel L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply 1 front panel, 2 attachment strips, 1 assembly kits (iPad is not included)
关闭B4146126
Front panel L, for iPad Air产品已添加到关注清单中
matt anodised
275.4x195.4x4mm
B4146203
Glass panel L
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply 1 glass panel incl. mounting frame and adhesive foil
关闭B4146203
Glass panel L产品已添加到关注清单中
clear
275.6x195.6x17.7mm
“保护等级” 附件

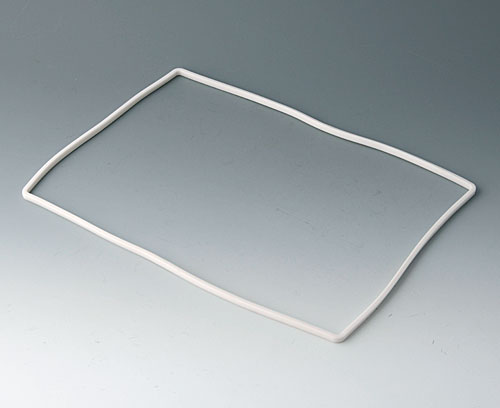

B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply 1 sealing
关闭B4146005
Sealing L (bottom part - front design)产品已添加到关注清单中

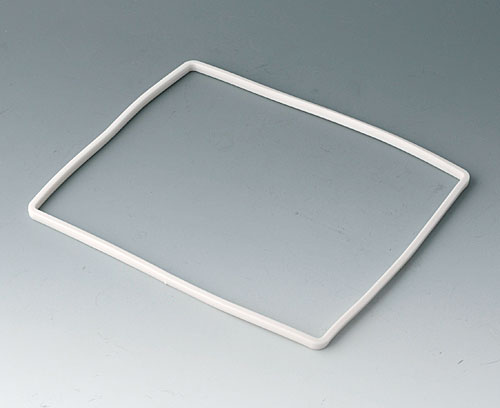

B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply 1 sealing
关闭B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)产品已添加到关注清单中
