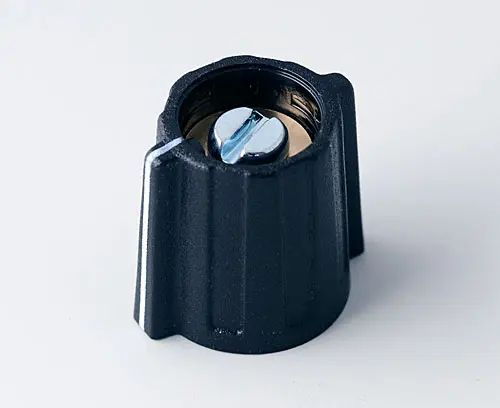

A2813060 WING KNOB 13.5, with line

A2813060

WING KNOB 13.5, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.7 Nm, function = 0.6 Nm.

Supply

1 wing knob

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A4113000 Cover 13.5, without line

A4113000

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113000

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A4113002 Cover 13.5, without line

A4113002

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113002

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
red RAL F12/0-10
A4113004 Cover 13.5, without line

A4113004

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113004

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
yellow RAL F12/0-1
A4113005 Cover 13.5, without line

A4113005

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113005

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
green RAL F12/0-43
A4113006 Cover 13.5, without line

A4113006

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113006

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
light blue RAL 5012
A4113007 Cover 13.5, without line

A4113007

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113007

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032
A4113008 Cover 13.5, without line

A4113008

Cover 13.5, without line Suitable for round and wing knob 13,5. Cover simply to pin up.

Supply 1 cover

关闭

A4113008

Cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
A4113100 Cover 13.5, with line

A4113100

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. White marking.

Supply 1 cover

关闭

A4113100

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A4113102 Cover 13.5, with line

A4113102

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113102

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
red RAL F12/0-10
A4113104 Cover 13.5, with line

A4113104

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113104

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
yellow RAL F12/0-1
A4113105 Cover 13.5, with line

A4113105

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113105

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
green RAL F12/0-43
A4113106 Cover 13.5, with line

A4113106

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113106

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
light blue RAL 5012
A4113107 Cover 13.5, with line

A4113107

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113107

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032
A4113108 Cover 13.5, with line

A4113108

Cover 13.5, with line Suitable for round and wing knob 13,5. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A4113108

Cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037

“螺钉” 附件

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
产品已添加到关注清单中
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
产品已添加到关注清单中
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
产品已添加到关注清单中
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

关闭

A6300000

Spanner
产品已添加到关注清单中
A7513000 Nut cover 13.5, without line

A7513000

Nut cover 13.5, without line Suitable for round and wing knob 13,5. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A7513000

Nut cover 13.5, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7513010 Nut cover 13.5, with line

A7513010

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. White marking.

Supply 1 nut cover

关闭

A7513010

Nut cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7513018 Nut cover 13.5, with line

A7513018

Nut cover 13.5, with line Suitable for round and wing knob 13,5. Nut cover simply to pin up. Black marking.

Supply 1 nut cover

关闭

A7513018

Nut cover 13.5, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037

Customising options for A2813060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Diameter
13 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
