A2431060 SPINDLE-SHAPED KNOB 31, with line

A2431060

SPINDLE-SHAPED KNOB 31, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply

1 spindle-shaped knob

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

A5031000 Cover 31, without line

A5031000

Cover 31, without line Suitable for spindle-shaped knob 31. Cover simply to pin up.

Supply 1 cover

关闭

A5031000

Cover 31, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

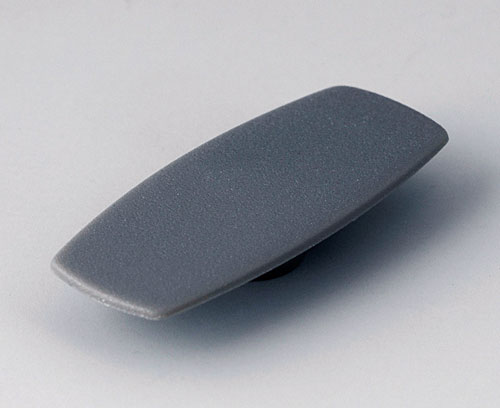

A5031008 Cover 31, without line

A5031008

Cover 31, without line Suitable for spindle-shaped knob 31. Cover simply to pin up.

Supply 1 cover

关闭

A5031008

Cover 31, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
A5031100 Cover 31, with line

A5031100

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. White marking.

Supply 1 cover

关闭

A5031100

Cover 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A5031107 Cover 31, with line

A5031107

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A5031107

Cover 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
pebble grey RAL 7032

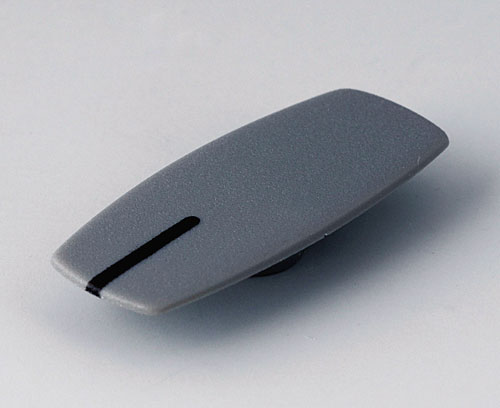

A5031108 Cover 31, with line

A5031108

Cover 31, with line Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.

Supply 1 cover

关闭

A5031108

Cover 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037

“螺钉” 附件

A5131000 Nut cover 31, without line

A5131000

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5131000

Nut cover 31, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

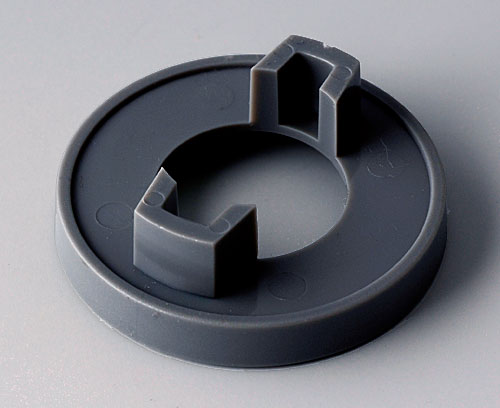

A5131008 Nut cover 31, without line

A5131008

Nut cover 31, without line Suitable for spindle-shaped knob 31. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A5131008

Nut cover 31, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
产品已添加到关注清单中
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
产品已添加到关注清单中
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
产品已添加到关注清单中
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

关闭

A6300000

Spanner
产品已添加到关注清单中

Customising options for A2431060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
black RAL 9005
Diameter
31 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
