B4213107 CARRYTEC L
Scroll

B4213107

CARRYTEC L

Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply

Top and bottom parts, TPE handle pad, assembly kit

2D PDF 视图
3 维 PDF 版视图
添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
制作 PDF 数据表

请制作 PDF 数据表用于 B4213107

请选择产品信息以输入数据表。

关闭
  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

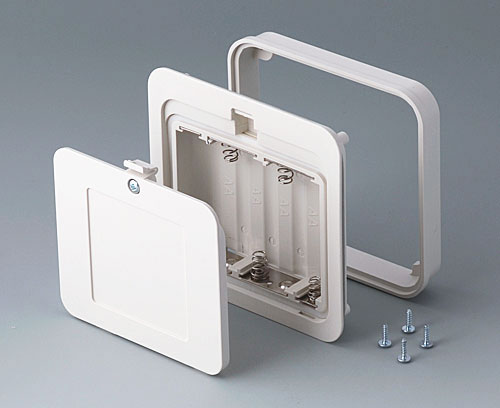

A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

关闭

A9338117

Battery compartment kit, 5 x AA
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54

“底座” 配件

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated

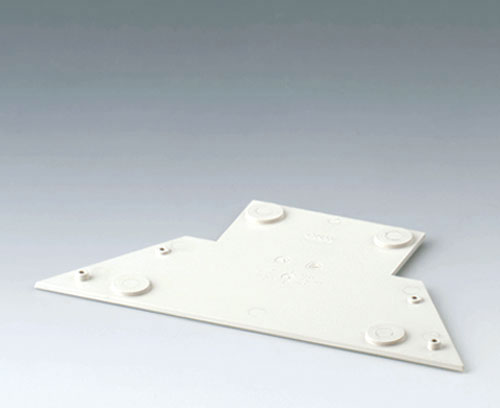

B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

关闭

B4308127

Base plate for station
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
B4313117 Station L

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

关闭

B4313117

Station L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

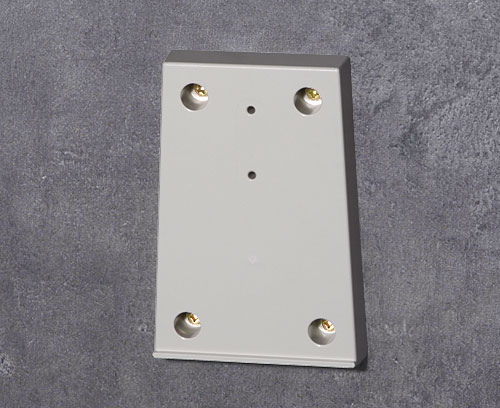

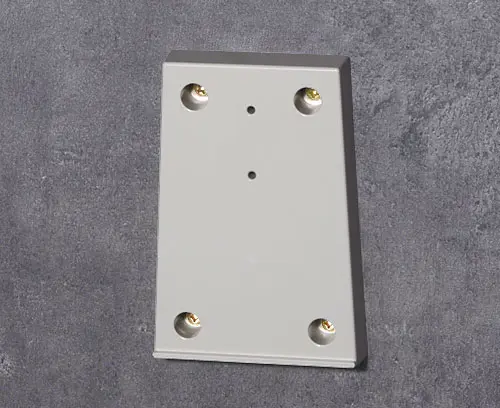

B4313147 Adapter for Station L

B4313147

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

关闭

B4313147

Adapter for Station L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

“保护等级” 附件

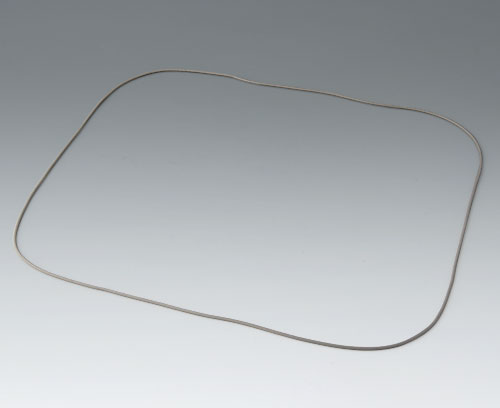

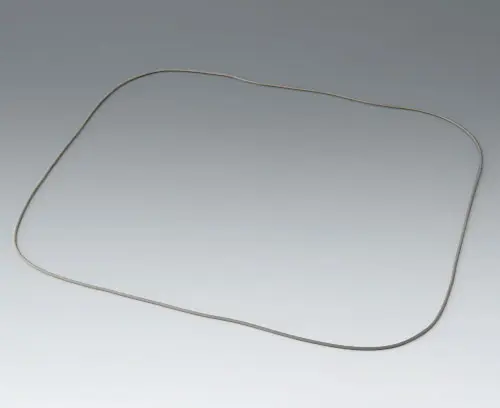

B4313001 Sealing L

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

关闭

B4313001

Sealing L
产品已添加到关注清单中

“挂墙支架” 配件

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

关闭

B4308237

Holding clamps
产品已添加到关注清单中
PA 6
off-white RAL 9002

“螺钉” 附件

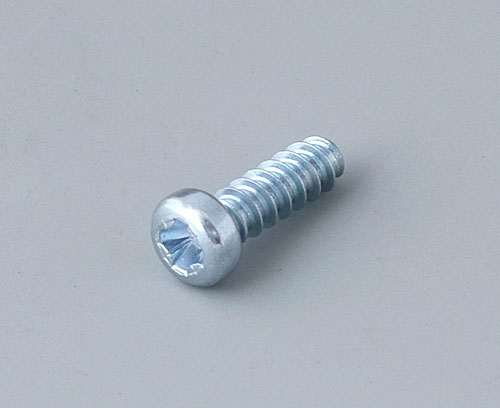

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
产品已添加到关注清单中
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
产品已添加到关注清单中

附件

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178007

Contacts, male
产品已添加到关注清单中
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

关闭

A9178008

Contacts, female
产品已添加到关注清单中
gold-plated

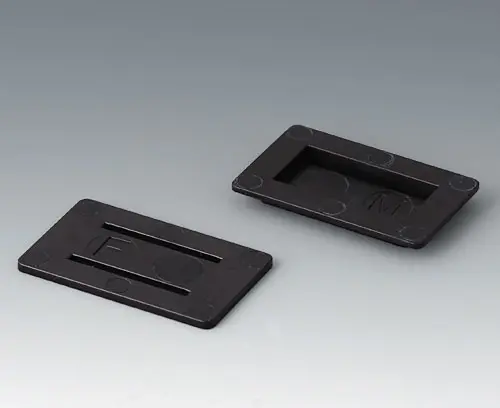

A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

关闭

A9193042

Mounting plates for contacts
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

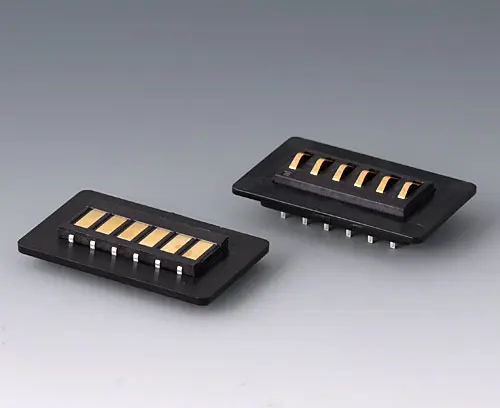

A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

关闭

A9193044

Contacting kit, 6-pin
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

Customising options for B4213107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料

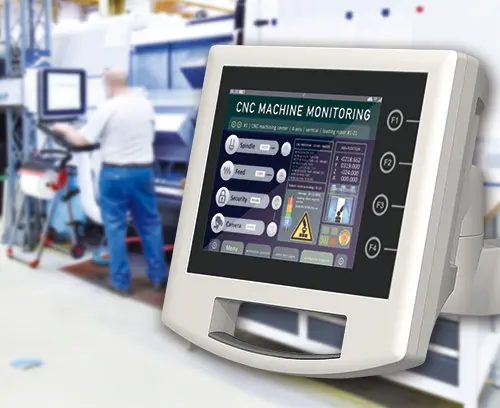

  • 应用示例
  • 采购有关数据
材料
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Handle pad
防护等级
IP 54 opt.
Necessary accessories: sealing kit
颜色
Enclosure off-white RAL 9002,
Handle pad volcano
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
348 mm
Height
303 mm
Depth
117 mm
电路板长度，下盒
310 mm
电路板宽度，下盒
213 mm
电路板长度，上盒
305 mm
电路板宽度，上盒
216 mm
Keypad length
284.5 mm
Keypad width
209.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1121 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
