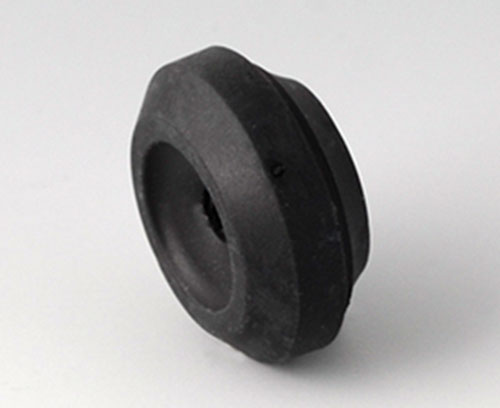

C2316159 Cable grommet

C2316159

Cable grommet

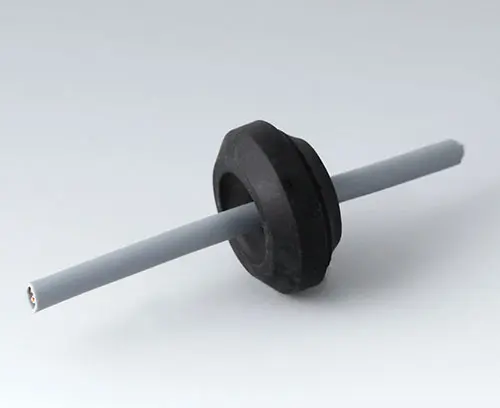

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens and sulphur. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +80°C. Borehole ø 16.5 mm.

Supply

1 cable grommet

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
