Com-Knobs 通讯旋钮

Com-Knobs 通讯旋钮

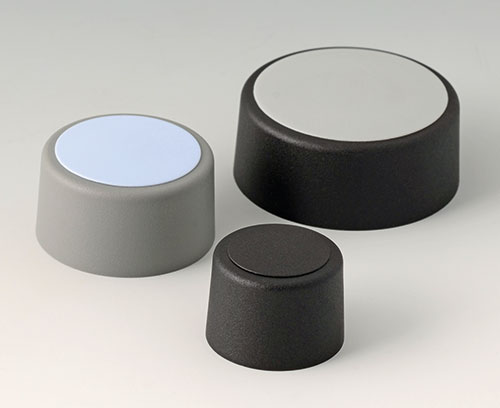

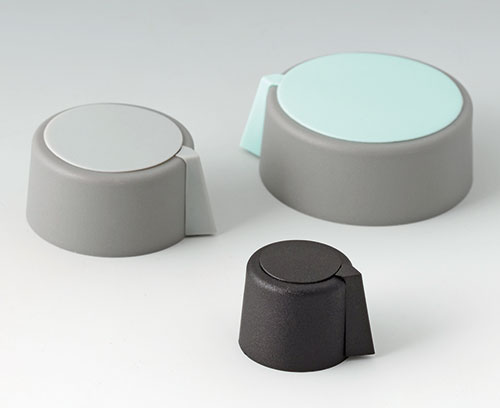

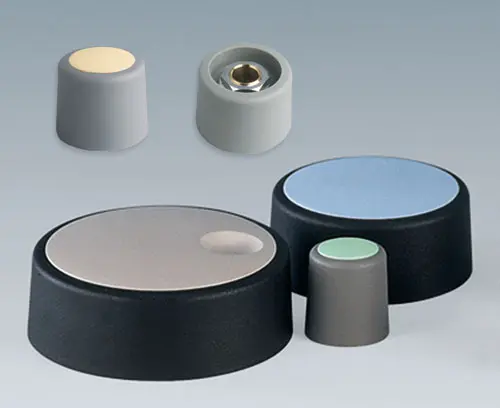

现代式卡夹固定旋钮

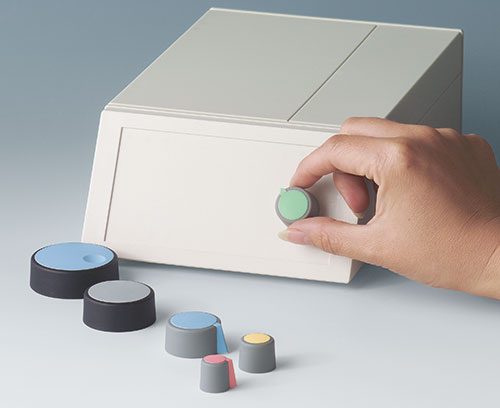

美学设计款式和柔和色调的颜色选择并具备久经考验的卡夹固定体现了 COM-KNOBS 通讯旋钮的特征。

  • 令人愉快的旋钮设计款式使现代创新性设备形象突出

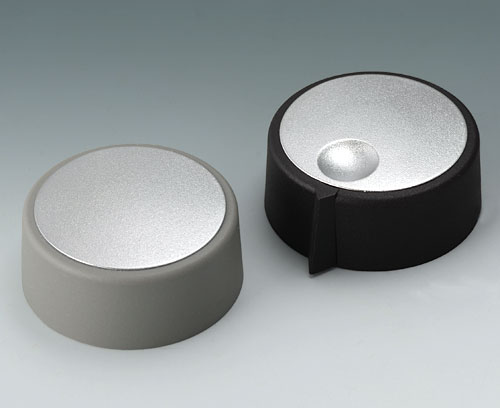

  • 亚光镀铬表面的钮盖体现了高雅的金属外观(尺寸规格 23 - 40)

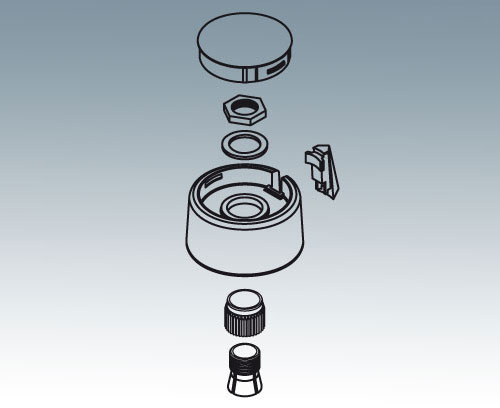

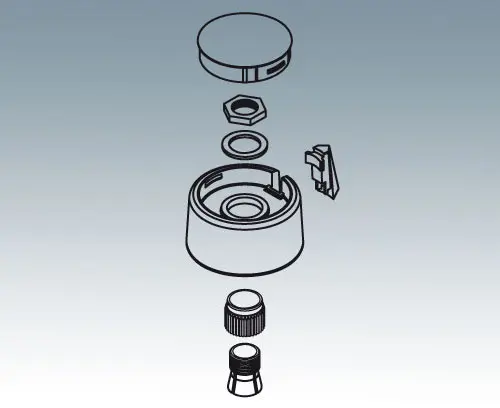

  • 经过验证的卡夹式夹头安装使操作安全
  • 前方按钮固定使安装舒适并达到固定于轴上的安全稳固性

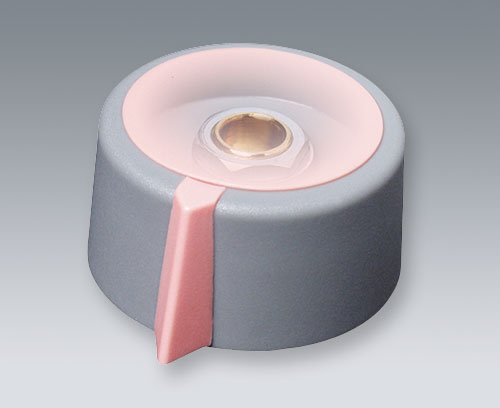

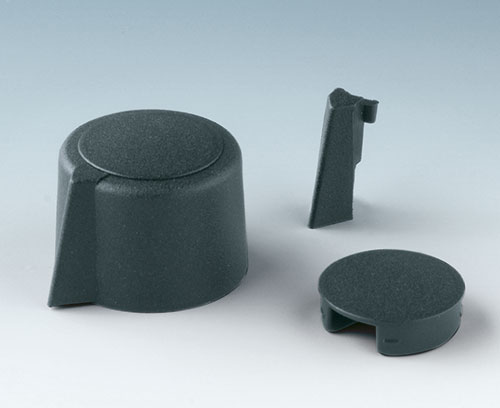

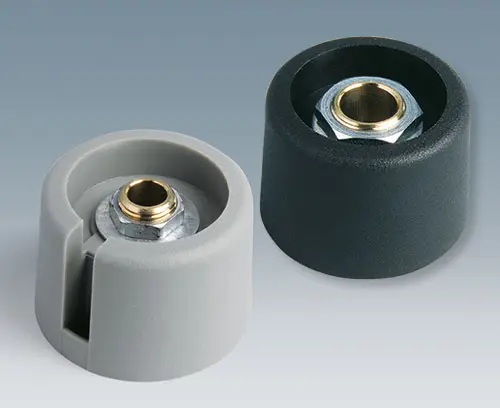

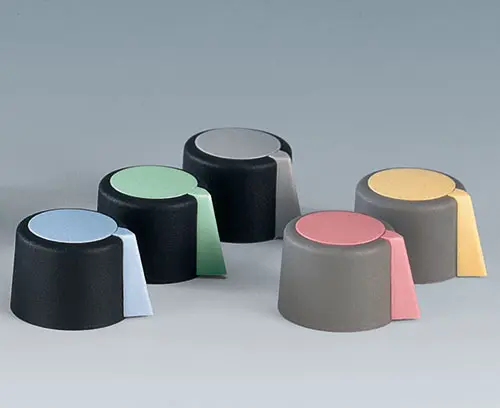

  • 带或不带标记部件均可采用

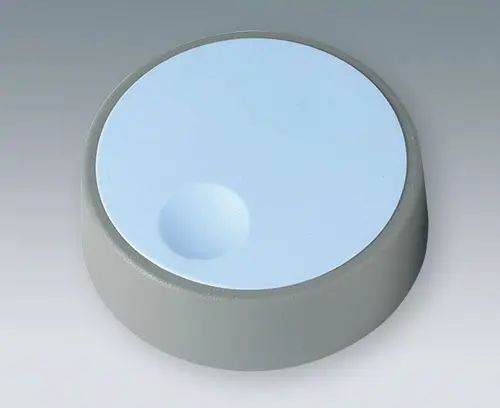

  • 从规格尺寸 40 起,钮盖可设置带或不带手指凹陷区以方便调控操作

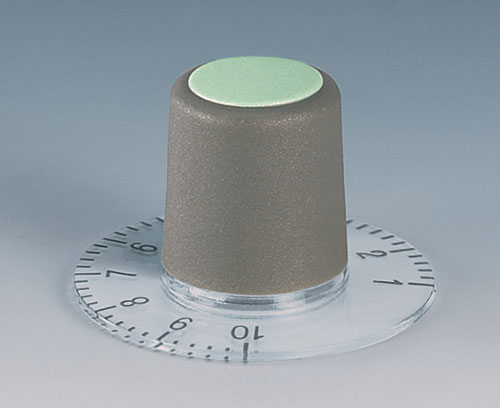

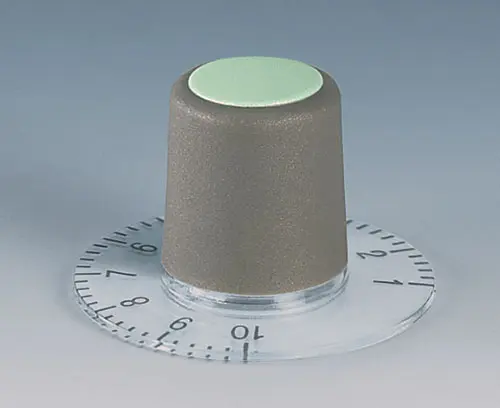

  • 可与覆盖盘、刻度盘、定子或螺母盖组合使用
  • 款式设计基于 TOP-KNOBS 特级旋钮系列; 在使用两个旋钮技术时,可以保证协调一致的外观形象

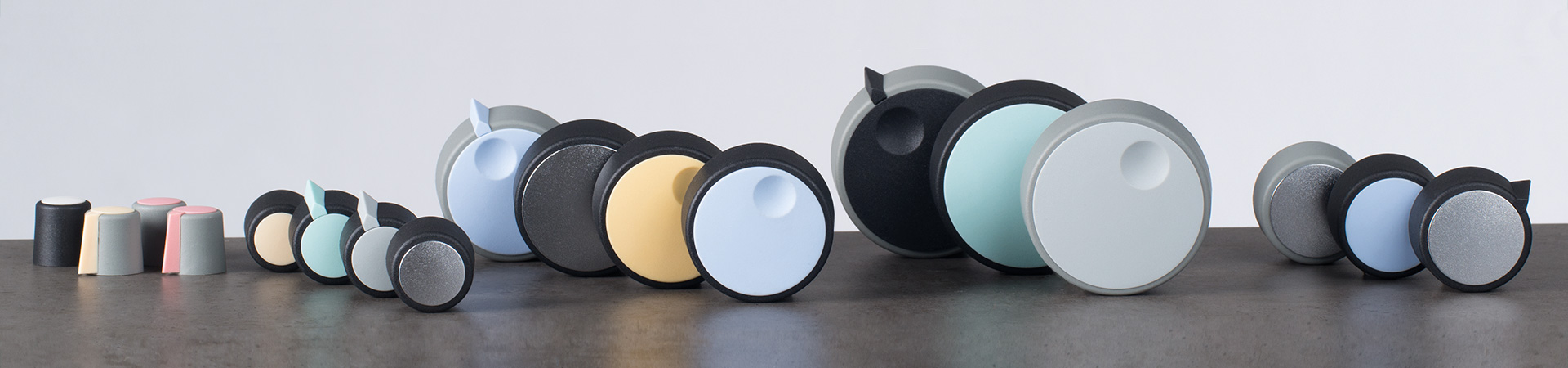

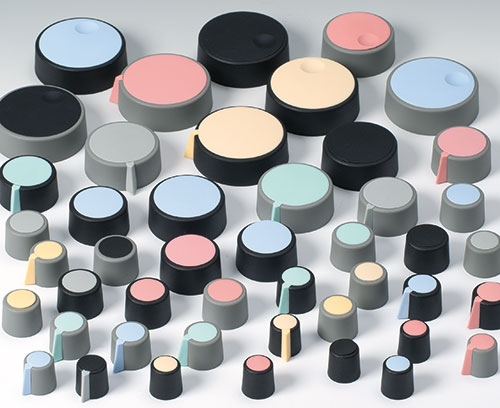

  • 柔和色调的现代色彩组合

旋钮尺寸规格 轴孔径规格
ø 16、20、23 mm 4 mm、6 mm、1/4"
ø 31 mm 6 mm、1/4"
ø 40、50 mm 6 mm、8 mm

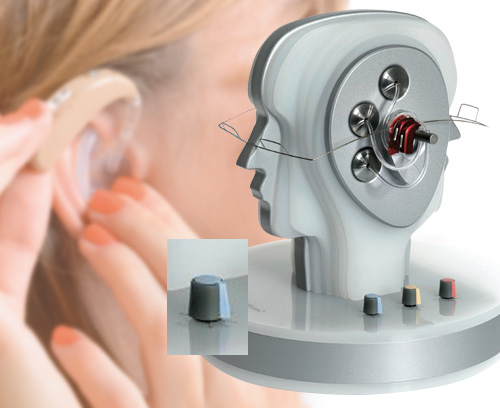

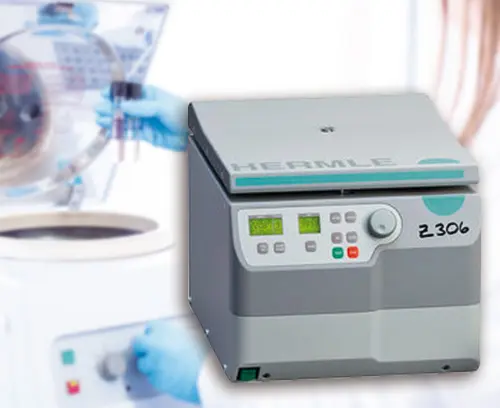

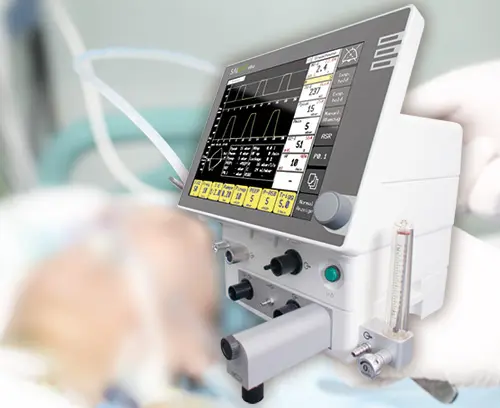

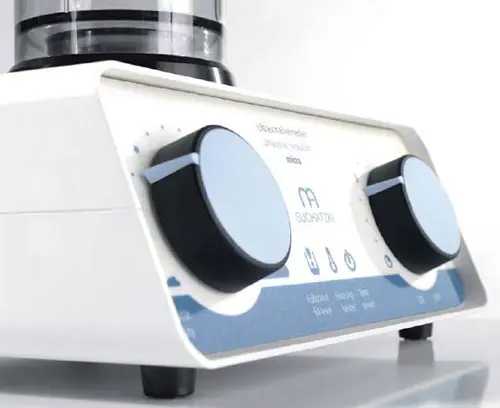

  • 应用示例

应用范围

适配符合 DIN 41591 标准的带圆轴端的旋转电位器。
  • 测量和控制技术
  • 医疗和实验室技术
  • 健康和医疗保健技术
  • 暖气和空调设施
  • 通信技术
  • 建筑领域
  • 类型
  • 配件
  • 按客户要求修改加工

请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。

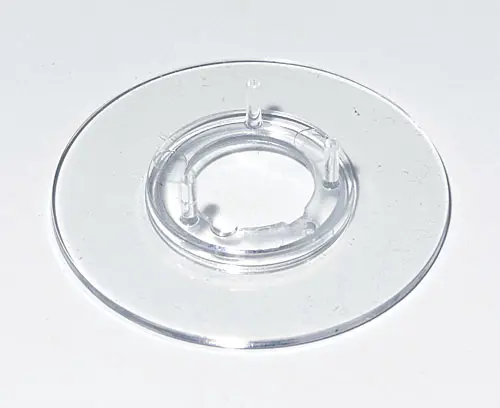

A4416001 Dial 16

A4416001

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright.

Supply 1 dial

关闭

A4416001

Dial 16
产品已添加到关注清单中
PC (UL 94 HB)
transparent
A4416010 Dial 16

A4416010

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416010

Dial 16
产品已添加到关注清单中
PC (UL 94 HB)
transparent

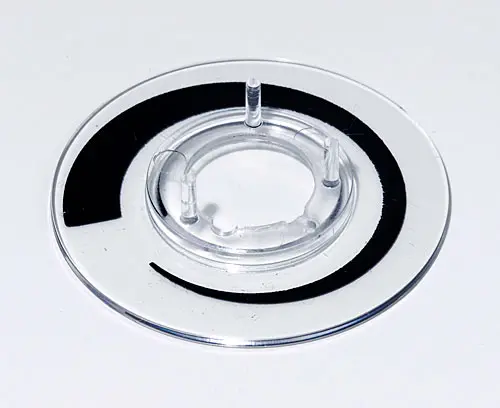

A4416020 Dial 16

A4416020

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416020

Dial 16
产品已添加到关注清单中
PC (UL 94 HB)
transparent

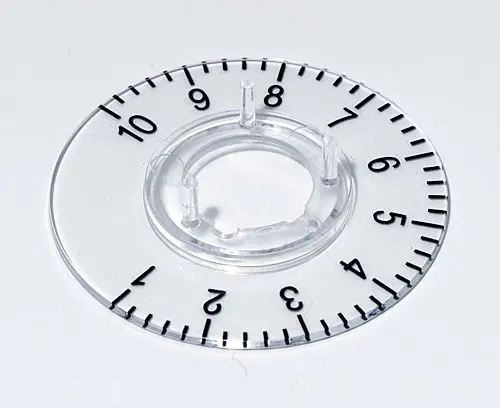

A4416060 Dial 16

A4416060

Dial 16 Dial simply to pin up for round and wing knob 16 / COM-KNOB 16. Surface bright. Black symbol.

Supply 1 dial

关闭

A4416060

Dial 16
产品已添加到关注清单中
PC (UL 94 HB)
transparent
A4420001 Dial 20

A4420001

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright.

Supply 1 dial

关闭

A4420001

Dial 20
产品已添加到关注清单中
PC (UL 94 HB)
transparent

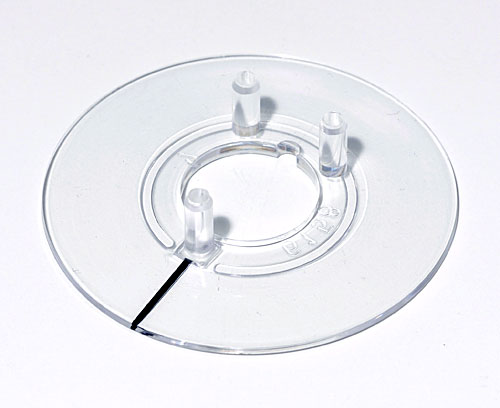

A4420010 Dial 20

A4420010

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

关闭

A4420010

Dial 20
产品已添加到关注清单中
PC (UL 94 HB)
transparent

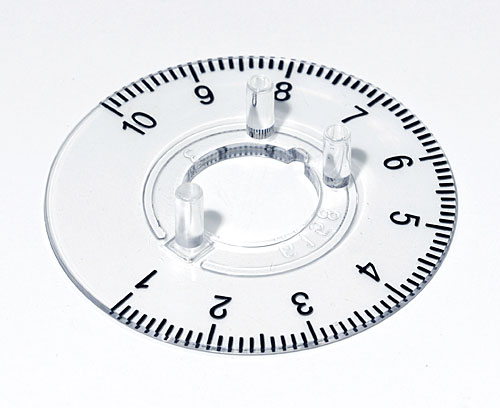

A4420060 Dial 20

A4420060

Dial 20 Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright. Black symbol.

Supply 1 dial

关闭

A4420060

Dial 20
产品已添加到关注清单中
PC (UL 94 HB)
transparent

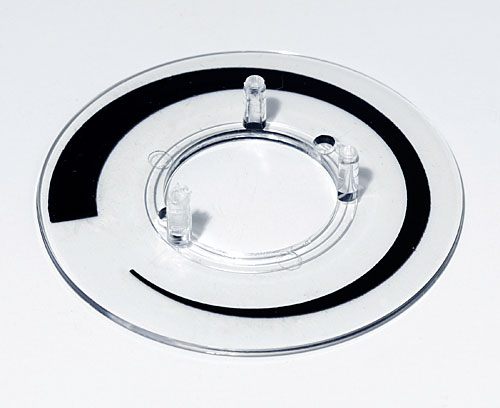

A4423020 Dial 23

A4423020

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright.

Version Black symbol.

Supply 1 dial

关闭

A4423020

Dial 23
产品已添加到关注清单中
PC (UL 94 HB)
transparent

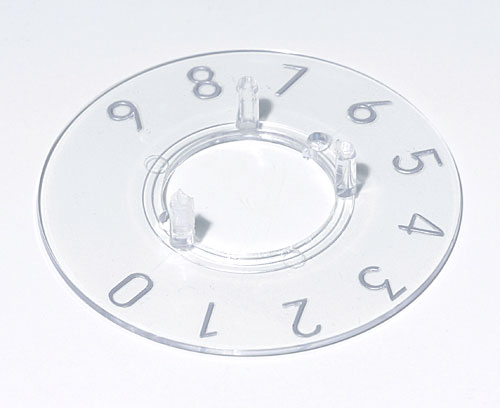

A4423039 Dial 23

A4423039

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Silver symbol.

Supply 1 dial

关闭

A4423039

Dial 23
产品已添加到关注清单中
PC (UL 94 HB)
transparent

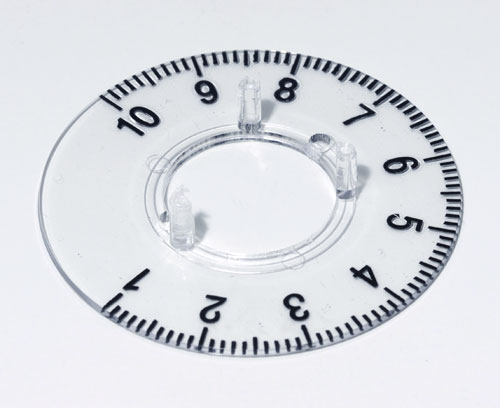

A4423060 Dial 23

A4423060

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

关闭

A4423060

Dial 23
产品已添加到关注清单中
PC (UL 94 HB)
transparent
A4431010 Dial 31

A4431010

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

关闭

A4431010

Dial 31
产品已添加到关注清单中
PC (UL 94 HB)
transparent
A4431060 Dial 31

A4431060

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

关闭

A4431060

Dial 31
产品已添加到关注清单中
PC (UL 94 HB)
transparent

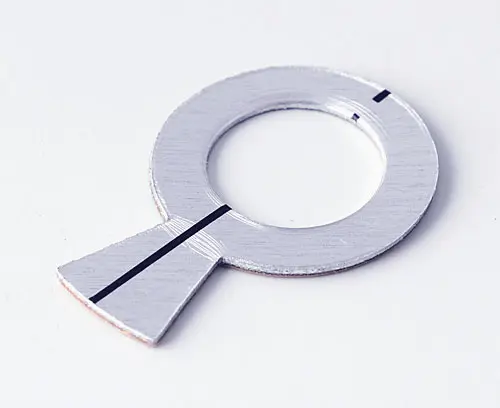

A6016019 Stator 16

A6016019

Stator 16 Suitable for round and wing knobs 16 / COM-KNOB 16. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6016019

Stator 16
产品已添加到关注清单中
Aluminium
A6020019 Stator 20

A6020019

Stator 20 Suitable for round and wing knobs 20 / COM-KNOB 20. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6020019

Stator 20
产品已添加到关注清单中
Aluminium

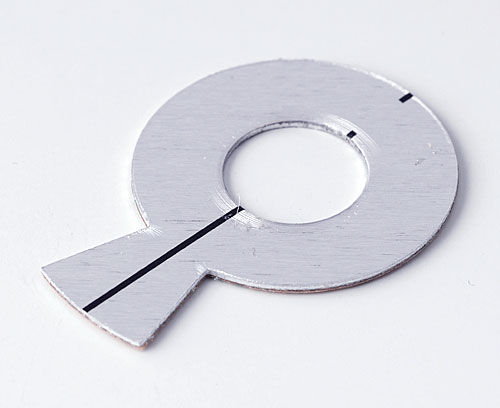

A6023019 Stator 23

A6023019

Stator 23 Suitable for round knobs 23 / COM-KNOB 23. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

关闭

A6023019

Stator 23
产品已添加到关注清单中
Aluminium
A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
产品已添加到关注清单中
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
产品已添加到关注清单中
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
产品已添加到关注清单中
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

关闭

A6300000

Spanner
产品已添加到关注清单中

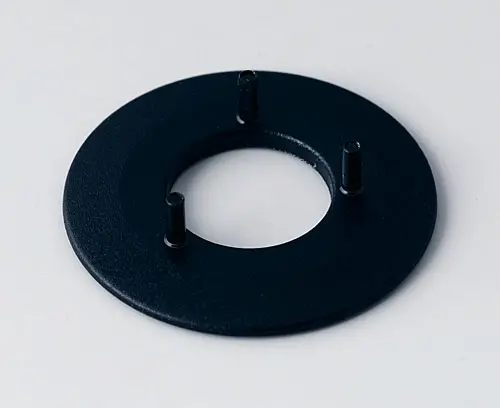

A7316000 Disk 16, without line

A7316000

Disk 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up.

Supply 1 disk

关闭

A7316000

Disk 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

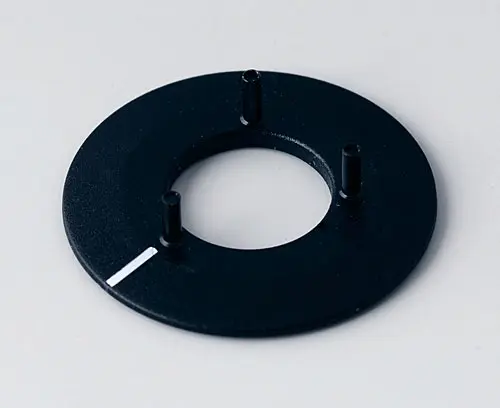

A7316010 Disk 16, with line

A7316010

Disk 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7316010

Disk 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7323010 Disk 23, with line

A7323010

Disk 23, with line Suitable for round knob 23 / COM-KNOB 23. Disk simply to pin up. Black marking.

Supply 1 disk

关闭

A7323010

Disk 23, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7331000 Disk 31, without line

A7331000

Disk 31, without line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up.

Supply 1 disk

关闭

A7331000

Disk 31, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7331010 Disk 31, with line

A7331010

Disk 31, with line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7331010

Disk 31, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

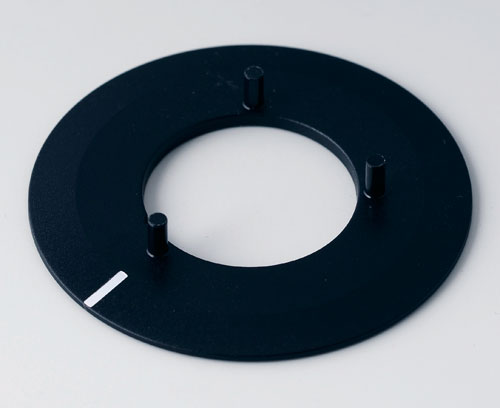

A7340010 Disk 40, with line

A7340010

Disk 40, with line Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply 1 disk

关闭

A7340010

Disk 40, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

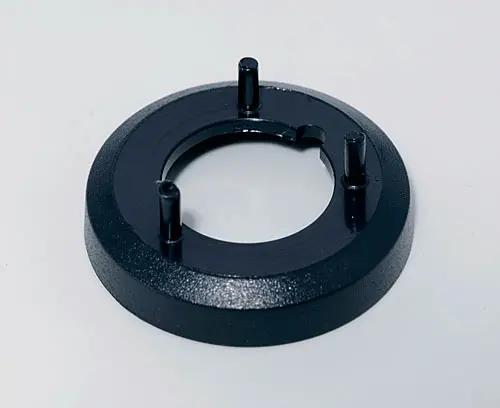

A7516000 Nut cover 16, without line

A7516000

Nut cover 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Supply 1 nut cover

关闭

A7516000

Nut cover 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

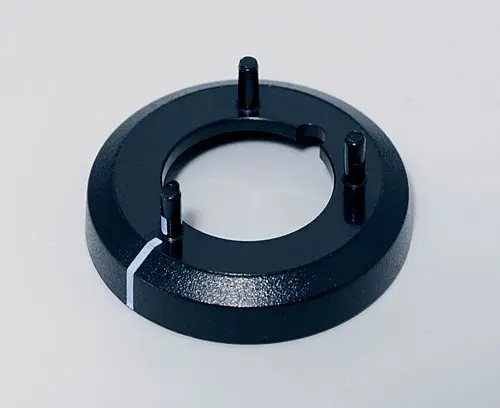

A7516010 Nut cover 16, with line

A7516010

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version White marking.

Supply 1 nut cover

关闭

A7516010

Nut cover 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005

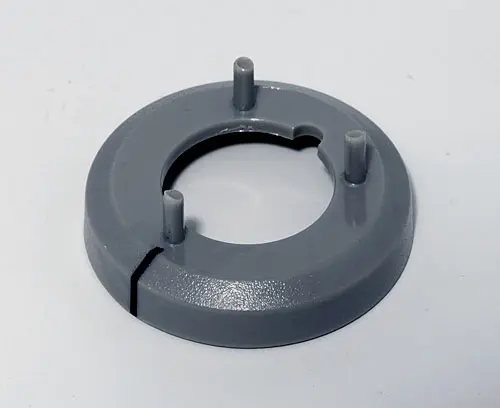

A7516018 Nut cover 16, with line

A7516018

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version Black marking.

Supply 1 nut cover

关闭

A7516018

Nut cover 16, with line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037

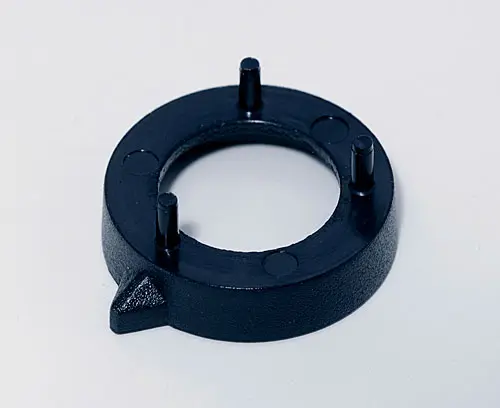

A7616000 Nut cover 16, without line

A7616000

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

关闭

A7616000

Nut cover 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A7616008 Nut cover 16, without line

A7616008

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

关闭

A7616008

Nut cover 16, without line
产品已添加到关注清单中
ABS (UL 94 HB)
dusty grey RAL 7037

产品类型用于 Com-Knobs 通讯旋钮

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
