B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08

Male terminal block, 5.08. 6-pin.

Supply

1 piece

  • 应用于

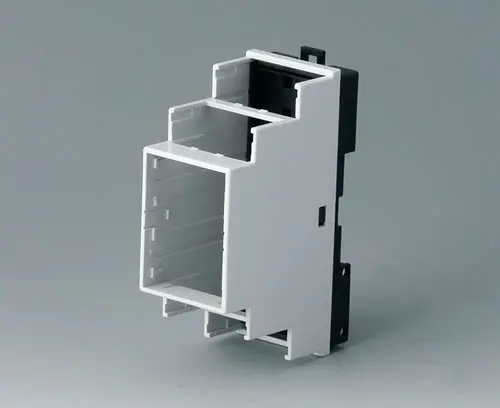

B6501121 RAILTEC B, 2 modules, Vers. VI

B6501121

RAILTEC B, 2 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

关闭

B6501121

RAILTEC B, 2 modules, Vers. VI
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
35x90x58mm

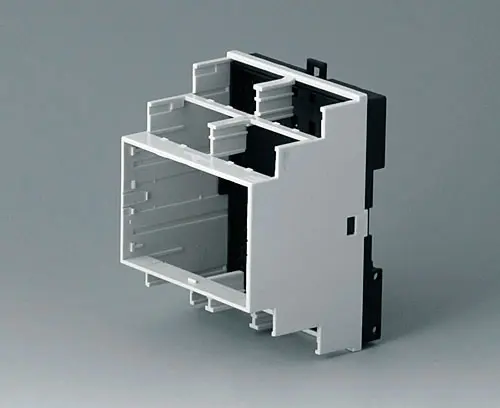

B6503121 RAILTEC B, 4 modules, Vers. VI

B6503121

RAILTEC B, 4 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

关闭

B6503121

RAILTEC B, 4 modules, Vers. VI
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
70x90x58mm
B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version with closed side panels

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

关闭

B6522101

RAILTEC BP, M22, with closed side panels
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

RAILTEC BP, M22, closed/with ventilation slots DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 1 side panel closed, 1 side panel with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

关闭

B6522102

RAILTEC BP, M22, closed/with ventilation slots
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 2 side panels with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

关闭

B6522103

RAILTEC BP, M22, with ventilation slots
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
95x23x113mm
  • 技术数据
  • 图纸或资料
  • 采购有关数据
Pitch
5.08 mm
Poles
6
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
