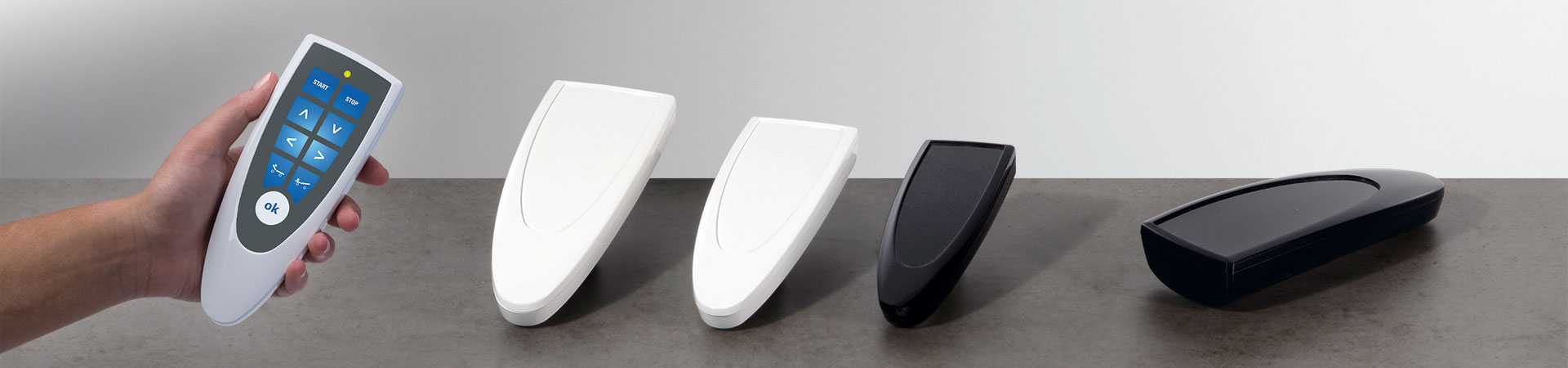

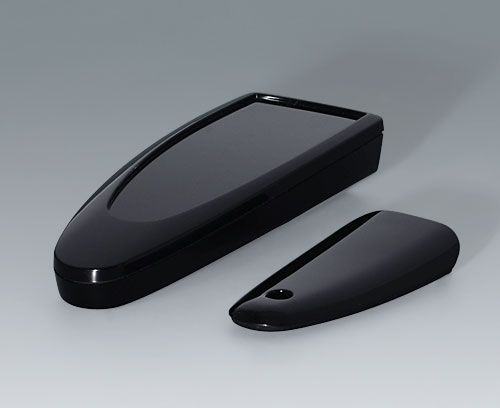

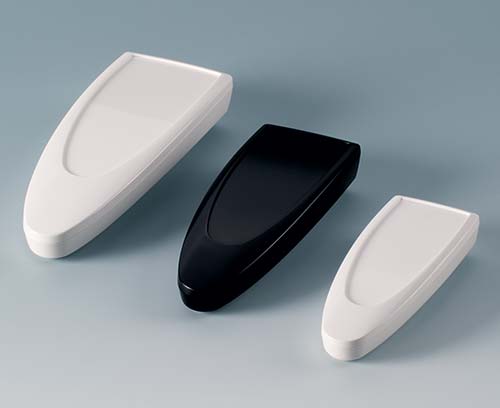

Style-Case 精光盒

符合人体工程学的光亮手持盒

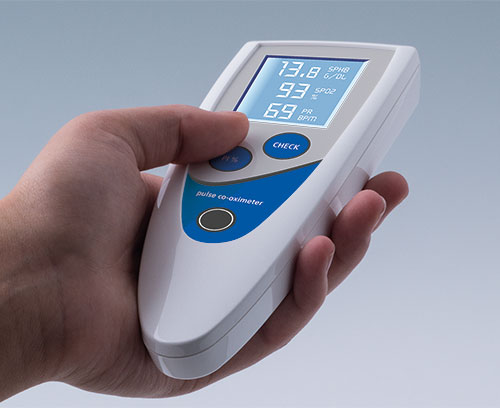

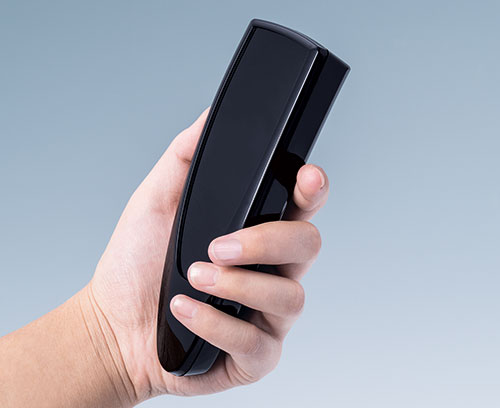

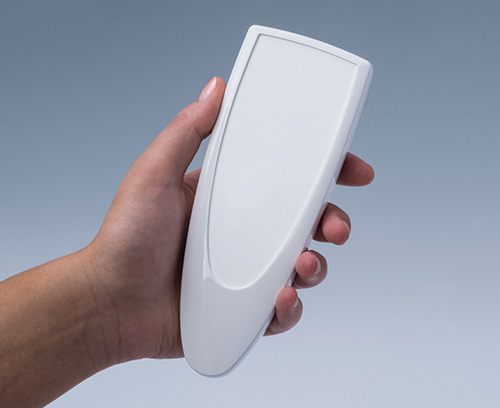

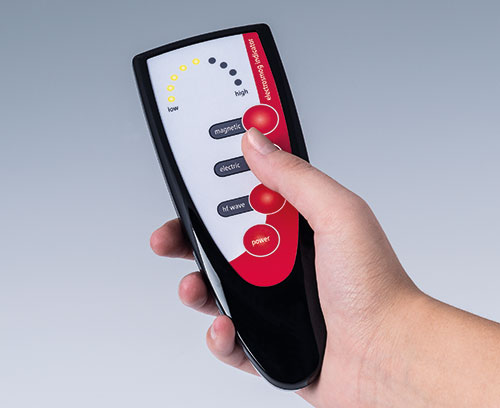

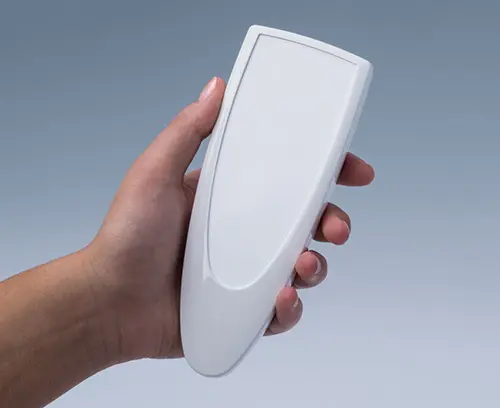

OKW 显示出的 STYLE-CASE 精光盒具有高精度抛光的表面，从而为现代手持盒的设计款式提供一个额外的设计亮点。通过良好的触感性使手持盒成为具备优雅外观，佩戴舒适和使用安全的手抚摸器。

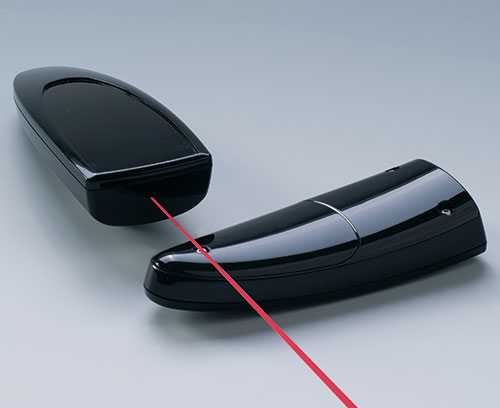

  • 具有高度防紫外线的 ASA 材质或可透红外线的 PMMA （有机玻璃）材质
  • 易清洁的光泽表面
  • 坚固和防水性达 IP 65，密封组件作为附件
  • Torx 梅花头不锈钢螺钉固定

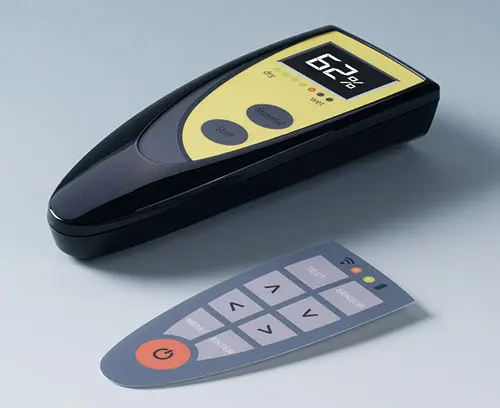

  • 操作区域凹陷，以保护膜键盘和装饰膜

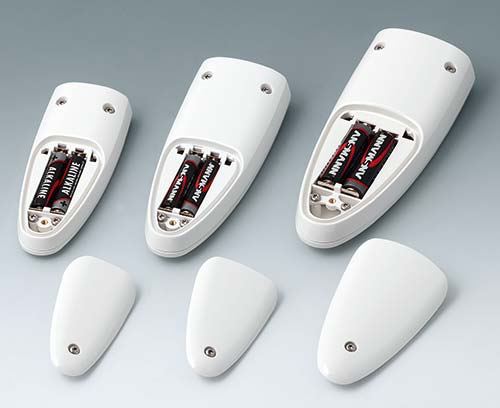

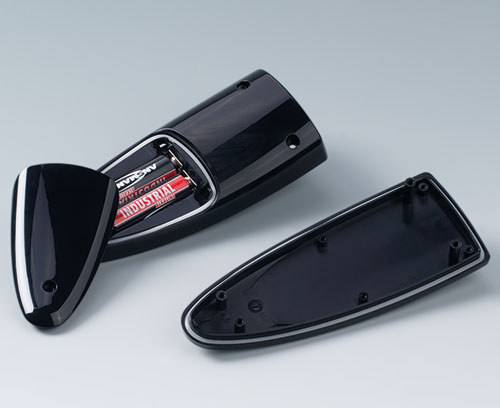

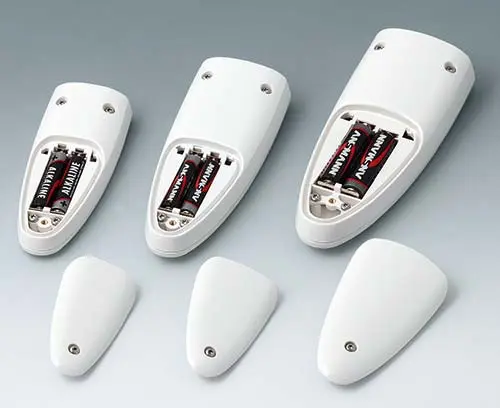

  • 集成电池隔室: 适配 2 个 1,5 V AAA 电池 (S, M) 和 2 个 1,5 V AA 电池 (L)，接触弹簧组件作为附件

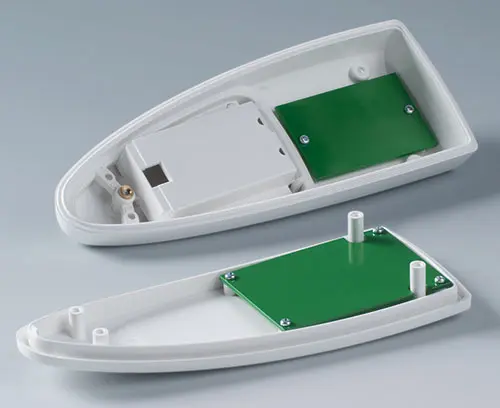

  • 固定柱用于固定电路板和元器件，电路板固定用自攻螺钉作为附件
PDF 导出
  • 录像
  • 应用示例

应用范围

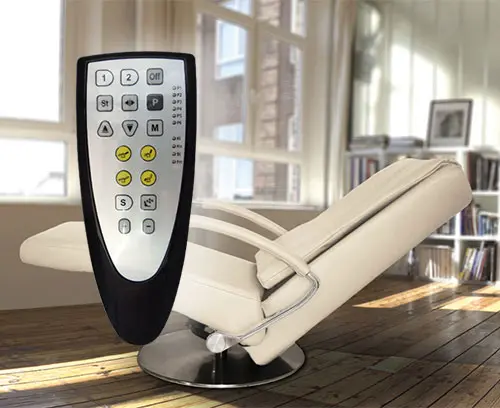

  • 特别适配强调款式设计的多种遥控器
  • 特别是在医院和公共场所以及在家庭和工业领域
  • 选择所有项目
  • 配件
  • 按客户要求修改加工

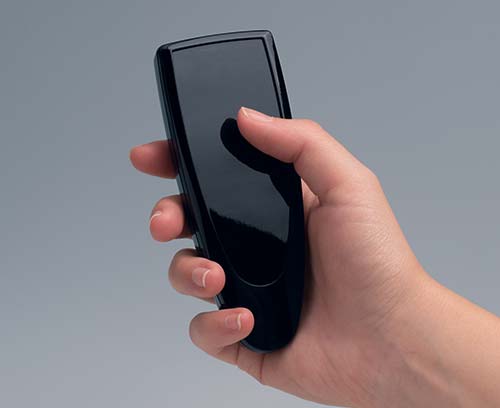

B2802016 STYLE-CASE S

B2802016

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2802016

STYLE-CASE S
产品已添加到关注清单中
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40

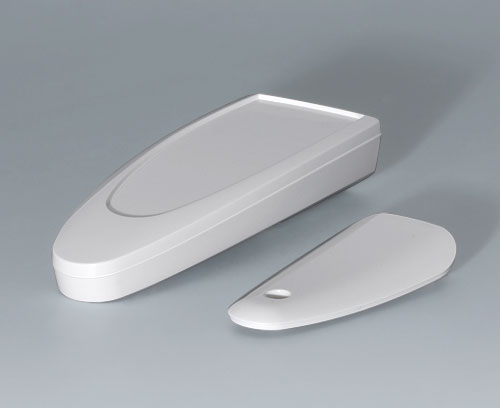

B2802017 STYLE-CASE S

B2802017

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2802017

STYLE-CASE S
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
123x48x24mm
IP 40

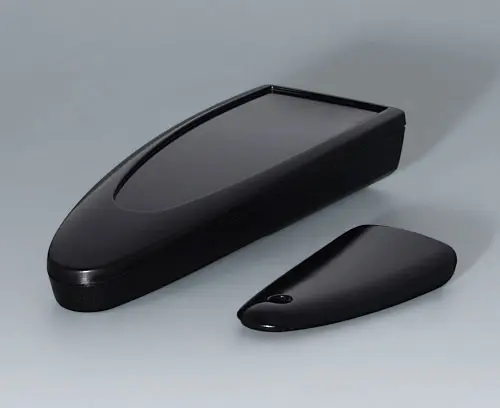

B2803016 STYLE-CASE M

B2803016

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2803016

STYLE-CASE M
产品已添加到关注清单中
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40

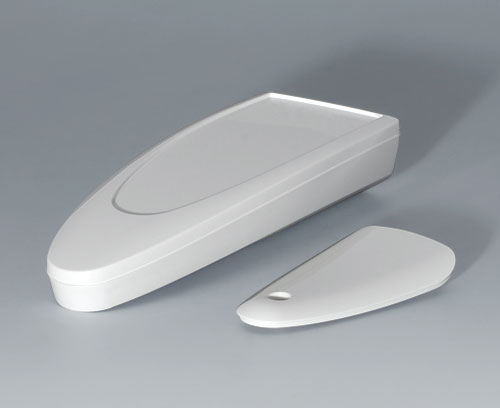

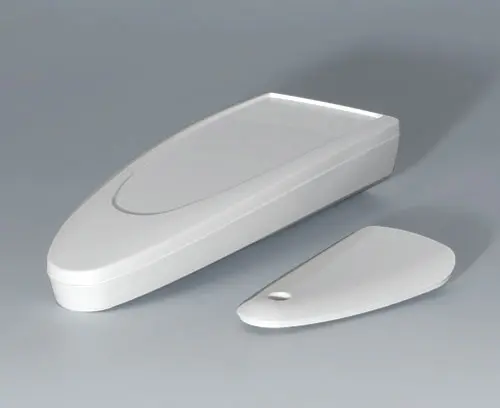

B2803017 STYLE-CASE M

B2803017

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2803017

STYLE-CASE M
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
147x56x27mm
IP 65 opt., IP 40

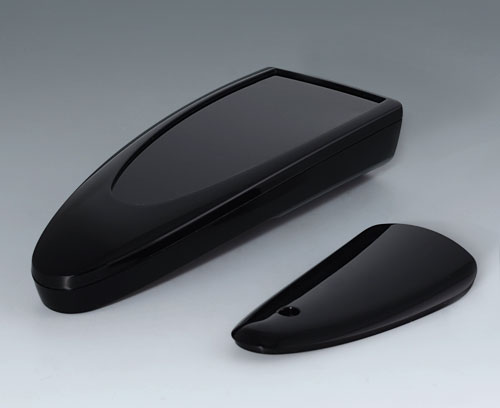

B2804016 STYLE-CASE L

B2804016

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2804016

STYLE-CASE L
产品已添加到关注清单中
PMMA (IR) (UL 94 HB)
black RAL 9005
166x64x31mm
IP 65 opt., IP 40

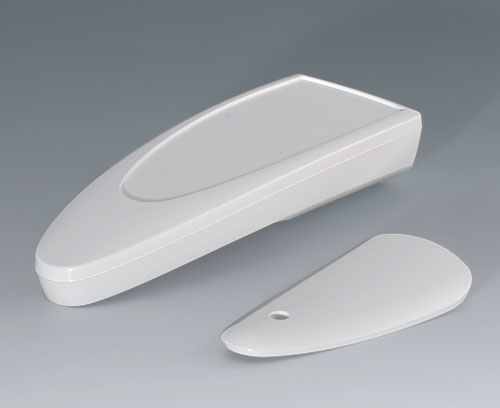

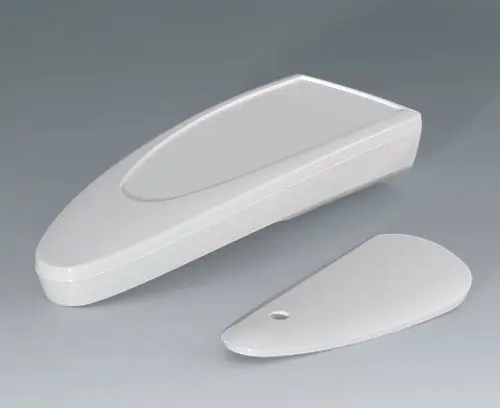

B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2804017

STYLE-CASE L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40

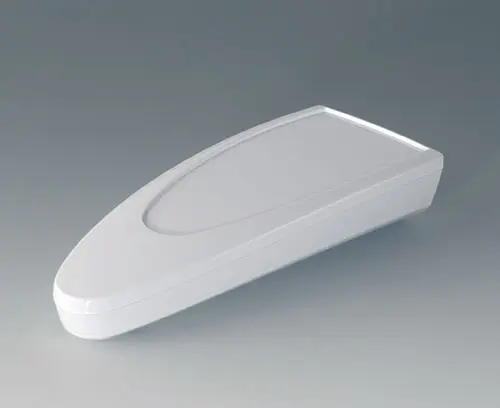

B2804027 STYLE-CASE L

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

关闭

B2804027

STYLE-CASE L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
产品已添加到关注清单中
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
产品已添加到关注清单中

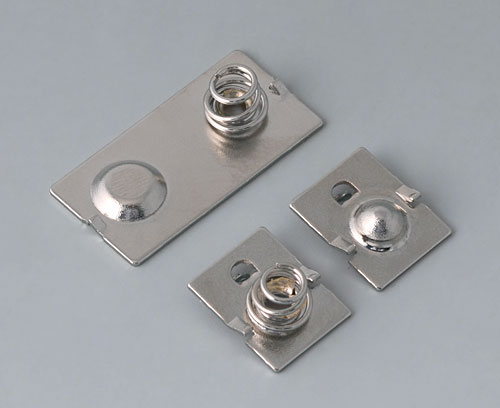

A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

关闭

A9190020

Set of battery clips
产品已添加到关注清单中
Steel
nickel-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

关闭

A9199005

Strain relief
产品已添加到关注清单中
PA 6
volcano

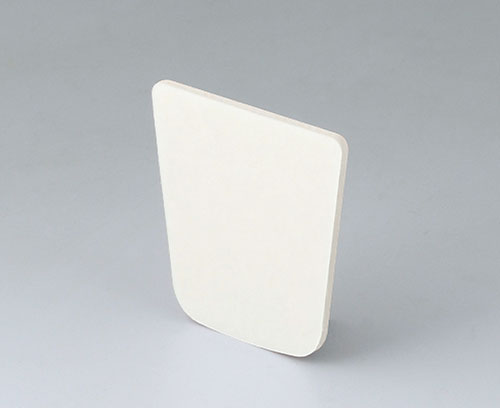

B2902031 Adhesive foil S

B2902031

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

B2902031

Adhesive foil S
产品已添加到关注清单中

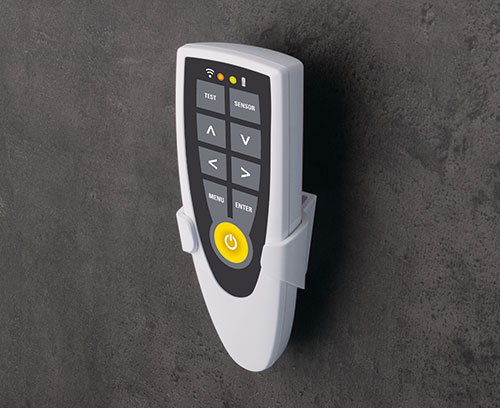

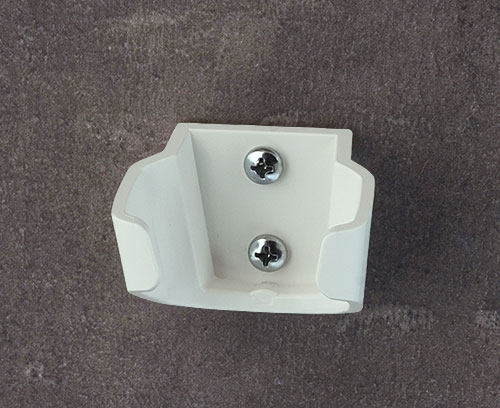

B2902037 Holder S

B2902037

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2902037

Holder S
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016

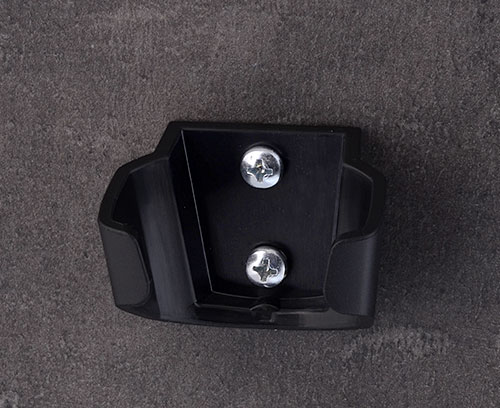

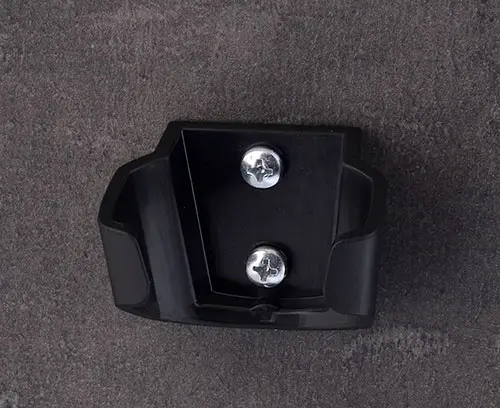

B2902039 Holder S

B2902039

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2902039

Holder S
产品已添加到关注清单中
ASA (UL 94 HB)
black RAL 9005

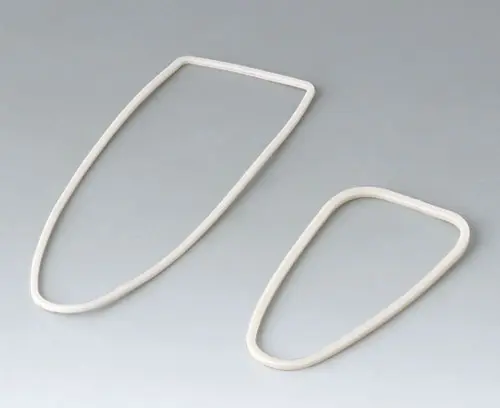

B2902111 Sealing kit S

B2902111

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.

Supply 2 sealings kit (enclosure, battery compartment)

关闭

B2902111

Sealing kit S
产品已添加到关注清单中
TPV 50A

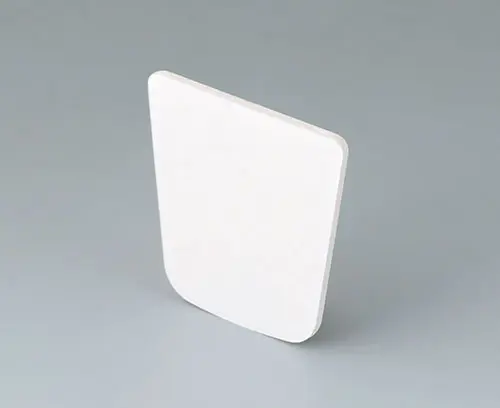

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

B2903031

Adhesive foil M
产品已添加到关注清单中

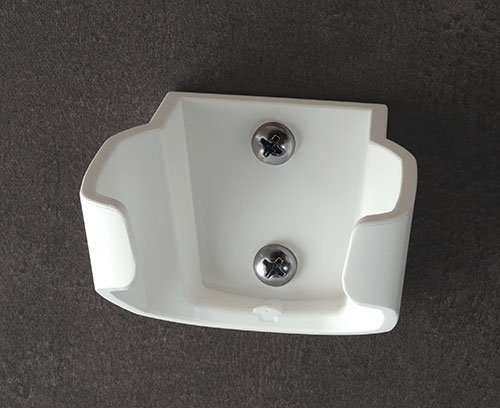

B2903037 Holder M

B2903037

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2903037

Holder M
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016

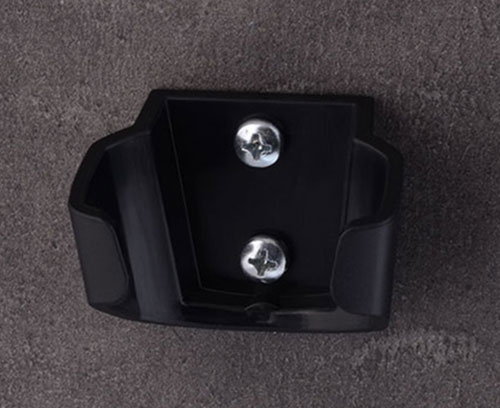

B2903039 Holder M

B2903039

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2903039

Holder M
产品已添加到关注清单中
ASA (UL 94 HB)
black RAL 9005

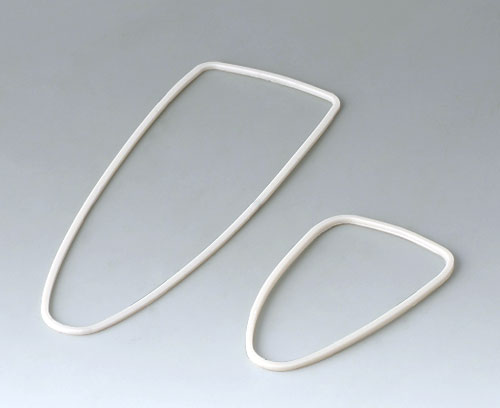

B2903111 Sealing kit M

B2903111

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

关闭

B2903111

Sealing kit M
产品已添加到关注清单中
TPV 50A

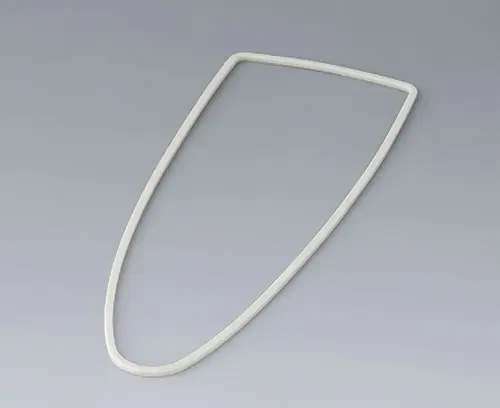

B2904011 Sealing L

B2904011

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

关闭

B2904011

Sealing L
产品已添加到关注清单中
TPV 50A

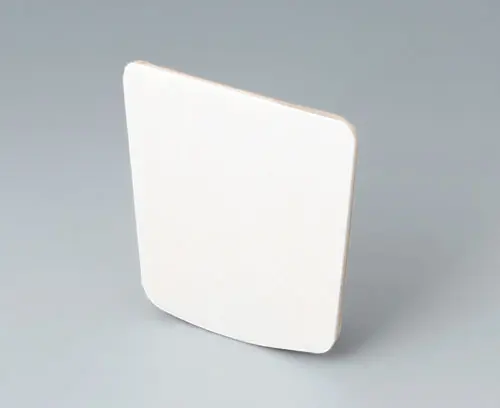

B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

B2904031

Adhesive foil L
产品已添加到关注清单中

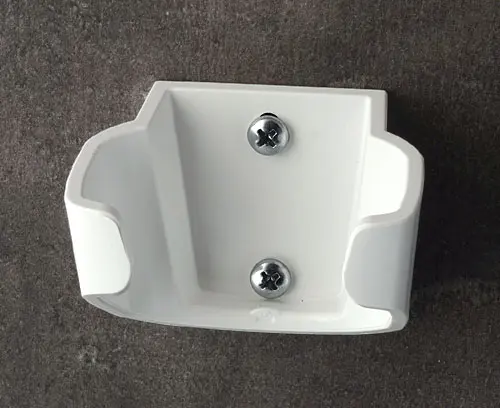

B2904037 Holder L

B2904037

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2904037

Holder L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016

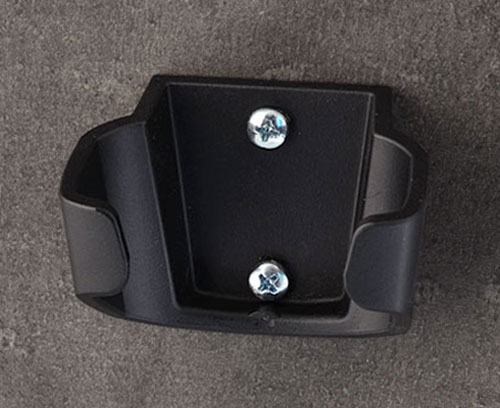

B2904039 Holder L

B2904039

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

关闭

B2904039

Holder L
产品已添加到关注清单中
ASA (UL 94 HB)
black RAL 9005

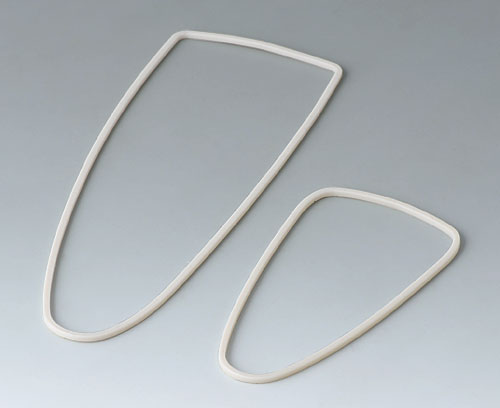

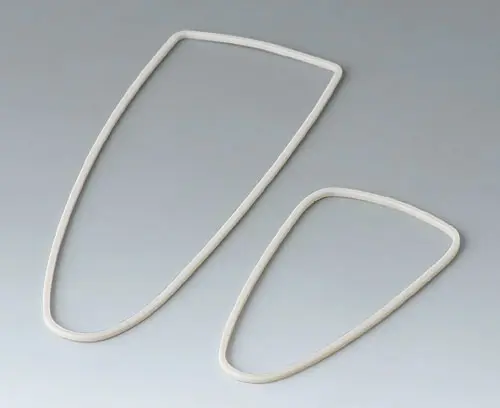

B2904111 Sealing kit L

B2904111

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.

Supply 2 sealings kit (enclosure, battery compartment)

关闭

B2904111

Sealing kit L
产品已添加到关注清单中
TPV 50A

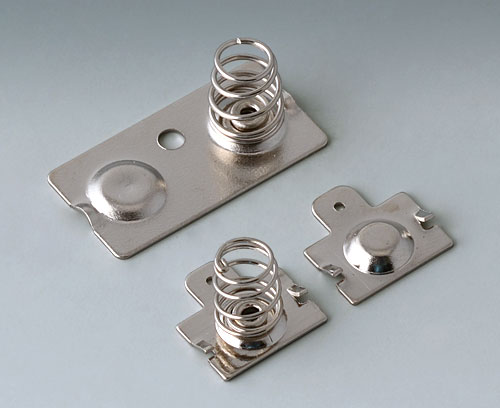

B2904210 Set of battery clips

B2904210

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

关闭

B2904210

Set of battery clips
产品已添加到关注清单中
Steel
nickel-plated

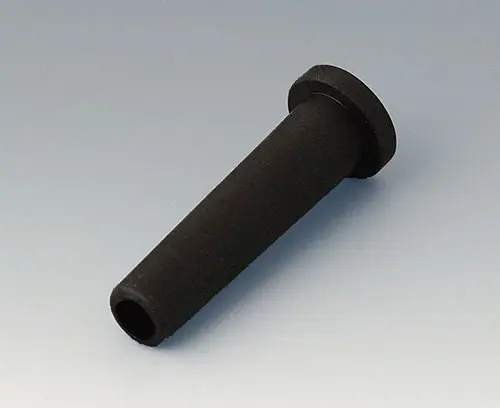

C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

关闭

C2353849

Flexible cable grommet Ø 5,3
产品已添加到关注清单中
black

产品类型用于 Style-Case 精光盒

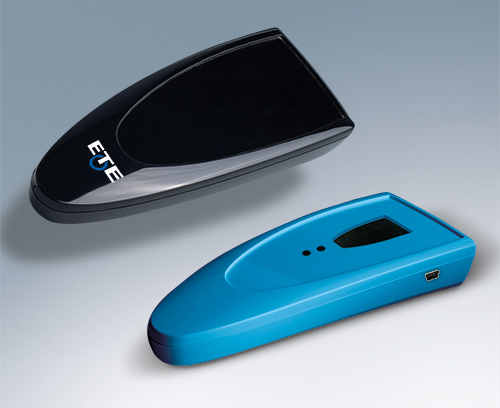

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
