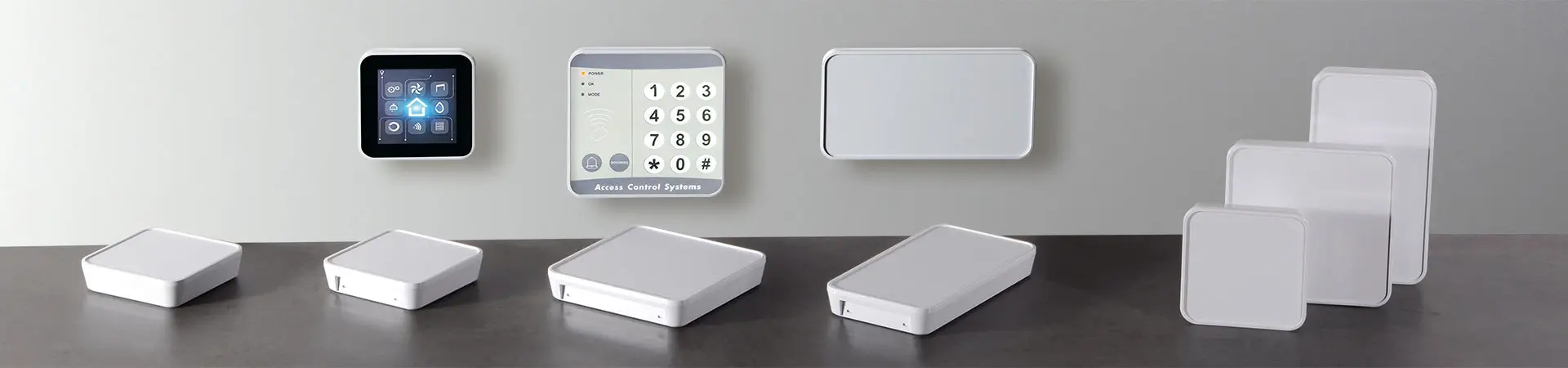

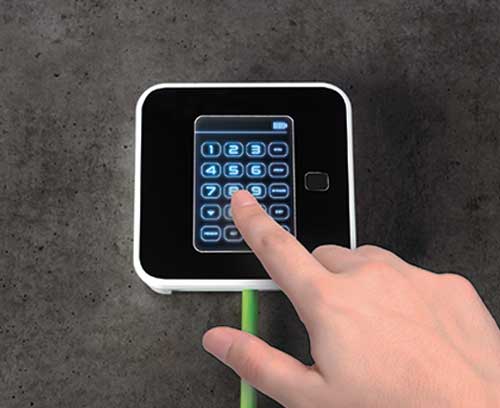

Smart-Panel 智能板盒

优雅的墙体机盒，适用于现代控制中心

为方便整体建筑的控制和监控，相应智能系统可以集成到 SMART PANEL 智能板机盒系列中。其优雅的外观与现代住宅、商业建筑和工业环境完美融合。

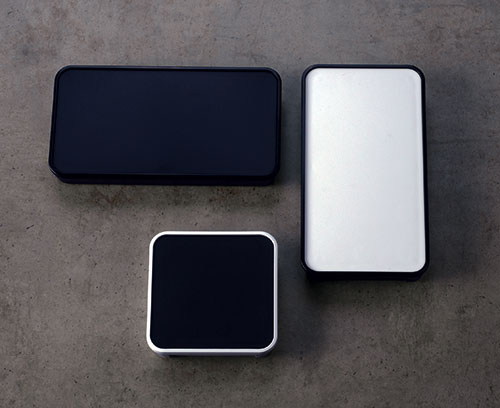

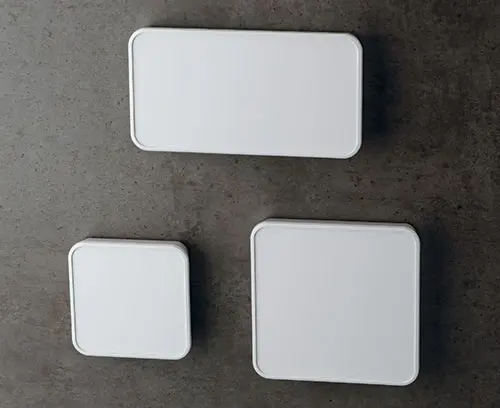

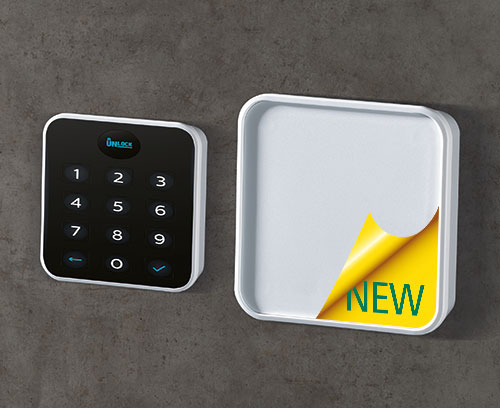

  • 纤薄式机盒设计款式，提供 3 种尺寸规格： 方形   状84 x 84 mm 和 114 x 114 mm ，以及矩形状 155 x 84  mm

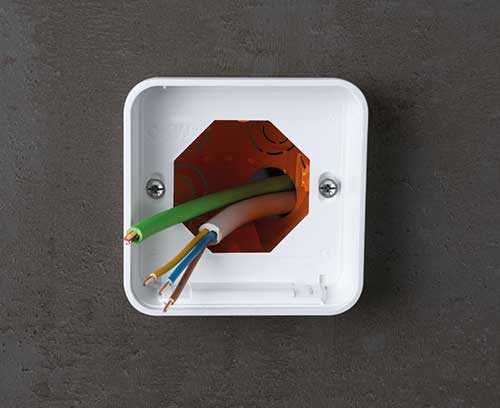

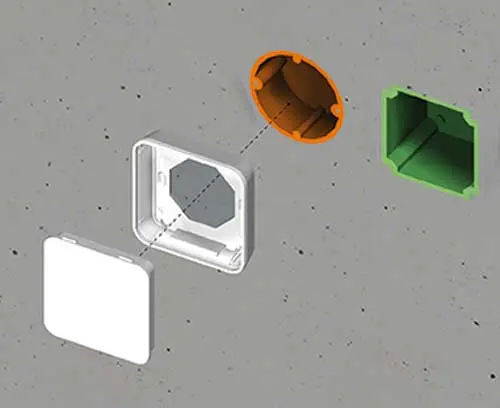

  • 适合安装在普通的暗装式接线盒上面和空腔墙壁底盒上面，
    S84或E155 规格：适配的底盒的最大安装开口为61 mm ，或适配安装在双底盒上和更大的国际标准底盒上，至最大高度 150 mm 及宽度至 61 mm
    S114 规格：适配安装在较大的标准底盒上，最大高度至 100 mm  宽度至 100  mm
  • 令人兴奋的美观表面 - 下盒进行了高光抛光，上盒具备精细的表面结构
  • 高质量的 V-0 材料 ASA + PC-FR，普通白色（RAL 9016）

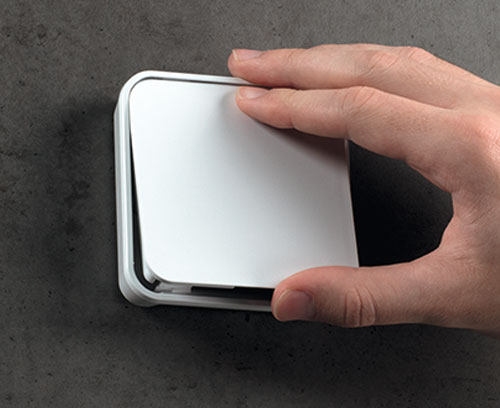

  • 具备卡固锁定功能的高效无螺丝机盒安装设置，为后续的现场连接工作带来显注优势。

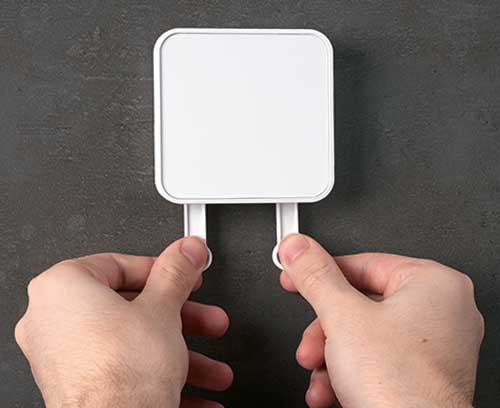

  • 带用于 USB、微型 USB 连接器等的平坦凹陷区域，以及专用于开盒的解锁装置（在附件中成对配置）

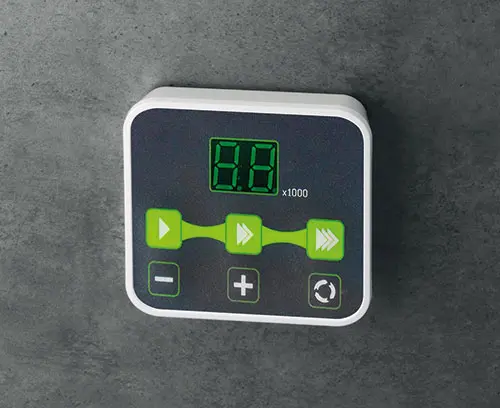

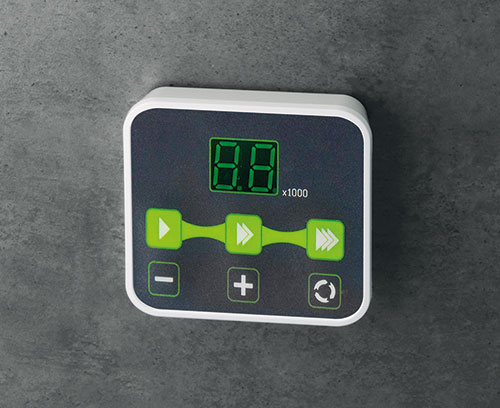

  • 嵌入式控制操作面板以保护薄膜键盘、显示和控制元件、触摸显示屏等。

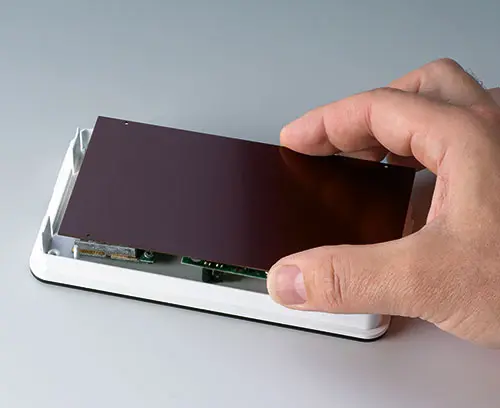

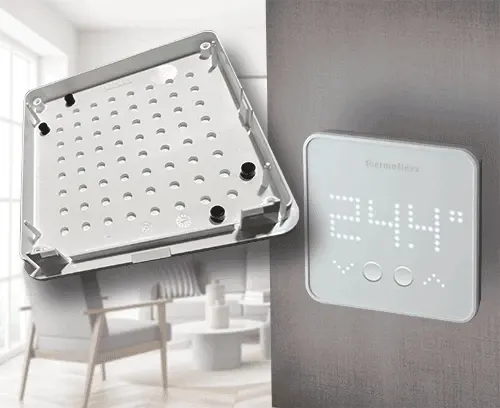

  • 上盒内置零部件的装配。 建议利用可插拔酚醛树脂硬纸板，作为附件（根据要求可提供的规格尺寸为 S114 - 最少订购数量为 100 片）以在必要时可保护底部电子元器件，以其在组装和维修过程中免受损坏。

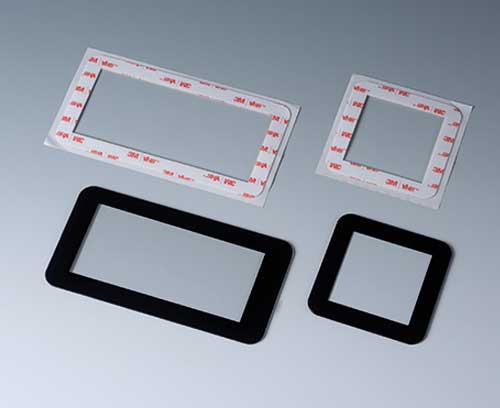

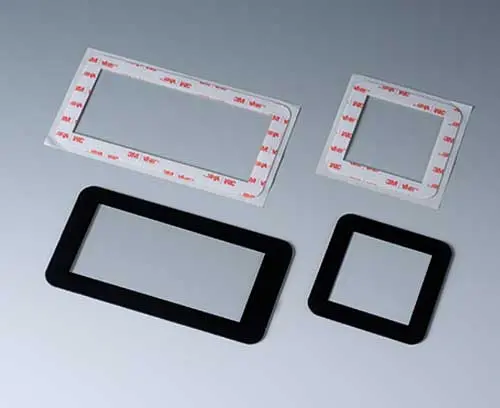

  • 适合高挡应用的玻璃面板，包含在附件系列中（根据要求可提供规格尺寸 S114，最少订购数量为 100 块），例如在使用显示屏等情况时，并可根据要求在背面进行图案打印。

款形设计师描述说明

“该板盒令人印象深刻！
其大方永恒的设计可以完全满足现代化住宅和生活的高要求。 面板上盒，即机盒的脸面，是设计的精点，仅仅微窄的外框戏绕着操作面板，机盒底座后置隐蔽。
光泽表面和精细构纹等不同表面的相互作用、塑料和玻璃材质的选择、设计款形的优雅和精确等将使您产品的质量成为众人瞩目的焦点。 并且其产品可以快速、安全和隐蔽地进行安装，没有任何迹象显示这个机盒是如何安装在墙上的，即没有固定点，也没有接逢。”
Martin Nußberger 先生说，polyform Industrie Design 公司

PDF 导出
  • 录像
  • 应用示例

应用范围

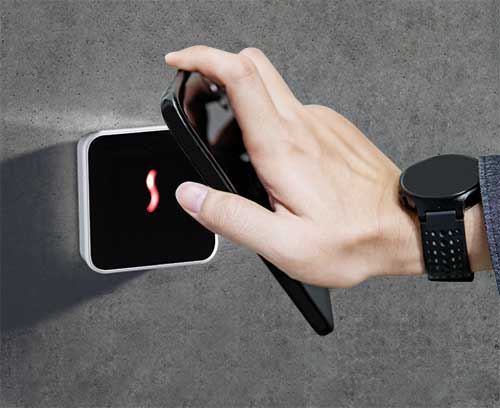

室内固定式电子应用的理想选择：

  • 建筑工程
  • 智能家居
  • IoT / IIoT物联网
  • 办公室
  • 无线通信
  • 测控工程
  • 实验室和医疗技术、医疗保健
  • 保安技术
  • 选择所有项目
  • 配件
  • 按客户要求修改加工
C6402107 SMART-PANEL S84

C6402107

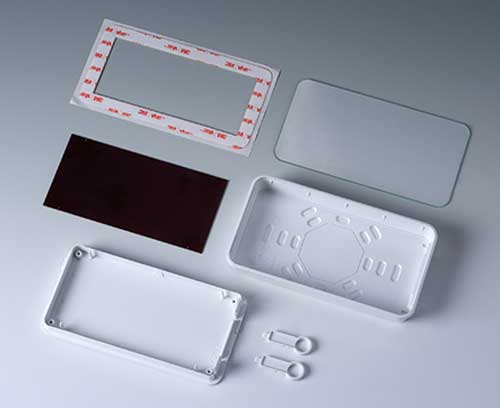

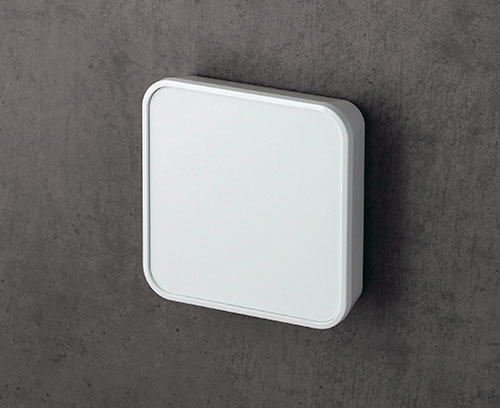

SMART-PANEL S84 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6402107

SMART-PANEL S84
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
84x84x21.3mm
IP 40
C6404107 SMART-PANEL S114

C6404107

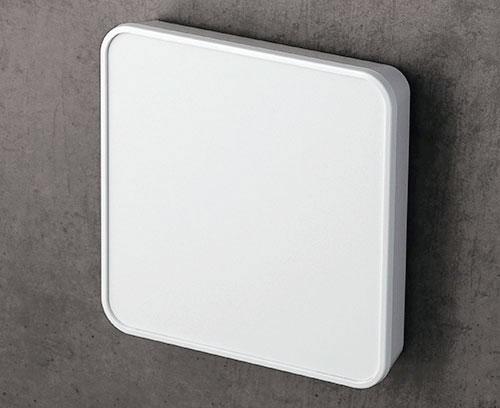

SMART-PANEL S114 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6404107

SMART-PANEL S114
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
114x114x21.3mm
IP 40
C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

关闭

C6406107

SMART-PANEL E155
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
155x84x21.3mm
IP 40
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
产品已添加到关注清单中
Stainless steel

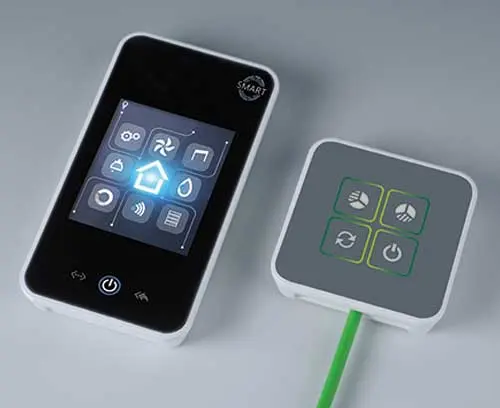

A9210180 Anti-slide feet 10,1 x 1.8 mm

A9210180

Anti-slide feet 10,1 x 1.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9210180

Anti-slide feet 10,1 x 1.8 mm
产品已添加到关注清单中
transparent
C6502010 Opening tool set

C6502010

Opening tool set Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply 2 opening tools

关闭

C6502010

Opening tool set
产品已添加到关注清单中
ASA+PC (UL 94 V-0)
traffic white RAL 9016
C6502011 Hardboard protection plate S84

C6502011

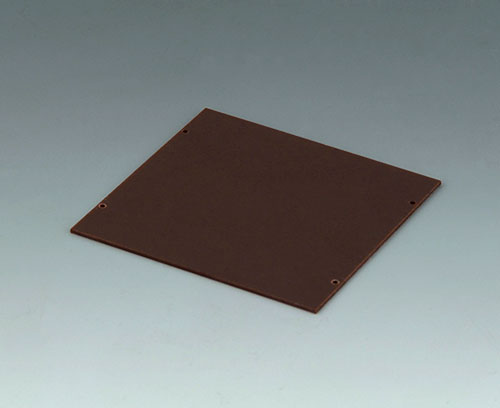

Hardboard protection plate S84 The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities.

Supply 1 hardboard plate

关闭

C6502011

Hardboard protection plate S84
产品已添加到关注清单中
65x67x1mm
C6502012 Adhesive foil S84

C6502012

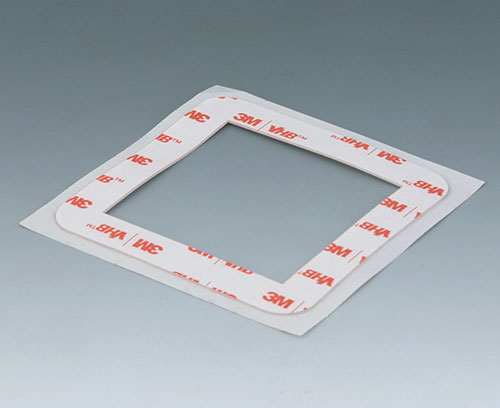

Adhesive foil S84 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

关闭

C6502012

Adhesive foil S84
产品已添加到关注清单中
C6502013 Glass panel S84

C6502013

Glass panel S84 Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply 1 glass panel, chemically hardened

关闭

C6502013

Glass panel S84
产品已添加到关注清单中
Glass
clear
78.75x78.75x1.6mm
C6506011 Hardboard plate E155

C6506011

Hardboard plate E155 The phenolic resin hardboard protection plate is located on pillars in the top panel and, if necessary, can be hot-caulked or glued in place. The plate protects the underlying electronics from damage during installation and subsequent service activities..

Supply 1 hardboard plate

关闭

C6506011

Hardboard plate E155
产品已添加到关注清单中
136x67x1mm
C6506012 Adhesive foil E155

C6506012

Adhesive foil E155 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

关闭

C6506012

Adhesive foil E155
产品已添加到关注清单中
C6506013 Glass panel E155

C6506013

Glass panel E155 Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply 1 glass panel, chemically hardened

关闭

C6506013

Glass panel E155
产品已添加到关注清单中
Glass
clear
149.75x78.75x1.6mm

产品类型用于 Smart-Panel 智能板盒

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
