A9305017 Wall suspension elements

A9305017

Wall suspension elements

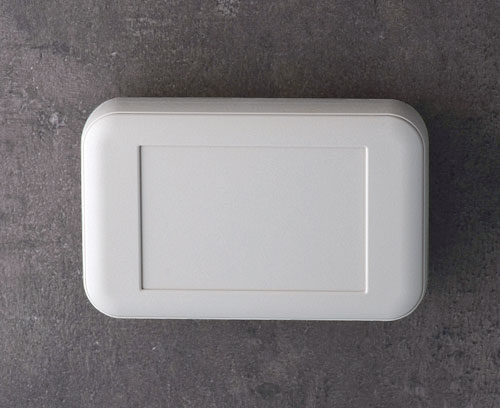

Universal wall suspension element suitable for small plastic enclosures with a flat base.

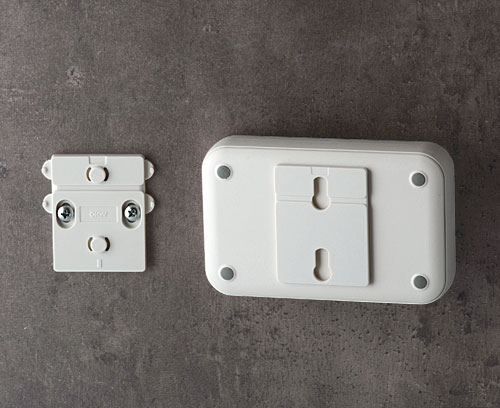

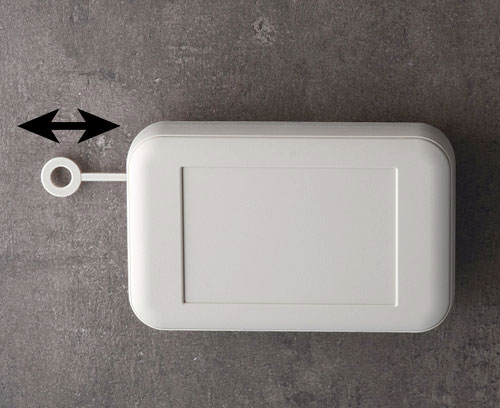

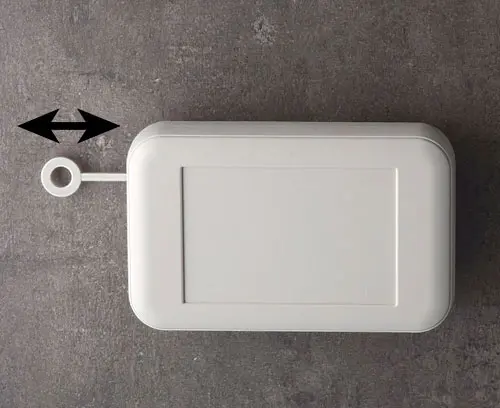

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.

*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.

Supply

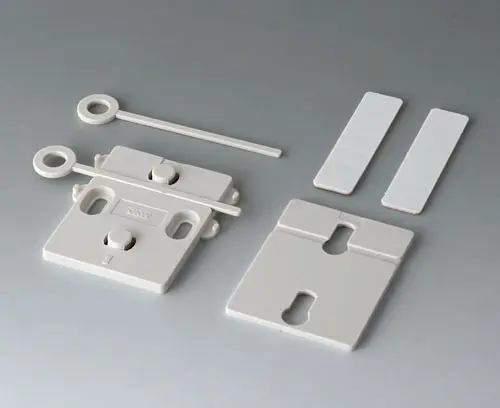

1 adapter, 2 adhesive foils, 1 holder, 2 locking pins

  • Components/Accessories

Accessory

A9305147 Adhesive foil holder

A9305147

Adhesive foil holder For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.

Supply 2 adhesive foils

Close

A9305147

Adhesive foil holder
product added to your basket
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
