B4156307 Wall suspension element M

B4156307

Wall suspension element M

Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply

1 wall suspension element, 1 adapter with assembly kit

  • To be used for
  • View Customising Options

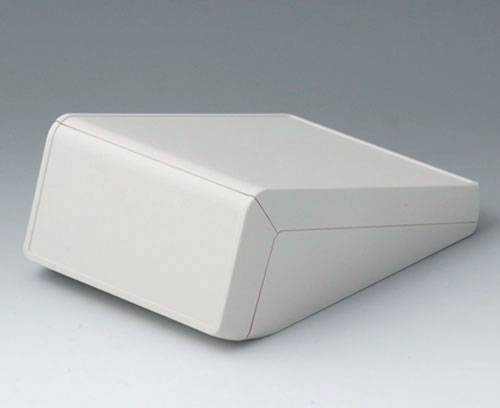

B4056107 UNITEC M, 0.6/0.6

B4056107

UNITEC M, 0.6/0.6 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 0.6 mm. All-round graphic overlays may also be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version Without battery compartment

Supply 1 bottom part, top part and front part, assembly kit

Close

B4056107

UNITEC M, 0.6/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40
B4056117 UNITEC M, 1.4/1.4

B4056117

UNITEC M, 1.4/1.4 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 1.4 mm. Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version Without battery compartment

Supply 1 bottom part, top part and front part, assembly kit

Close

B4056117

UNITEC M, 1.4/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

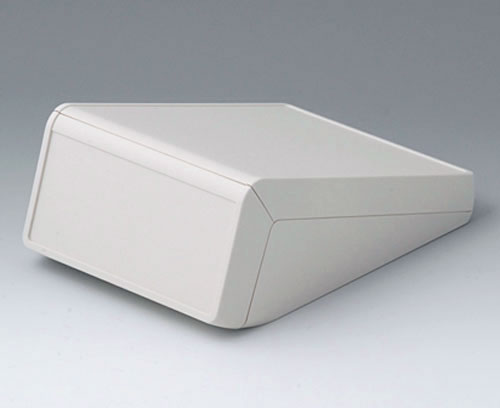

B4056127 UNITEC M, 1.4/0.6

B4056127

UNITEC M, 1.4/0.6 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 0.6 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version Without battery compartment

Supply 1 bottom part, top part and front part, assembly kit

Close

B4056127

UNITEC M, 1.4/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

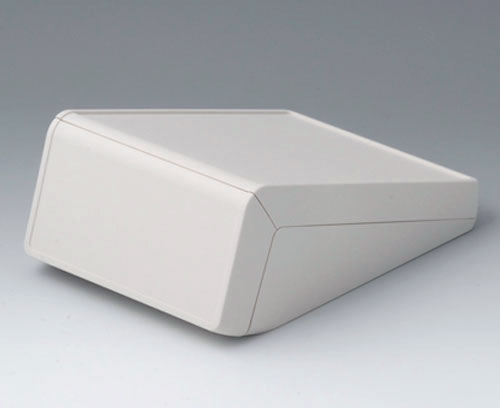

B4056137 UNITEC M, 0.6/1.4

B4056137

UNITEC M, 0.6/1.4 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version Sans compartiment piles

Supply 1 bottom part, top part and front part, assembly kit

Close

B4056137

UNITEC M, 0.6/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40
B4056207 UNITEC M, 0.6/0.6

B4056207

UNITEC M, 0.6/0.6 Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 0.6 mm. All-round graphic overlays may also be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 3 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056207

UNITEC M, 0.6/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40
B4056217 UNITEC M, 1.4/1.4

B4056217

UNITEC M, 1.4/1.4 Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 1.4 mm. Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 3 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056217

UNITEC M, 1.4/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

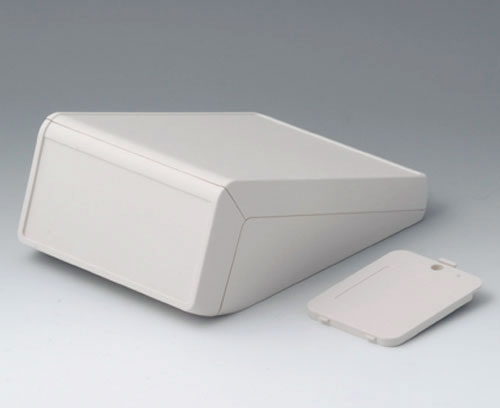

B4056227 UNITEC M, 1.4/0.6

B4056227

UNITEC M, 1.4/0.6 Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 0.6 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 3 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056227

UNITEC M, 1.4/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

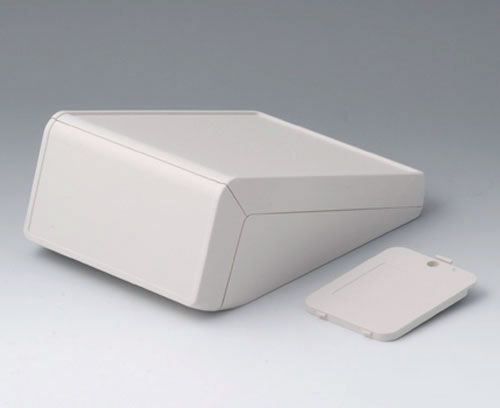

B4056237 UNITEC M, 0.6/1.4

B4056237

UNITEC M, 0.6/1.4 Plastic enclosure with two operating panels at right angeles to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 3 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056237

UNITEC M, 0.6/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40
B4056307 UNITEC M, 0.6/0.6

B4056307

UNITEC M, 0.6/0.6 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 0.6 mm. All-round graphic overlays may also be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 5 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056307

UNITEC M, 0.6/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40
B4056317 UNITEC M, 1.4/1.4

B4056317

UNITEC M, 1.4/1.4 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 1.4 mm. Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 5 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056317

UNITEC M, 1.4/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

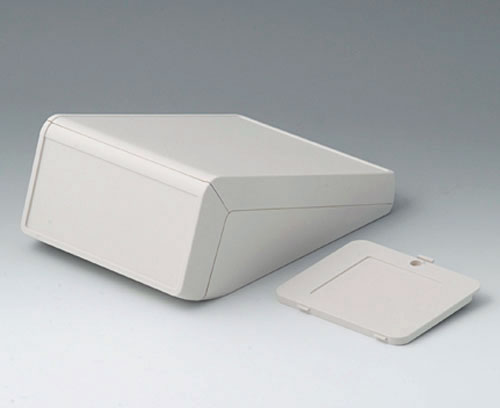

B4056327 UNITEC M, 1.4/0.6

B4056327

UNITEC M, 1.4/0.6 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 0.6 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 5 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056327

UNITEC M, 1.4/0.6
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

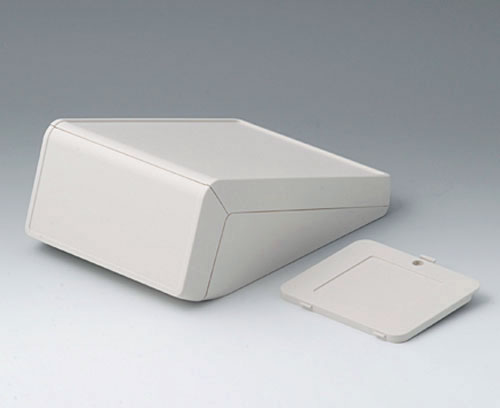

B4056337 UNITEC M, 0.6/1.4

B4056337

UNITEC M, 0.6/1.4 Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 1.4 mm. Fastening pillars for mounting of PCBs in top, base and front part.

Version With battery compartment 5 x AA

Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit

Close

B4056337

UNITEC M, 0.6/1.4
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
148x210x80mm
IP 40

Customising options for B4156307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
93 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
