B1370029 Wall suspension element for Toptec 194

B1370029

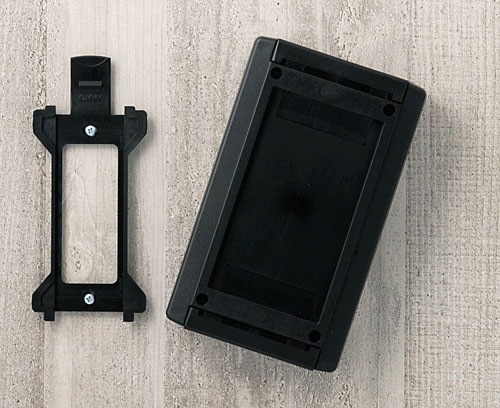

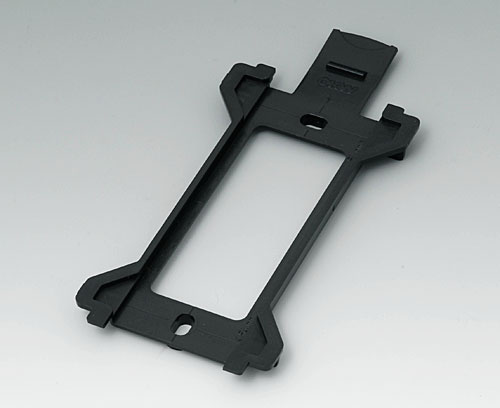

Wall suspension element for Toptec 194

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

  • To be used for
  • View Customising Options

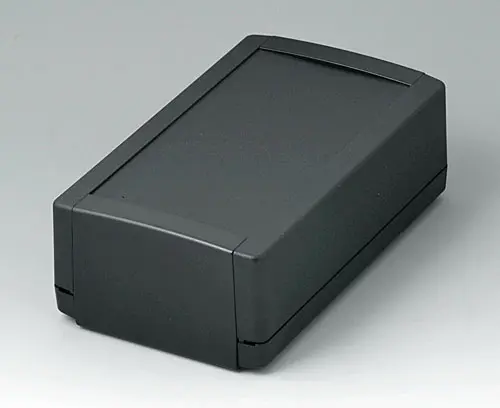

B1070369 TOPTEC 194 H, Vers. I

B1070369

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070369

TOPTEC 194 H, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40
B1070469 TOPTEC 194 H, Vers. II

B1070469

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070469

TOPTEC 194 H, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40

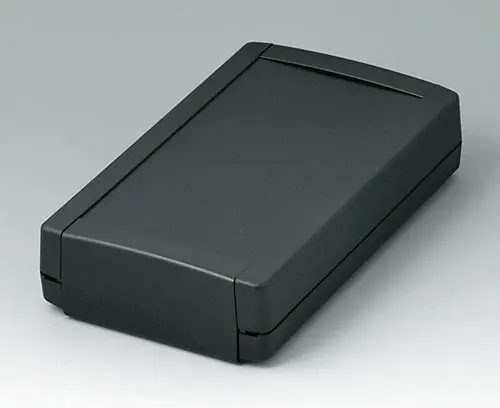

B1075369 TOPTEC 194 F, Vers. I

B1075369

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075369

TOPTEC 194 F, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40
B1075469 TOPTEC 194 F, Vers. II

B1075469

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075469

TOPTEC 194 F, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40

Customising options for B1370029

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
