B2904037 Holder L
Scroll

B2904037

Holder L

Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply

1 holder

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B2904037

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

System components to complete

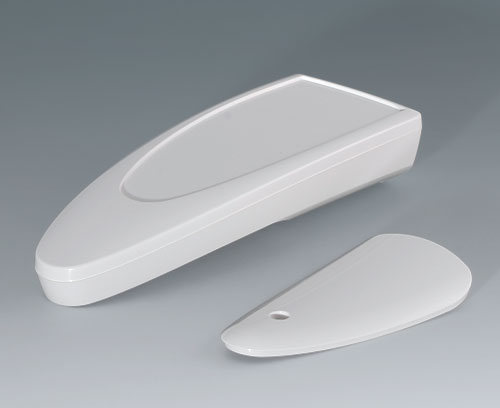

B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804017

STYLE-CASE L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
B2804027 STYLE-CASE L

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

Close

B2804027

STYLE-CASE L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40

Accessory

B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2904031

Adhesive foil L
product added to your basket

Customising options for B2904037

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
ASA (UL 94 HB)
Colour
traffic white RAL 9016
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
