A9167039 Station L
Scroll

A9167039

Station L

Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply

Bottom and top part, rubber feet, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9167039

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

System components to complete

A9067109 SMART-CASE L, Vers. I

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067109

SMART-CASE L, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 40
A9067119 SMART-CASE L, Vers. II

A9067119

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067119

SMART-CASE L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 65 opt., IP 40
A9067209 SMART-CASE L, Vers. I

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067209

SMART-CASE L, Vers. I
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 40
A9067219 SMART-CASE L, Vers. II

A9067219

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067219

SMART-CASE L, Vers. II
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
140x62.7x30.5mm
IP 65 opt., IP 40

Accessory

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Close

A9166004

Set of pull-relief
product added to your basket
PA 6
volcano

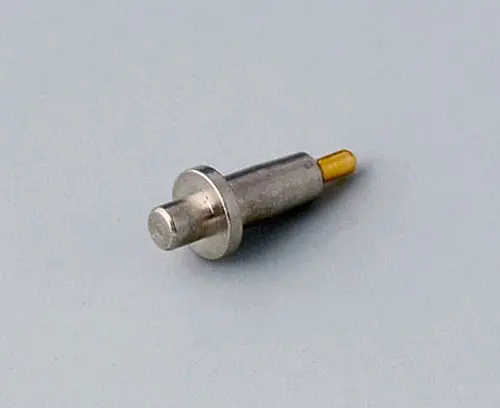

A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193032

Spring contact
product added to your basket

Customising options for A9167039

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
PCB length, base
100 mm
PCB width, base
70 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
