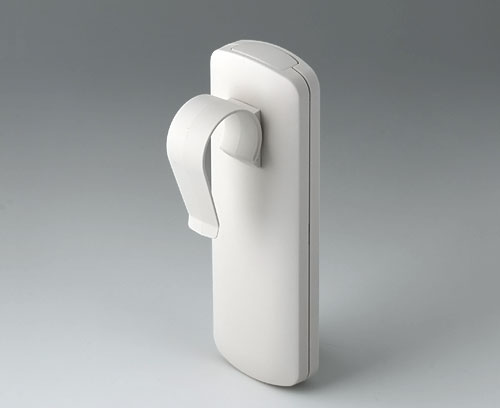

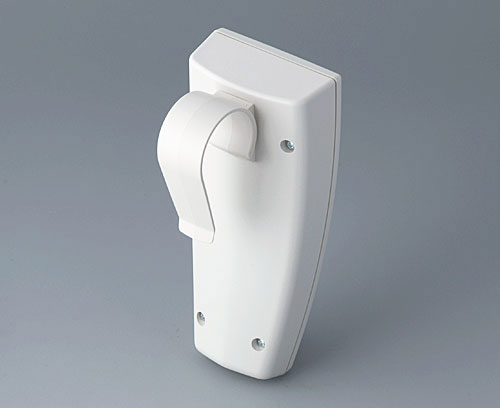

A9167027 Holding clamp

A9167027

Holding clamp

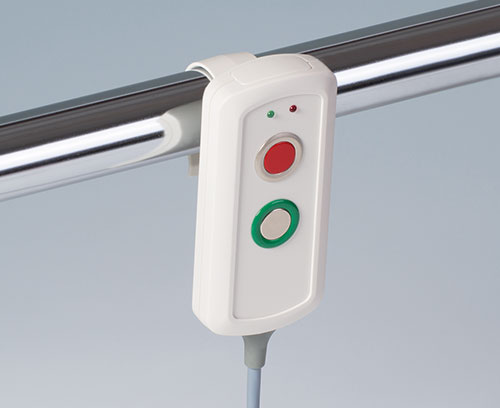

Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply

1 holding clamp, assembly kit

  • To be used for
  • View Customising Options
A9066107 SMART-CASE M, Vers. I

A9066107

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Close

A9066107

SMART-CASE M, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066117

SMART-CASE M, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066127 SMART-CASE M, Vers. III

A9066127

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9066127

SMART-CASE M, Vers. III
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

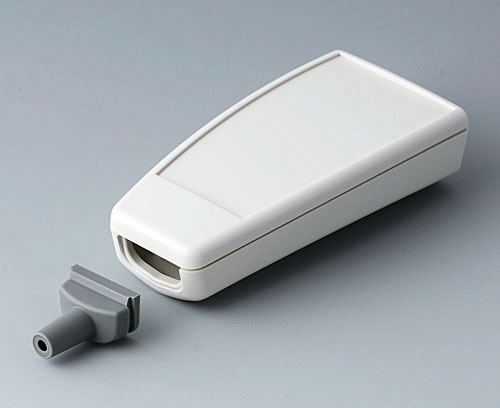

A9066137 SMART-CASE M, Vers. IV

A9066137

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9066137

SMART-CASE M, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40

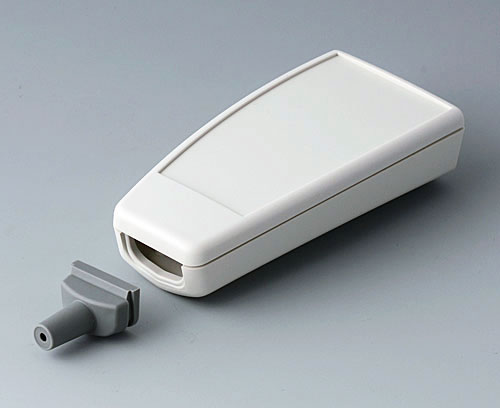

A9066147 SMART-CASE M, Vers. V

A9066147

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9066147

SMART-CASE M, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9066317 SMART-CASE M, Vers. VI

A9066317

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Close

A9066317

SMART-CASE M, Vers. VI
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
96x47x24mm
IP 40
A9067107 SMART-CASE L, Vers. I

A9067107

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067107

SMART-CASE L, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 40
A9067117 SMART-CASE L, Vers. II

A9067117

SMART-CASE L, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9067117

SMART-CASE L, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 65 opt., IP 40

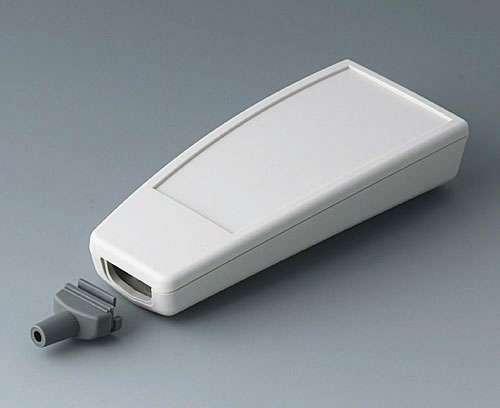

A9067127 SMART-CASE L, Vers. III

A9067127

SMART-CASE L, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9067127

SMART-CASE L, Vers. III
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 65 opt., IP 40

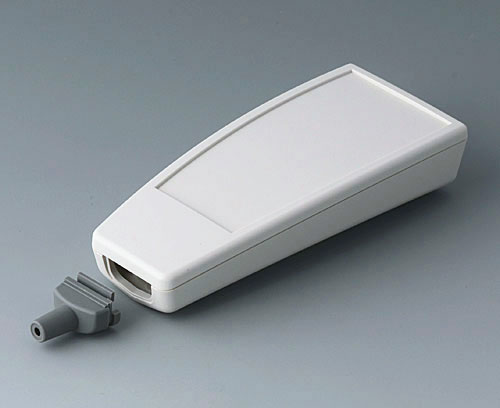

A9067137 SMART-CASE L, Vers. IV

A9067137

SMART-CASE L, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9067137

SMART-CASE L, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 65 opt., IP 40

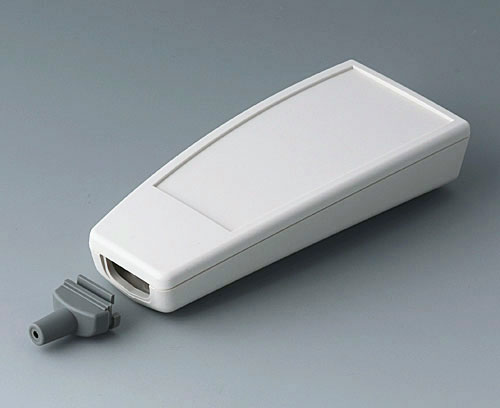

A9067147 SMART-CASE L, Vers. V

A9067147

SMART-CASE L, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9067147

SMART-CASE L, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
140x62.7x30.5mm
IP 65 opt., IP 40
A9068107 SMART-CASE XL, Vers. I

A9068107

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068107

SMART-CASE XL, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 40
A9068117 SMART-CASE XL, Vers. II

A9068117

SMART-CASE XL, Vers. II Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment

Supply Case-top and base, assembly kit

Close

A9068117

SMART-CASE XL, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 65 opt., IP 40
A9068127 SMART-CASE XL, Vers. III

A9068127

SMART-CASE XL, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9068127

SMART-CASE XL, Vers. III
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 65 opt., IP 40
A9068137 SMART-CASE XL, Vers. IV

A9068137

SMART-CASE XL, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9068137

SMART-CASE XL, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 65 opt., IP 40
A9068147 SMART-CASE XL, Vers. V

A9068147

SMART-CASE XL, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Close

A9068147

SMART-CASE XL, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x74.4x35.4mm
IP 65 opt., IP 40
B2823107 CONNECT S

B2823107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2823107

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
90x42x22mm
B2824107 CONNECT S

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2824107

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
120x42x22mm
B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2833107

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2834107

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm

Customising options for A9167027

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
