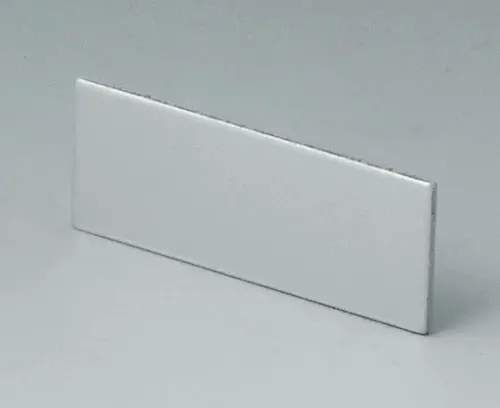

A9104111 Front / rear panel V 85

A9104111

Front / rear panel V 85

Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply

1 front panel

  • To be used for
  • View Customising Options

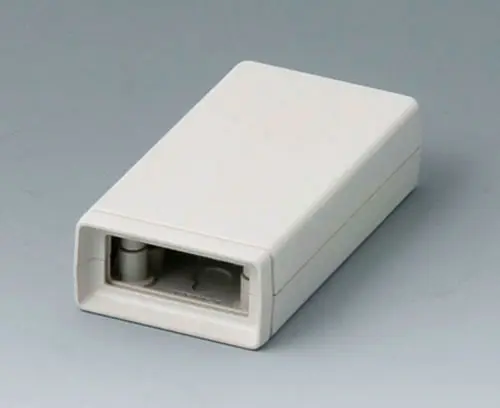

A9404333 SHELL-TYPE CASES V 85, Vers. I

A9404333

SHELL-TYPE CASES V 85, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9404333

SHELL-TYPE CASES V 85, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
45x85x22mm

Customising options for A9104111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
36 mm
Height
14.6 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.4 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
