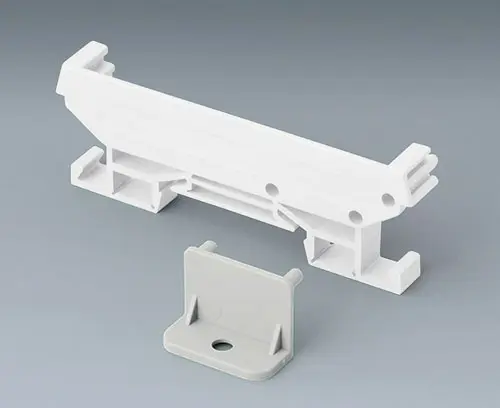

B6824533 Wall suspension element with foot, SUP.

B6824533

Wall suspension element with foot, SUP.

Allows direct wall-mounting, suitable for end section with foot.

Supply

2 pieces as set

  • To be used for
  • View Customising Options

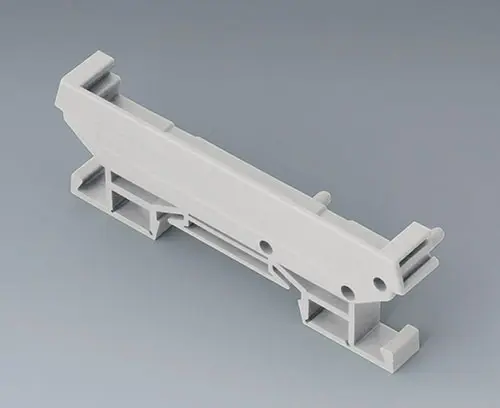

B6724335 RAILTEC SUP. 72, end section with foot

B6724335

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TS35).

Supply 1 end section with foot

Close

B6724335

RAILTEC SUP. 72, end section with foot
product added to your basket
PA 6 (30) (UL 94 V-0)
light grey
82x11.2x22.5mm

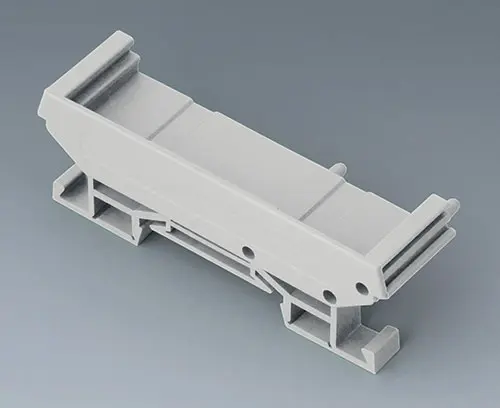

B6724336 RAILTEC SUP. 72, end section with foot

B6724336

RAILTEC SUP. 72, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

Close

B6724336

RAILTEC SUP. 72, end section with foot
product added to your basket
PA 6 (30) (UL 94 V-0)
light grey
82x22.2x22.5mm

Customising options for B6824533

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
