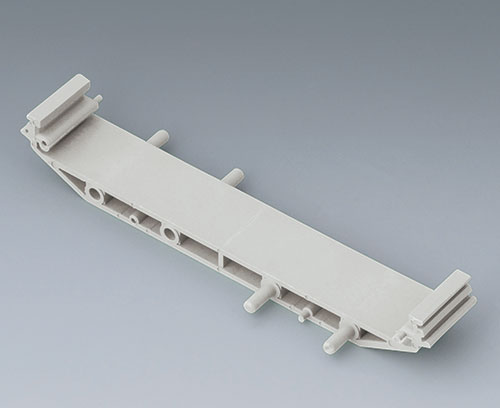

B6724440 RAILTEC SUP. 107, intermediate part

B6724440

RAILTEC SUP. 107, intermediate part

Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 intermediate part

  • Components/Accessories
  • View Customising Options

System components to complete

B6724444 RAILTEC SUP. 107, end section

B6724444

RAILTEC SUP. 107, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

Close

B6724444

RAILTEC SUP. 107, end section
product added to your basket
PA 6 (30) (UL 94 V-0)
light grey
118x11.5x17.5mm

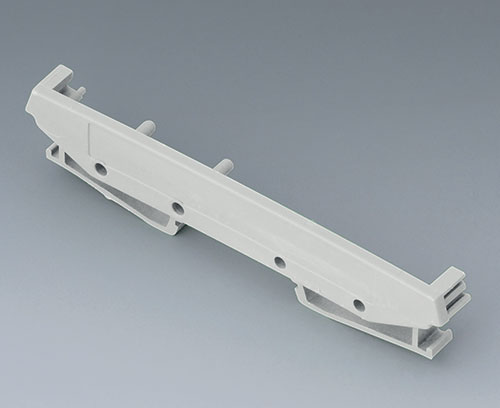

B6724445 RAILTEC SUP. 107, end section with foot

B6724445

RAILTEC SUP. 107, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

Close

B6724445

RAILTEC SUP. 107, end section with foot
product added to your basket
PA 6 (30) (UL 94 V-0)
light grey
118x11.5x27.5mm

Customising options for B6724440

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Length
118 mm
Width
18.5 mm
Height
17.5 mm
PCB length, base
107 mm
PCB width, base
18.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
