CONTROL-KNOBS
Scroll

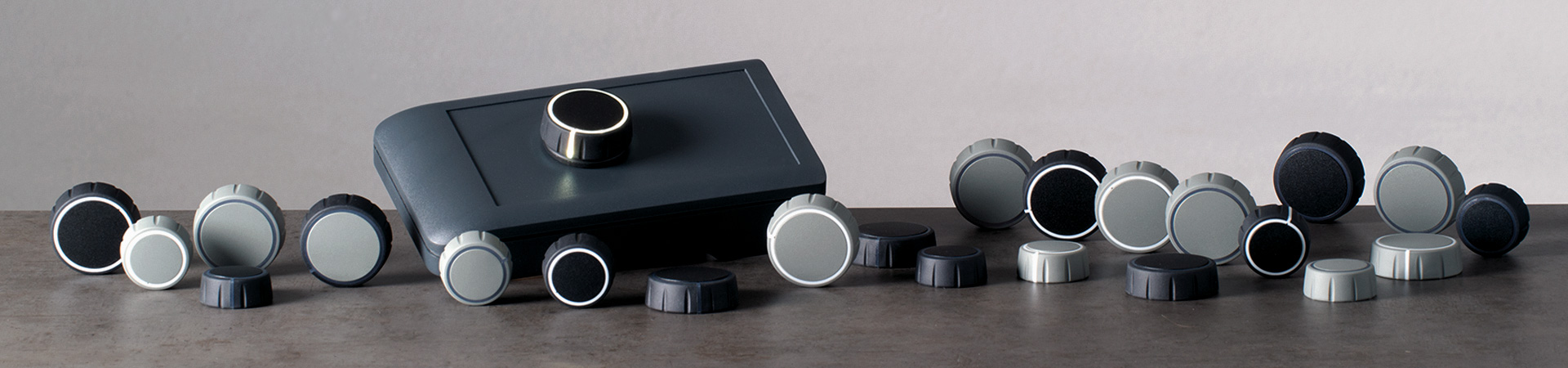

Control-Knobs

Potentiometer tuning knobs that are highly comfortable to operate

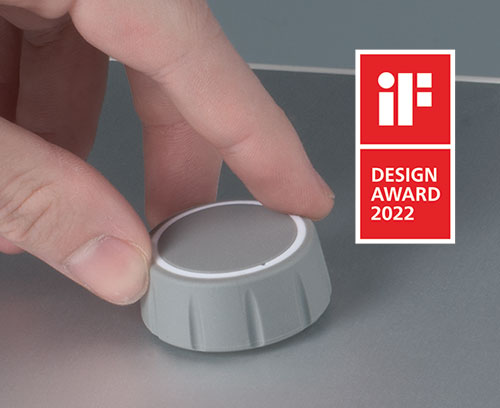

New ergonomic CONTROL-KNOBS have a soft-touch surface which is easy to grip and feels comfortable in operation. The high-quality appearance – illuminated if required – distinguishes this advanced range of tuning knobs as the central element of menu-driven interfaces.

  • soft-touch surface ensures good grip and anti-slip operation
  • innovative two-part plastic tuning knob design comprises a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance *** iF product design award 2022 ***

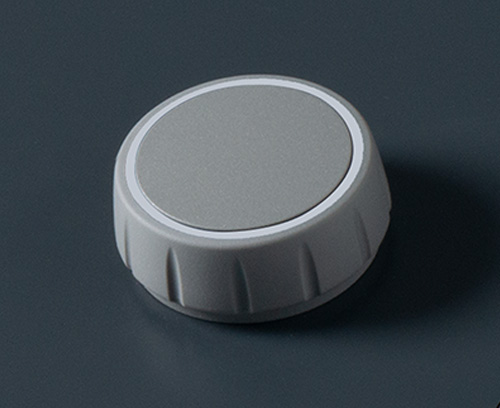

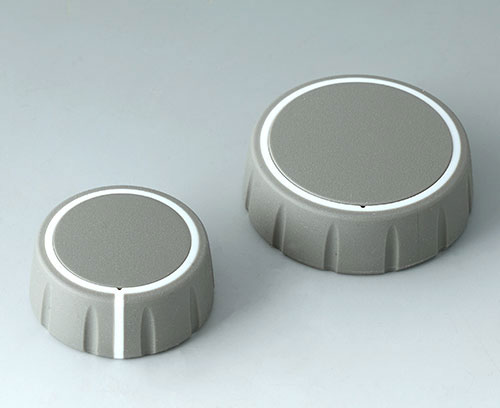

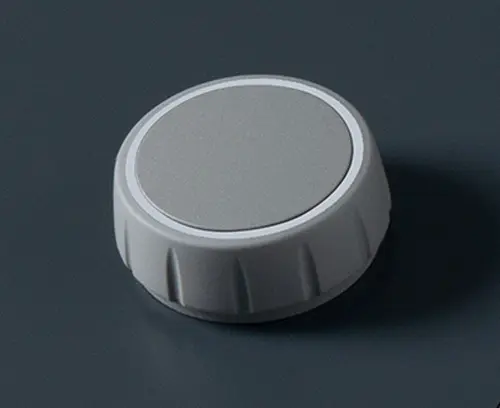

  • available in two knob sizes, ø 36 mm and ø 46 mm, each in two standard TPE colours (nero and volcano)

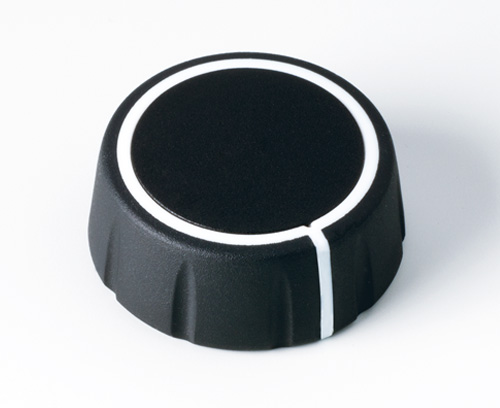

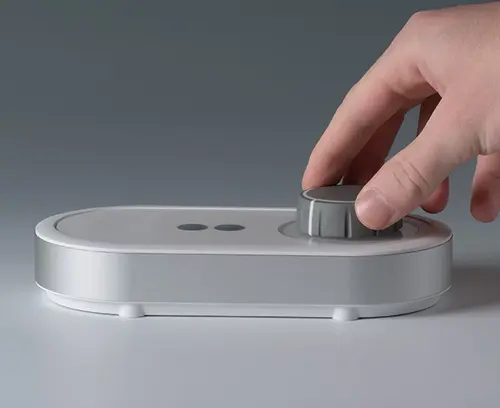

  • CONTROL-KNOBS with/without pointer line on the side for fine scaling

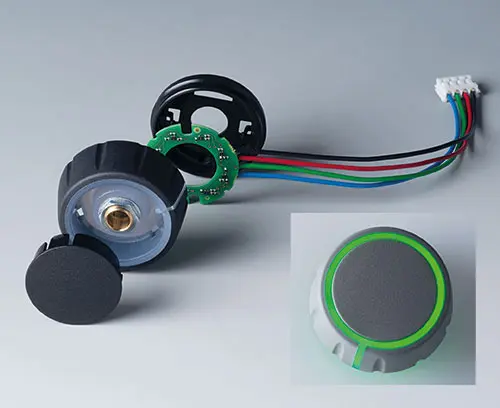

  • CONTROL-KNOBS with/without optional LED illumination
  • illumination options:

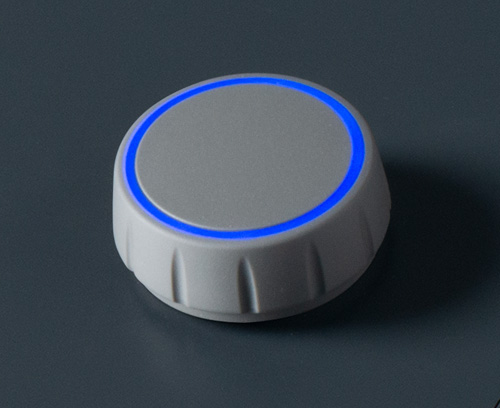

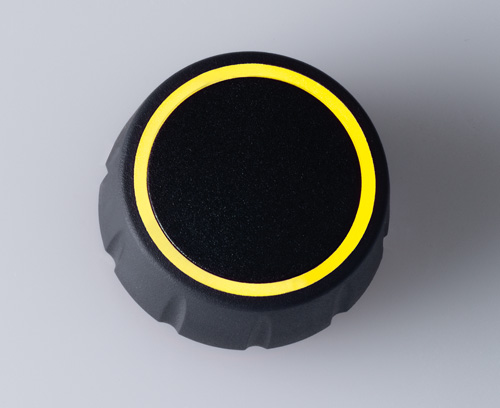

    - translucent optic ring on the top surface

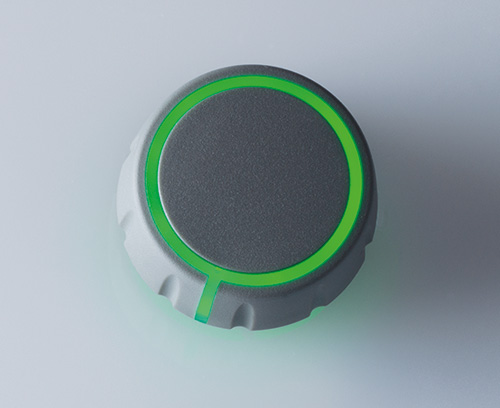

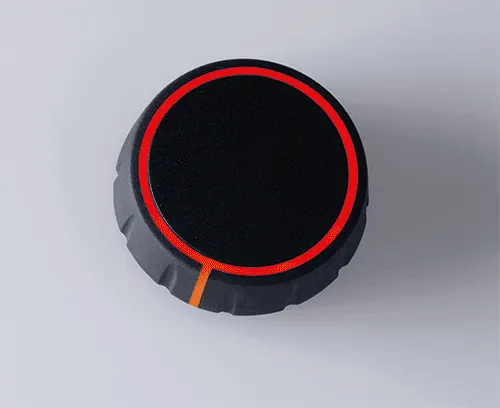

    - translucent optic ring on the top surface with a pointer line on the side
    (note: order the CONTROL-KNOBS with optional illumination, plus the base and the LED illumination kit, see accessories)

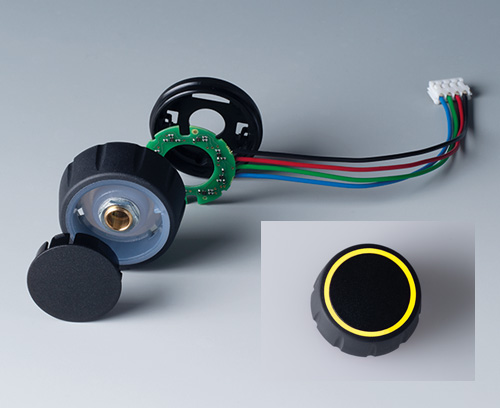

  • optional illumination uses modern, energy-saving SMD LED technology for 5 V power supply units (RGB LEDs allow individual illumination and colours)
  • designed as modern control knobs for rotary potentiometers or encoders; also suitable for rotary touch/click functions used on menu-driven interfaces – typically employed on devices made in high volumes

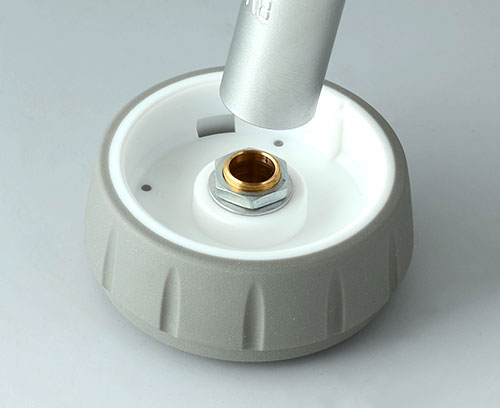

  • tried and tested collet fixture system with secure fit on the axle
  • max. torque: installation = 1.5 Nm, function = 1.2 Nm
knob sizes boreholes
ø 36 mm 6 mm, 1/4" (6.35 mm)
ø 46 mm 6 mm, 1/4" (6.35 mm)

Minimum components for one CONTROL-KNOBS, without illumination:
1 CONTROL-KNOBS, 1 cover – the accessory base can also be added if required

Minimum components for one CONTROL-KNOBS with LED illumination:
1 CONTROL-KNOBS, optional illumination, 1 cover, 1 base, 1 LED illumination kit (RBG backlight)

Designer Statement

"Perfect all round – modern tuning knobs which are pleasant to the touch, with which processes can be reliably regulated or controlled and which should have a fixed place in the user interface of a modern product. When it comes down to it, these tuning knobs can ensure easy operation of your products even in awkward places and under adverse conditions – robust in appearance and precise in their function. You will find the CONTROL-KNOBS easy to use. The illuminated lines indicate the location, status and position of the function you are looking for. With or without gloves, the haptic structure and the pleasant material of the grip surface reliably apply the necessary torque to the knob axle – in any application situation."
Martin Nußberger, polyform Industrie Design

Generate PDF
  • Video

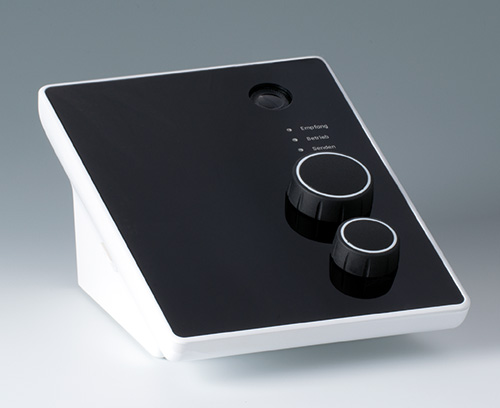

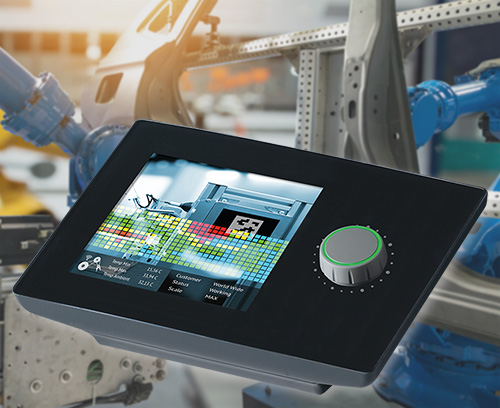

  • Application Examples

Application fields

For rotary potentiometers or rotary encoders with round shaft ends in accordance with DIN 41591, including touch function.

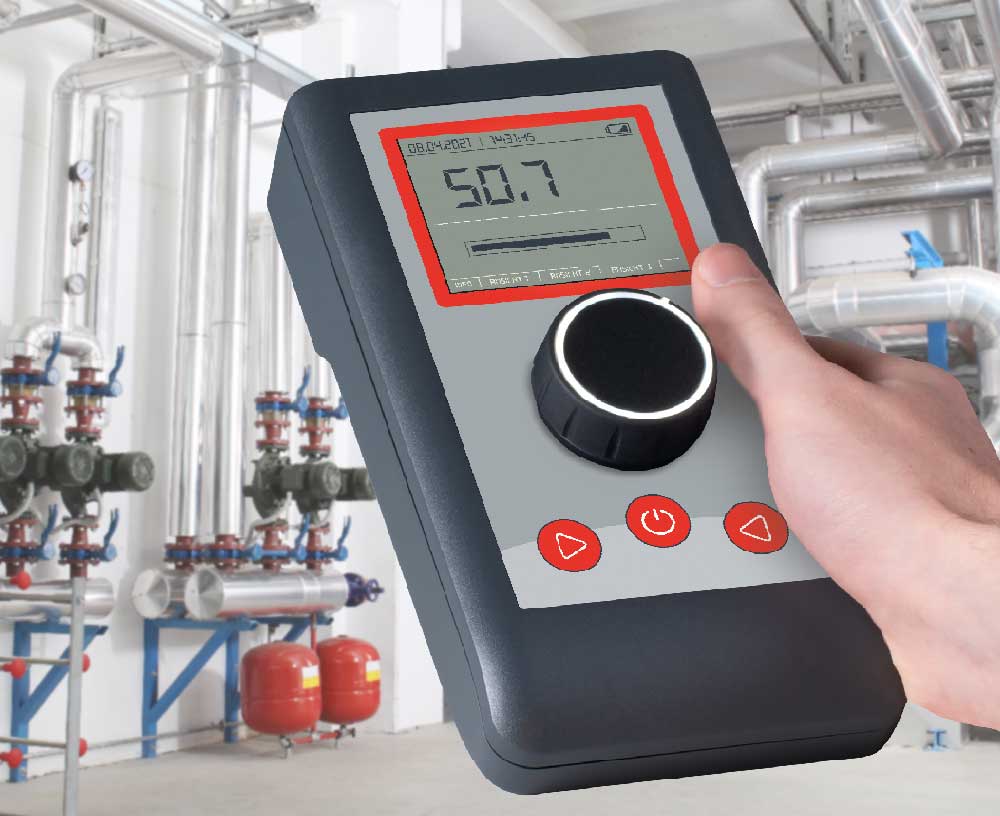

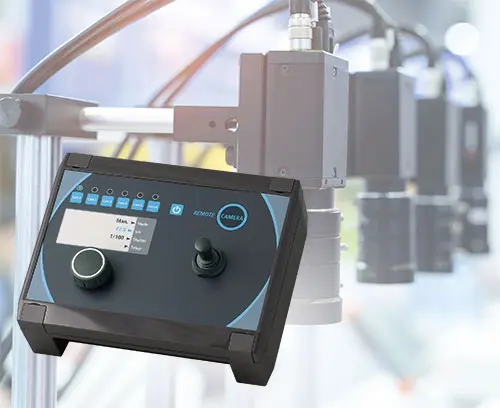

  • Measuring and control technology
  • Medical and laboratory equipment
  • Wellness sector
  • Health care
  • Heating and air conditioning technology
  • Communication devices
  • Building control systems

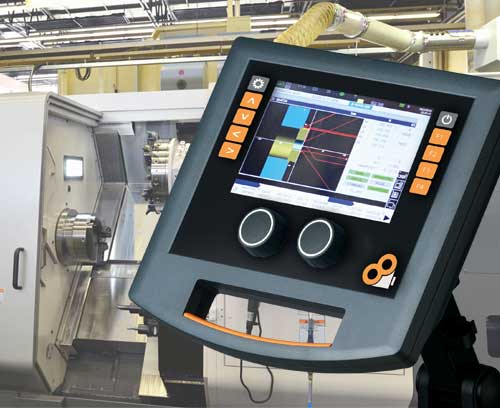

  • Smart Factory
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Close

A6300000

Spanner
product added to your basket
B7536108 Cover 36

B7536108

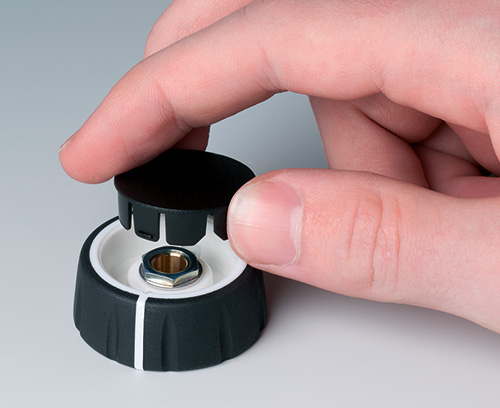

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Close

B7536108

Cover 36
product added to your basket
PA 6
volcano
B7536109 Cover 36

B7536109

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

Close

B7536109

Cover 36
product added to your basket
PA 6
nero
B7536208 Base 36

B7536208

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.

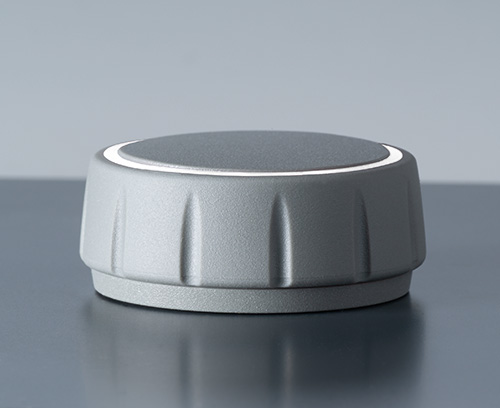

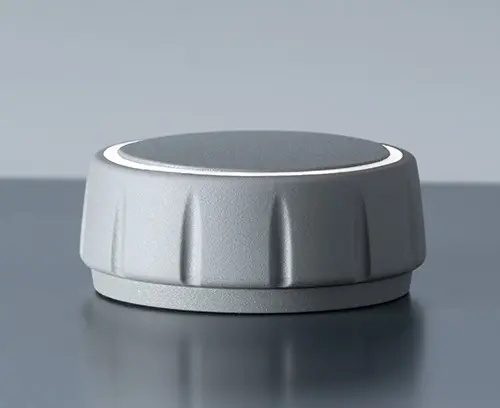

- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Close

B7536208

Base 36
product added to your basket
PA 6
volcano
B7536209 Base 36

B7536209

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Close

B7536209

Base 36
product added to your basket
PA 6
nero

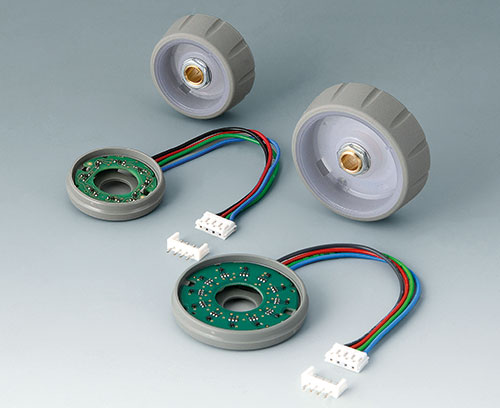

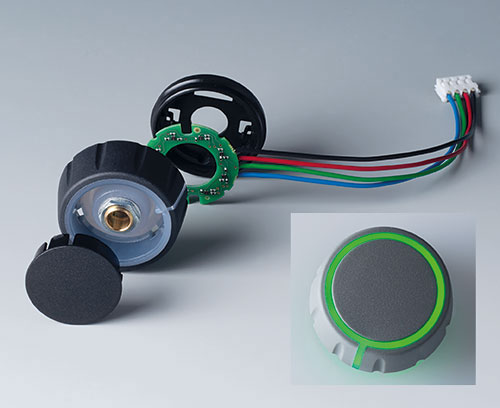

B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Close

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
product added to your basket

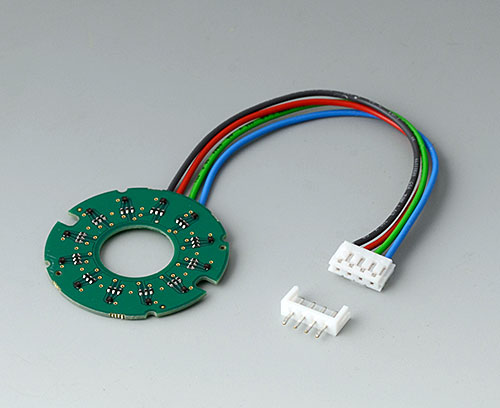

B7546002 LED illumination kit, 12 LEDs (RGB backlight)

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

Close

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
product added to your basket

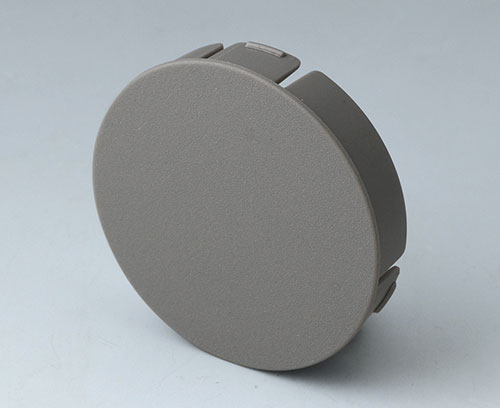

B7546108 Cover 46

B7546108

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Close

B7546108

Cover 46
product added to your basket
PA 6
volcano

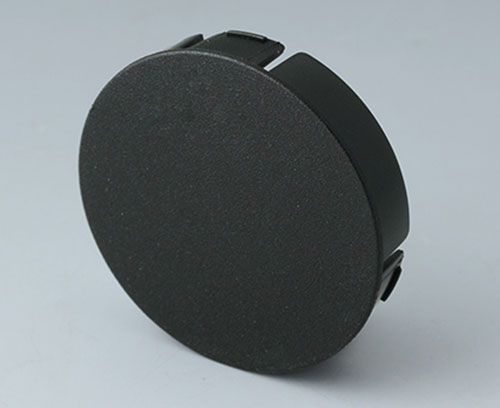

B7546109 Cover 46

B7546109

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

Close

B7546109

Cover 46
product added to your basket
PA 6
nero
B7546208 Base 46

B7546208

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Close

B7546208

Base 46
product added to your basket
PA 6
volcano

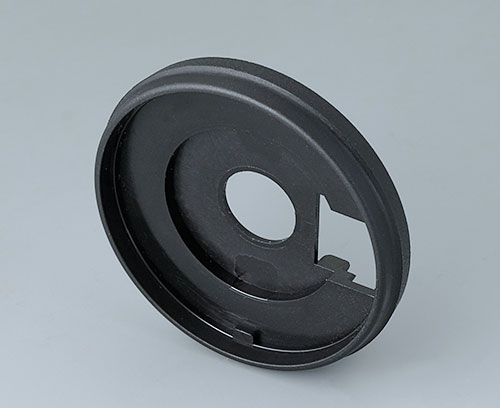

B7546209 Base 46

B7546209

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

Close

B7546209

Base 46
product added to your basket
PA 6
nero

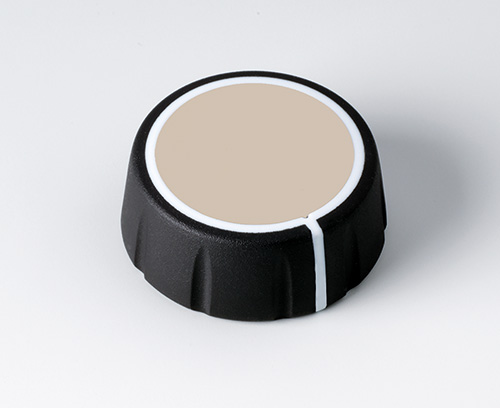

Customising options for Control-Knobs

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
