B3322159 Sealing kit 220

B3322159

Sealing kit 220

Application: for increasing the protection class, of NET-BOX 220.

Supply

1 sealing kit

  • To be used for

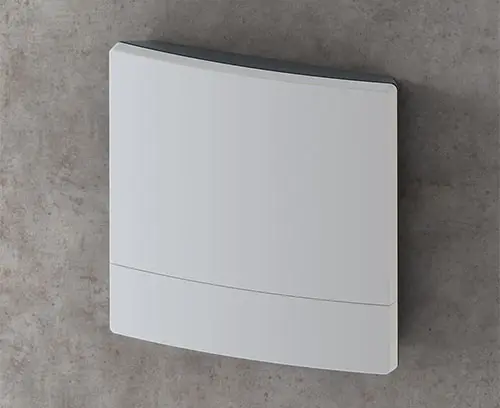

B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222101

NET-BOX 220, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt., IP 40
B3222201 NET-BOX 220, Vers. II

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222201

NET-BOX 220, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt.
  • Technical Data
  • Purchasing Data
Material
Colour
black
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
