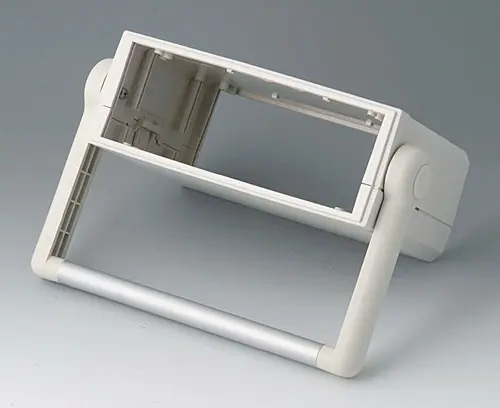

B3023147 MOTEC L, with handle bar

B3023147

MOTEC L, with handle bar

Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.

Supply

1 top and base part, handle bar, 4 self-adhesive case feet

  • Components/Accessories
  • View Customising Options

Accessory to complete

B3123110 Front / rear panel L

B3123110

Front / rear panel L Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.

Supply 1 front panel

Close

B3123110

Front / rear panel L
product added to your basket
Aluminium
matt anodised
214x77x1.5mm
B3123167 Sloping control panel L, flat/high

B3123167

Sloping control panel L, flat/high Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.

Supply 1 sloping control panel

Close

B3123167

Sloping control panel L, flat/high
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Customising options for B3023147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Colour
off-white RAL 9002,
Profile handle matt anodised
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
235 mm
Depth
165 mm
Height
85 mm
PCB length, base
208 mm
PCB width, base
150 mm
Keypad length
210 mm
Keypad width
72 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
498 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
