B9006827 Bottom and top part EL

B9006827

Bottom and top part EL

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply

1 top and bottom part EL, 2 self-tapping screws

  • Components/Accessories
  • View Customising Options

System components to complete

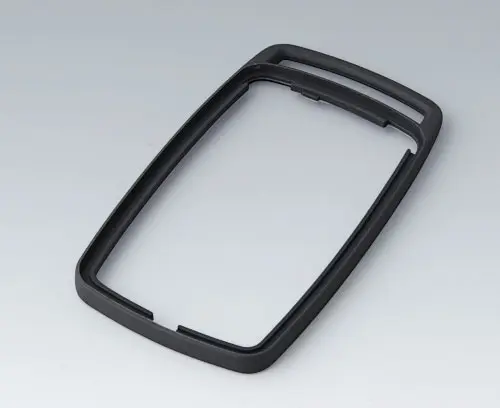

B9006702 Intermediate ring EL

B9006702

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006702

Intermediate ring EL
product added to your basket
TPE
lava

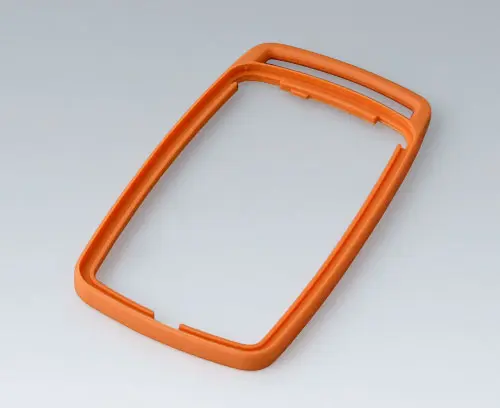

B9006703 Intermediate ring EL

B9006703

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006703

Intermediate ring EL
product added to your basket
TPE
orange

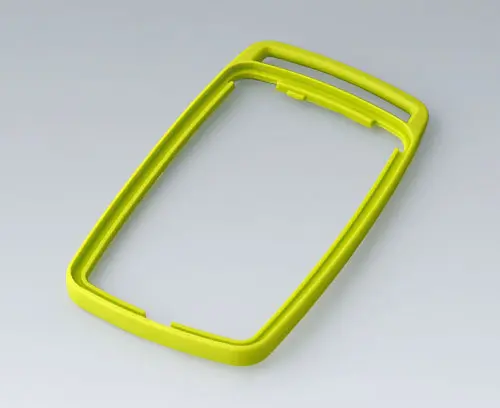

B9006704 Intermediate ring EL

B9006704

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006704

Intermediate ring EL
product added to your basket
SEBS (TPE)
green
B9006705 Intermediate ring EL

B9006705

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006705

Intermediate ring EL
product added to your basket
TPE
blue

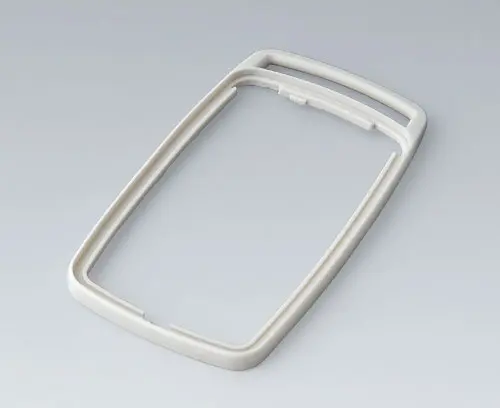

B9006707 Intermediate ring EL

B9006707

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006707

Intermediate ring EL
product added to your basket
SEBS (TPE)
off-white RAL 9002

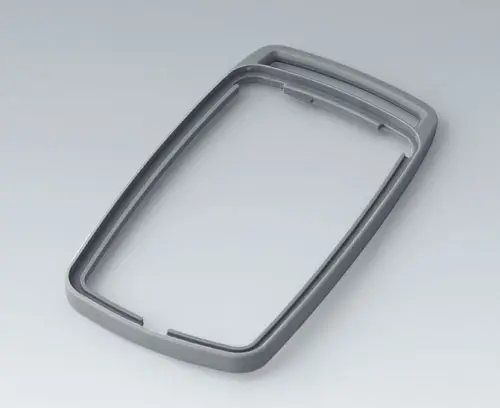

B9006708 Intermediate ring EL

B9006708

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006708

Intermediate ring EL
product added to your basket
TPE
volcano
B9006709 Intermediate ring EL

B9006709

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring EL

Close

B9006709

Intermediate ring EL
product added to your basket
ABS (UL 94 HB)
black RAL 9005
B9006752 Intermediate ring EL

B9006752

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006752

Intermediate ring EL
product added to your basket
TPE
lava
B9006753 Intermediate ring EL

B9006753

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006753

Intermediate ring EL
product added to your basket
TPE
orange
B9006754 Intermediate ring EL

B9006754

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006754

Intermediate ring EL
product added to your basket
SEBS (TPE)
green
B9006755 Intermediate ring EL

B9006755

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006755

Intermediate ring EL
product added to your basket
TPE
blue
B9006757 Intermediate ring EL

B9006757

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006757

Intermediate ring EL
product added to your basket
SEBS (TPE)
off-white RAL 9002
B9006758 Intermediate ring EL

B9006758

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring EL

Close

B9006758

Intermediate ring EL
product added to your basket
TPE
volcano
B9006759 Intermediate ring EL

B9006759

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring EL

Close

B9006759

Intermediate ring EL
product added to your basket
ABS (UL 94 HB)
black RAL 9005

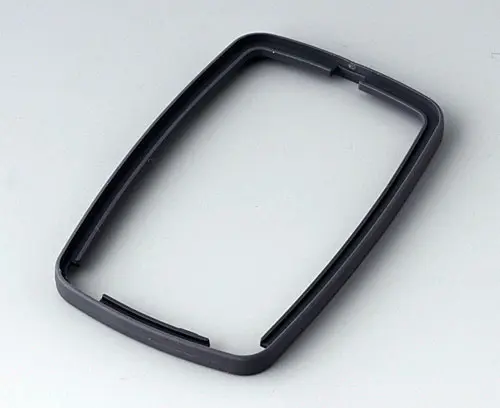

B9006782 Intermediate ring EL

B9006782

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006782

Intermediate ring EL
product added to your basket
SEBS (TPE)
lava

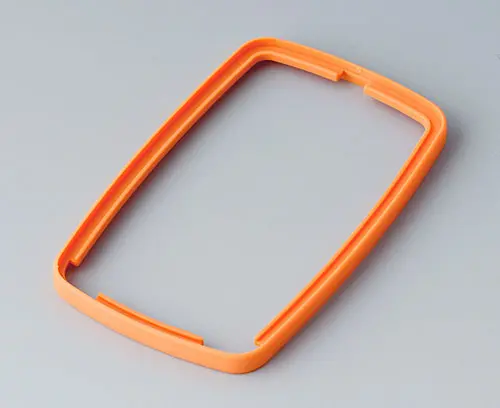

B9006783 Intermediate ring EL

B9006783

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006783

Intermediate ring EL
product added to your basket
TPE
orange

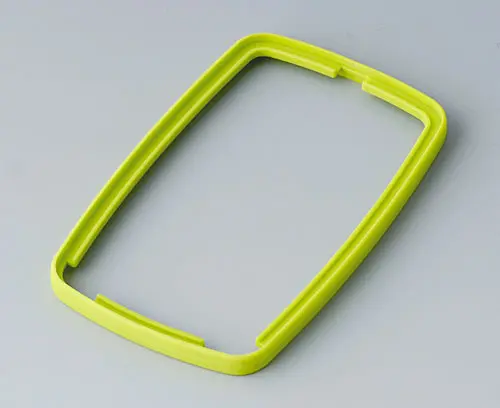

B9006784 Intermediate ring EL

B9006784

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006784

Intermediate ring EL
product added to your basket
SEBS (TPE)
green
B9006785 Intermediate ring EL

B9006785

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006785

Intermediate ring EL
product added to your basket
TPE
blue

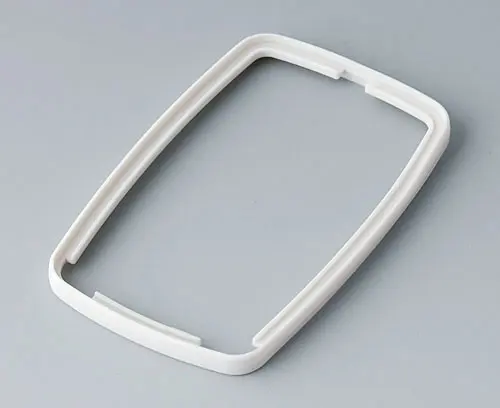

B9006787 Intermediate ring EL

B9006787

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006787

Intermediate ring EL
product added to your basket
SEBS (TPE)
off-white RAL 9002

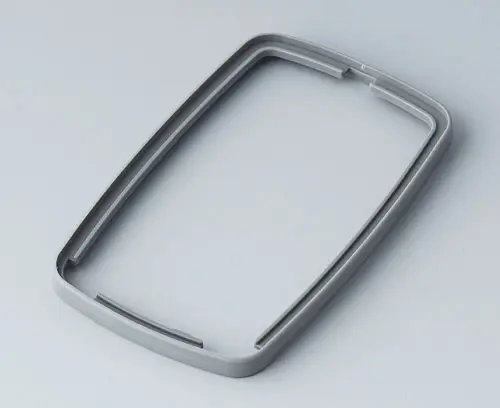

B9006788 Intermediate ring EL

B9006788

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. Recommended for case applications with strap loop attachment.

Supply 1 intermediate ring EL

Close

B9006788

Intermediate ring EL
product added to your basket
TPE
volcano

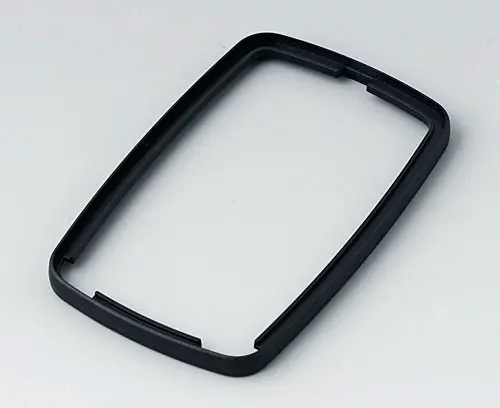

B9006789 Intermediate ring EL

B9006789

Intermediate ring EL Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring EL

Close

B9006789

Intermediate ring EL
product added to your basket
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Close

A9164001

Key ring
product added to your basket
Steel
nickel-plated
20.5mm
B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

Close

B9100033

Wrist strap
product added to your basket
black
280mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Close

B9100063

Carrying strap, textile lanyard
product added to your basket
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Close

B9100073

Carrying strap, textile lanyard
product added to your basket
black
914x16mm

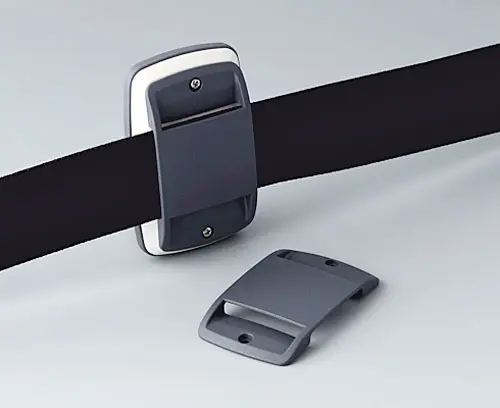

B9106108 Strap eyelet EL

B9106108

Strap eyelet EL For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly - use the screws supplied with the strap eyelet instead of the screws from the top and bottom parts of the case.

Supply 1 strap eyelet, 2 screws

Close

B9106108

Strap eyelet EL
product added to your basket
ABS (UL 94 HB)
lava

Customising options for B9006827

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
off-white RAL 9002
Length
78 mm
Width
48 mm
Height
26 mm
PCB length, base
52 mm
PCB width, base
36 mm
Keypad length
51.3 mm
Keypad width
29.4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
