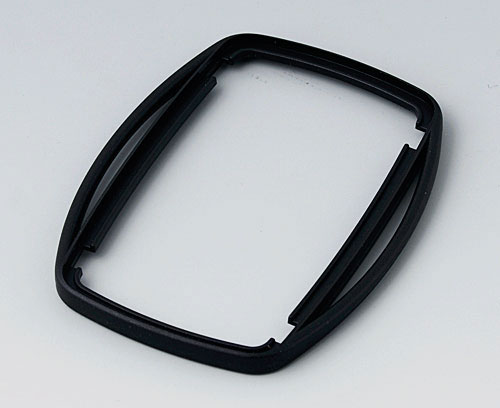

B9006756 Intermediate ring EL

B9006756

Intermediate ring EL

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply

1 intermediate ring EL

  • Components/Accessories
  • View Customising Options

System components to complete

B9006806 Bottom and top part EL

B9006806

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006806

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
78x48x20mm
B9006816 Bottom and top part EL

B9006816

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006816

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
78x48x24mm
B9006826 Bottom and top part EL

B9006826

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006826

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
78x48x26mm
B9006856 Bottom and top part EL

B9006856

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006856

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
78x48x20mm

Accessory "carrying"

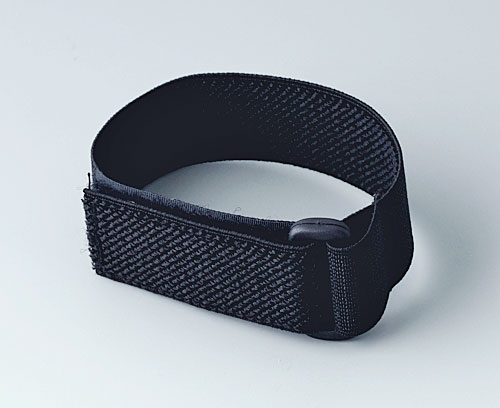

B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

Close

B9100033

Wrist strap
product added to your basket
black
280mm

Customising options for B9006756

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
