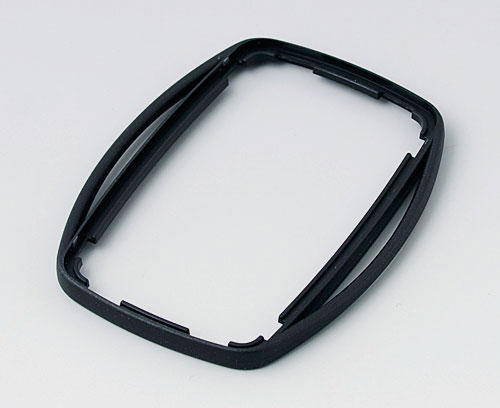

B9004756 Intermediate ring EM

B9004756

Intermediate ring EM

Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply

1 intermediate ring EM

  • Components/Accessories
  • View Customising Options

System components to complete

B9004806 Bottom and top part EM

B9004806

Bottom and top part EM Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.

Supply 1 top and bottom part EM, 1 self-tapping screw

Close

B9004806

Bottom and top part EM
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
68x42x18mm
B9004856 Bottom and top part EM

B9004856

Bottom and top part EM Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.

Supply 1 top and bottom part EM, 1 self-tapping screw

Close

B9004856

Bottom and top part EM
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
68x42x18mm

Accessory "carrying"

B9100033 Wrist strap

B9100033

Wrist strap Adjustable wrist strap with hook/loop fastener.

Supply 1 wrist strap

Close

B9100033

Wrist strap
product added to your basket
black
280mm

Customising options for B9004756

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
