B2210115 MEDITEC D 220, with handle bar

B2210115

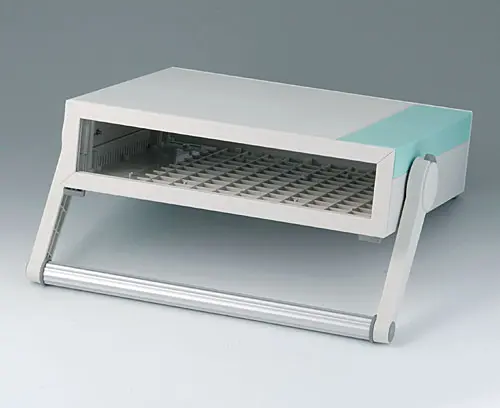

MEDITEC D 220, with handle bar

Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar

  • Components/Accessories
  • View Customising Options

Accessory to complete

B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

Close

B2129007

Sloping control panel D
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2129307 Front / rear panel D, flat

B2129307

Front / rear panel D, flat For case without side panels.

Supply 1 front panel

Close

B2129307

Front / rear panel D, flat
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
271.6x55.6x3mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Close

B2134012

Stacking elements
product added to your basket
PA 6
volcano

Customising options for B2210115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Colour
Enclosure off-white RAL 9002,
Side trims lagoon
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
290 mm
Depth
260 mm
Height
74 mm
PCB length, base
260 mm
PCB width, base
245 mm
Keypad length
262 mm
Keypad width
46 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1380 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
