B2116507 Handle bar E

B2116507

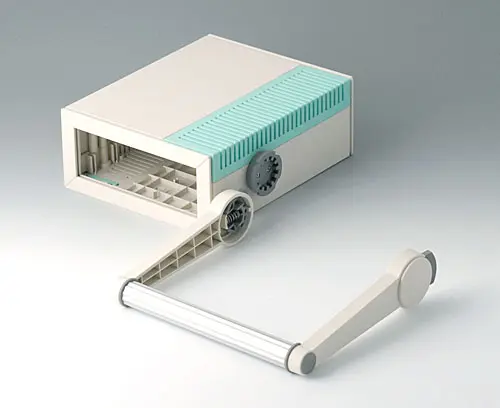

Handle bar E

For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply

2 side arms, 1 al-profile, antislipping device, lid, assembly kit

  • Components/Accessories
  • View Customising Options

System components to complete

B2012007 L-shells E 220, without holes

B2012007

L-shells E 220, without holes Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2012007

L-shells E 220, without holes
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
B2012107 L-shells E 220, with holes for handle

B2012107

L-shells E 220, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2012107

L-shells E 220, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
B2013007 L-shells E 160, without holes

B2013007

L-shells E 160, without holes Component as separate parts: L-shells without hole. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2013007

L-shells E 160, without holes
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
B2013107 L-shells E 160, with holes for handle

B2013107

L-shells E 160, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2013107

L-shells E 160, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
B2020005 Side trims 220, without ventilation

B2020005

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2020005

Side trims 220, without ventilation
product added to your basket
ABS
lagoon
B2020007 Side trims 220, without ventilation

B2020007

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2020007

Side trims 220, without ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2021005 Side trims 220, with ventilation

B2021005

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2021005

Side trims 220, with ventilation
product added to your basket
ABS
lagoon
B2021007 Side trims 220, with ventilation

B2021007

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2021007

Side trims 220, with ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2022005 Side trims 160, without ventilation

B2022005

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2022005

Side trims 160, without ventilation
product added to your basket
ABS
lagoon
B2022007 Side trims 160, without ventilation

B2022007

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2022007

Side trims 160, without ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2023005 Side trims 160, with ventilation

B2023005

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2023005

Side trims 160, with ventilation
product added to your basket
ABS
lagoon
B2023007 Side trims 160, with ventilation

B2023007

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2023007

Side trims 160, with ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2030107 Side panels 220, with holes for handle

B2030107

Side panels 220, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Close

B2030107

Side panels 220, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2031107 Side panels 160, with holes for handle

B2031107

Side panels 160, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

Close

B2031107

Side panels 160, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2212005 MEDITEC E 220, without handle bar

B2212005

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2212005

MEDITEC E 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212007 MEDITEC E 220, without handle bar

B2212007

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2212007

MEDITEC E 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212015 MEDITEC E 220, without handle bar

B2212015

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2212015

MEDITEC E 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2212017 MEDITEC E 220, without handle bar

B2212017

MEDITEC E 220, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2212017

MEDITEC E 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x260x74mm
IP 40
B2213005 MEDITEC E 160, without handle bar

B2213005

MEDITEC E 160, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2213005

MEDITEC E 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
IP 40
B2213007 MEDITEC E 160, without handle bar

B2213007

MEDITEC E 160, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2213007

MEDITEC E 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
IP 40
B2213015 MEDITEC E 160, without handle bar

B2213015

MEDITEC E 160, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2213015

MEDITEC E 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
IP 40
B2213017 MEDITEC E 160, without handle bar

B2213017

MEDITEC E 160, without handle bar Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit and 4 case-feet

Close

B2213017

MEDITEC E 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x200x74mm
IP 40

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Close

B2116007

Sloping control panel E
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2116307 Front / rear panel E, flat

B2116307

Front / rear panel E, flat For case without side panels.

Supply 1 front panel

Close

B2116307

Front / rear panel E, flat
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
141.6x55.6x3mm
B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Close

B2116407

Front / rear panel Z1
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
141.6x105.6x3mm
B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

Close

B2116707

Infill panel E
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
142x55x5mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Close

B2134012

Stacking elements
product added to your basket
PA 6
volcano

Customising options for B2116507

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Side arms off-white RAL 9002,
Push button handle volcano,
Profile handle matt anodised
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Weight/1 part
175 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
