B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails

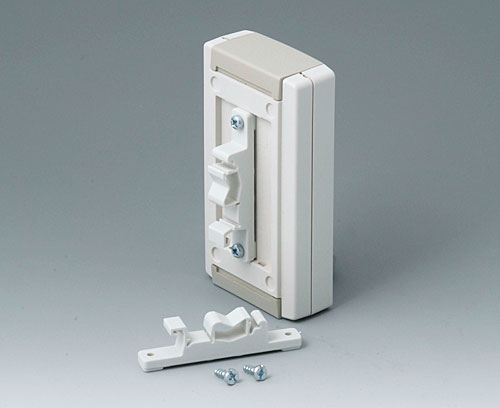

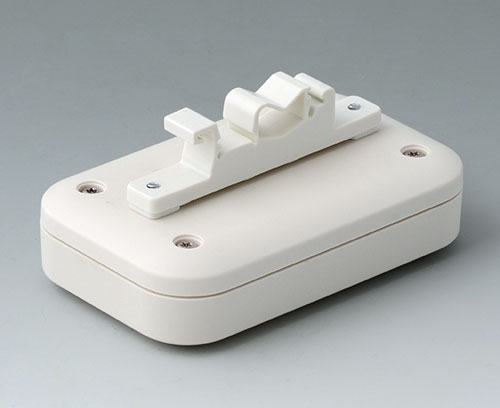

Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply

1 piece incl, assembly kit

  • To be used for
A9421107 EVOTEC 100, Vers. I

A9421107

EVOTEC 100, Vers. I 2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9421107

EVOTEC 100, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
100x62x26mm
IP 65 opt., IP 40
A9423107 EVOTEC 100, Vers. I

A9423107

EVOTEC 100, Vers. I 2-part plastic enclosure with flat top part, height 31. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9423107

EVOTEC 100, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
100x62x31mm
IP 65 opt., IP 40
A9431107 EVOTEC 125, Vers. I

A9431107

EVOTEC 125, Vers. I 2-part plastic enclosure with flat top part, height 30. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9431107

EVOTEC 125, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
125x78x30mm
IP 65 opt., IP 40
A9433107 EVOTEC 125, Vers. I

A9433107

EVOTEC 125, Vers. I 2-part plastic enclosure with flat top part, height 37. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9433107

EVOTEC 125, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
125x78x37mm
IP 65 opt., IP 40
A9441107 EVOTEC 150, Vers. I

A9441107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9441107

EVOTEC 150, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x35mm
IP 65 opt., IP 40
A9443107 EVOTEC 150, Vers. I

A9443107

EVOTEC 150, Vers. I 2-part plastic enclosure with flat top part, height 45. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9443107

EVOTEC 150, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x45mm
IP 65 opt., IP 40
A9446107 EVOTEC 150, Vers. III

A9446107

EVOTEC 150, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet

Close

A9446107

EVOTEC 150, Vers. III
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
150x93x36mm
IP 65 opt., IP 40
B1050365 TOPTEC 123 H, Vers. I

B1050365

TOPTEC 123 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version without ventilations slots.

Supply 1 case-top and base, 2 end panels

Close

B1050365

TOPTEC 123 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1050465 TOPTEC 123 H, Vers. II

B1050465

TOPTEC 123 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1050465

TOPTEC 123 H, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
123x68x45mm
IP 40
B1055365 TOPTEC 123 F, Vers. I

B1055365

TOPTEC 123 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1055365

TOPTEC 123 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40
B1055465 TOPTEC 123 F, Vers. II

B1055465

TOPTEC 123 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1055465

TOPTEC 123 F, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
123x68x30mm
IP 40
B1060365 TOPTEC 154 H, Vers. I

B1060365

TOPTEC 154 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1060365

TOPTEC 154 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
154x84x56mm
IP 40
B1060465 TOPTEC 154 H, Vers. II

B1060465

TOPTEC 154 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1060465

TOPTEC 154 H, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
154x84x56mm
IP 40
B1065365 TOPTEC 154 F, Vers. I

B1065365

TOPTEC 154 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1065365

TOPTEC 154 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
154x84x38mm
IP 40
B1065465 TOPTEC 154 F, Vers. II

B1065465

TOPTEC 154 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1065465

TOPTEC 154 F, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
154x84x38mm
IP 40
B1070365 TOPTEC 194 H, Vers. I

B1070365

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070365

TOPTEC 194 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
194x115x68mm
IP 40
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070465

TOPTEC 194 H, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
194x115x68mm
IP 40
B1075365 TOPTEC 194 F, Vers. I

B1075365

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075365

TOPTEC 194 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
194x115x46mm
IP 40
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075465

TOPTEC 194 F, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
194x115x46mm
IP 40
  • Technical Data
  • Purchasing Data
Material
Colour
off-white RAL 9002
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
