A0336370 Front / rear panel 63 TE 3 HE

A0336370

Front / rear panel 63 TE 3 HE

Front/rear panel for case 63 TE 3 HE.

Supply

1 front panel

  • To be used for
  • View Customising Options
A0116170 Shell 63 TE

A0116170

Shell 63 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate Article).

Supply 1 shell

Close

A0116170

Shell 63 TE
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x27mm
A0116370 Snap-in panel, without slots

A0116370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Close

A0116370

Snap-in panel, without slots
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0120270 Side panel 2 HE

A0120270

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0120270

Side panel 2 HE
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
250x88.9mm
A0120280 Side panel 2 HE

A0120280

Side panel 2 HE Side panel 2 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0120280

Side panel 2 HE
product added to your basket
ABS (UL 94 HB)
pebble grey RAL 7032
250x88.9mm
A0121270 Side panel 2 HE, for handle mounting

A0121270

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0121270

Side panel 2 HE, for handle mounting
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
250x88.9mm
A0121280 Side panel 2 HE, for handle mounting

A0121280

Side panel 2 HE, for handle mounting Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0121280

Side panel 2 HE, for handle mounting
product added to your basket
ABS (UL 94 HB)
pebble grey RAL 7032
250x88.9mm
A0126370 Snap-in panel, with slots

A0126370

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Close

A0126370

Snap-in panel, with slots
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0136370 Snap-in panel, without slots, with feet

A0136370

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells. For combination with tolt feet (see accessory).

Supply 1 snap-in panel without slots

Close

A0136370

Snap-in panel, without slots, with feet
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0146370 Snap-in panel, with slots, with feet

A0146370

Snap-in panel, with slots, with feet Nap-in panel with slots, with feet for the bottom. For locking in the case shells. For the combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Close

A0146370

Snap-in panel, with slots, with feet
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0236070 EURO CASE 63 TE, without handle

A0236070

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Close

A0236070

EURO CASE 63 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
A0236170 EURO CASE 63 TE, without handle

A0236170

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Close

A0236170

EURO CASE 63 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm

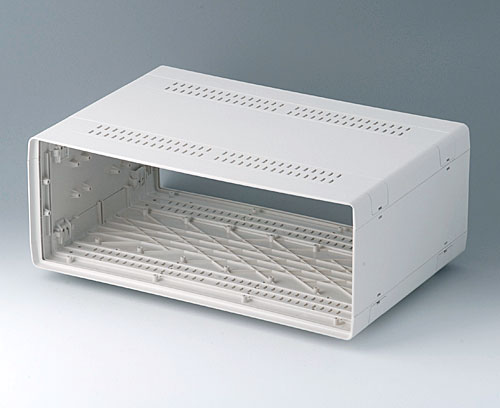

A0236270 EURO CASE 63 TE, without handle

A0236270

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Close

A0236270

EURO CASE 63 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm

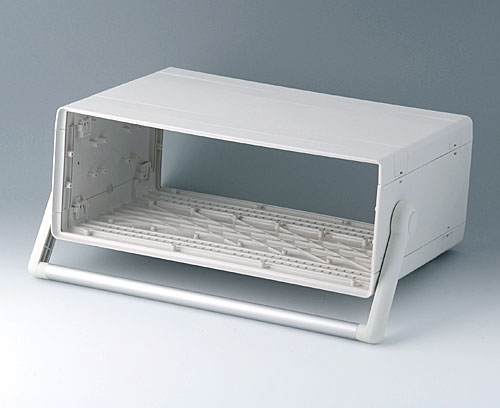

A0236470 EURO CASE 63 TE, with handle

A0236470

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle

Close

A0236470

EURO CASE 63 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
A0236570 EURO CASE 63 TE, with handle

A0236570

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle

Close

A0236570

EURO CASE 63 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
A0236670 EURO CASE 63 TE, with handle

A0236670

EURO CASE 63 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 2 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle

Close

A0236670

EURO CASE 63 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
367x250x143mm
A0346316 Handle 63 TE

A0346316

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0346316

Handle 63 TE
product added to your basket
PA 6
off-white RAL 9002
A0346317 Handle 63 TE

A0346317

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0346317

Handle 63 TE
product added to your basket
PA 6
off-white RAL 9002
A0346318 Handle 63 TE

A0346318

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0346318

Handle 63 TE
product added to your basket
PA 6
pebble grey RAL 7032

Customising options for A0336370

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
357.8 mm
Height
135.2 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
245 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
