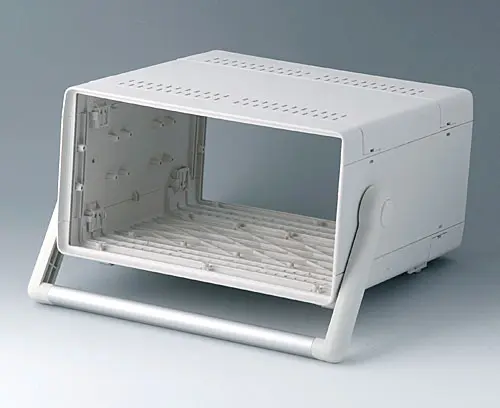

A0234670 EURO CASE 42 TE, with handle

A0234670

EURO CASE 42 TE, with handle

Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply

2 shells, 2 side panels 2 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle

  • Components/Accessories
  • View Customising Options

Accessory to complete

A0334270 Front / rear panel 42 TE 3 HE

A0334270

Front / rear panel 42 TE 3 HE Front/rear panel for case 42 TE 3 HE.

Supply 1 front panel

Close

A0334270

Front / rear panel 42 TE 3 HE
product added to your basket
Aluminium
matt anodised
250.8x135.2x2mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel

Customising options for A0234670

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
off-white RAL 9002
Width
260 mm
Depth
250 mm
Height
143 mm
PCB length, base
243 mm
PCB width, base
220 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1134 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
