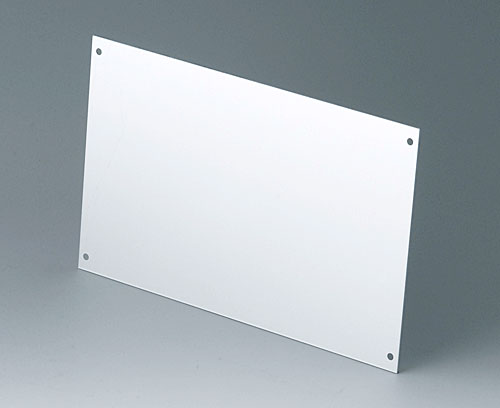

A9180001 Front panel 220

A9180001

Front panel 220

Front panel for DESK CASE 220.

Supply

1 front panel (screws supplied with case)

  • To be used for
  • View Customising Options
A9082065 DESK CASE 220

A9082065

DESK CASE 220 Two-part case with sloped operation area. Fastenings pillars for mounting PCBs in the base. Raised rear area to accommodate plugs.

Supply 1 top and base part, assembly kit

Close

A9082065

DESK CASE 220
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
220x156x100mm

Customising options for A9180001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
205.5 mm
Depth
129.4 mm
Height
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
107 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
