B4016417 Lid M closed, flat
Scroll

B4016417

Lid M closed, flat

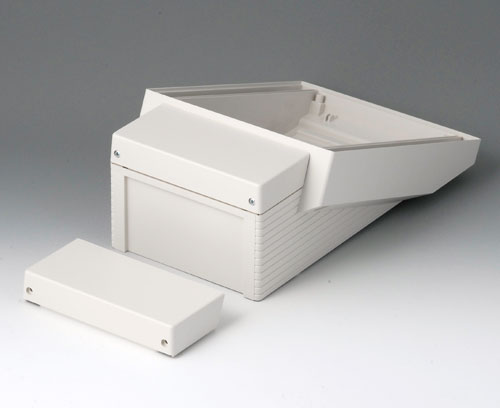

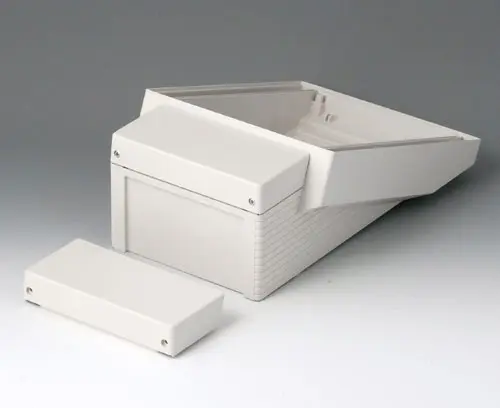

Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply

1 lid, 2 screws M3

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4016417

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
B4016117 DATEC-TERMINAL M, Vers. I

B4016117

DATEC-TERMINAL M, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Close

B4016117

DATEC-TERMINAL M, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016217 DATEC-TERMINAL M, Vers. II

B4016217

DATEC-TERMINAL M, Vers. II Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Close

B4016217

DATEC-TERMINAL M, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016317 DATEC-TERMINAL M, Vers. III

B4016317

DATEC-TERMINAL M, Vers. III Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Close

B4016317

DATEC-TERMINAL M, Vers. III
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.

Customising options for B4016417

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
134 mm
Depth
62 mm
Height
24 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
55 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
