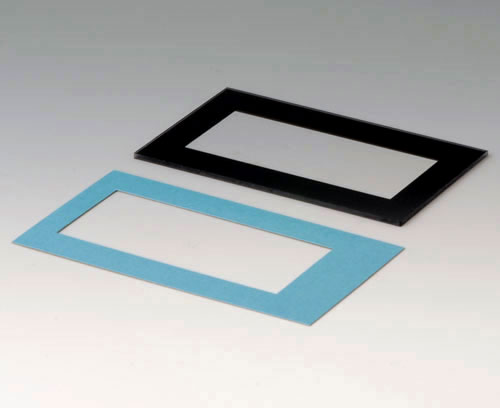

A9175009 Display window L, border black

A9175009

Display window L, border black

The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply

1 display window, 1 adhesive foil

  • To be used for
  • View Customising Options
A9075209 DATEC-MOBIL-BOX L, Vers. II

A9075209

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9075209

DATEC-MOBIL-BOX L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.
A9075219 DATEC-MOBIL-BOX L, Vers. II

A9075219

DATEC-MOBIL-BOX L, Vers. II Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version Top with display cutout for LCD modules of 20 characters x 4 lines

Supply Case-top and base, assembly kit

Close

A9075219

DATEC-MOBIL-BOX L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
252x121x50mm
IP 65 opt.

Customising options for A9175009

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Colour
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
