A9226119 Wall suspension element
Scroll

A9226119

Wall suspension element

Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply

2 claps, 2 bars, 1 holder

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9226119

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
A9078109 DATEC-CONTROL M, Vers. I

A9078109

DATEC-CONTROL M, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Close

A9078109

DATEC-CONTROL M, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
243x130x60mm
IP 54 opt.
A9078209 DATEC-CONTROL M, Vers. II

A9078209

DATEC-CONTROL M, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Close

A9078209

DATEC-CONTROL M, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
243x130x60mm
IP 54 opt.

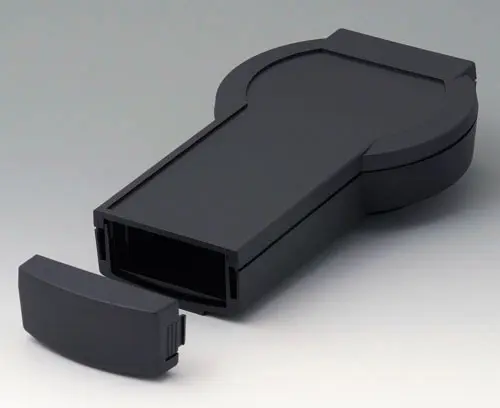

A9079109 DATEC-CONTROL L, Vers. I

A9079109

DATEC-CONTROL L, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Close

A9079109

DATEC-CONTROL L, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
266x144x60mm
IP 54 opt.

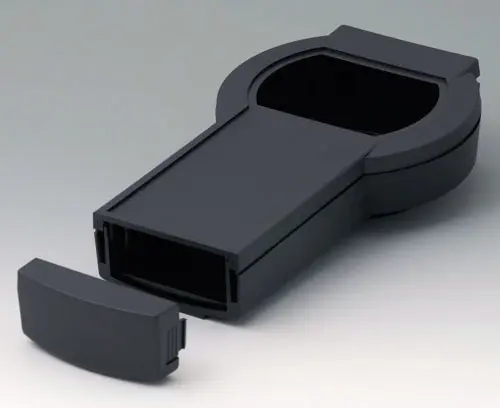

A9079209 DATEC-CONTROL L, Vers. II

A9079209

DATEC-CONTROL L, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply Top and base part,end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Close

A9079209

DATEC-CONTROL L, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
266x144x60mm
IP 54 opt.

Customising options for A9226119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
43 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
