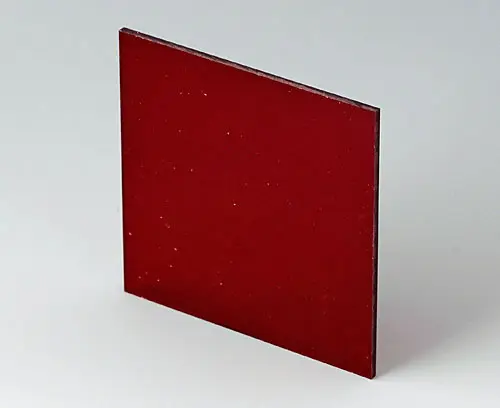

B6123341 Front panel

B6123341

Front panel

Front panel for DIN-MODULAR CASE 72 x 72.

Supply

1 front panel

  • To be used for
  • View Customising Options

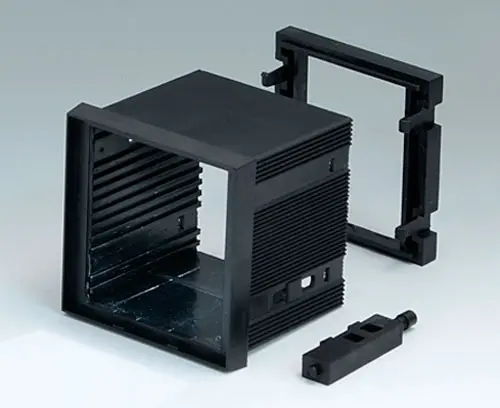

B6023011 DIN-MODULAR CASE TYPE A

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6023011

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm
B6023021 DIN-MODULAR CASE TYPE A

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6023021

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm

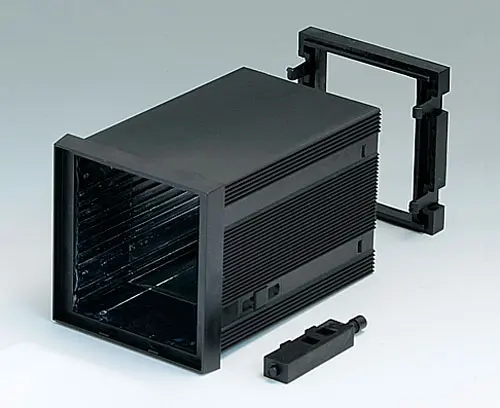

B6023031 DIN-MODULAR CASE TYPE A

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6023031

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm

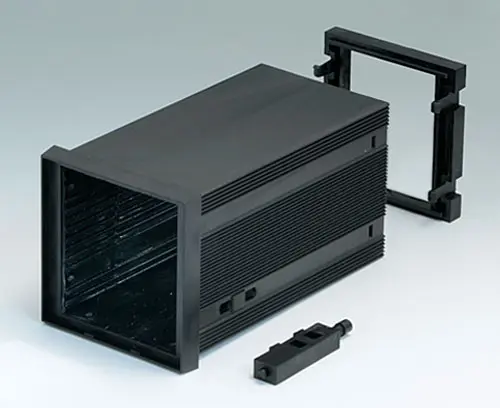

B6023061 DIN-MODULAR CASE TYPE A

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6023061

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Customising options for B6123341

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Colour
red transparent
Width
67.5 mm
Height
67.5 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
