A9174004 Battery compartment, 4 x AA

A9174004

Battery compartment, 4 x AA

Application: for 4 x 1.5 V mignon-cells (AA).

Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.

Supply

1 battery compartment, assembly kit

  • Components/Accessories

Accessory "battery"

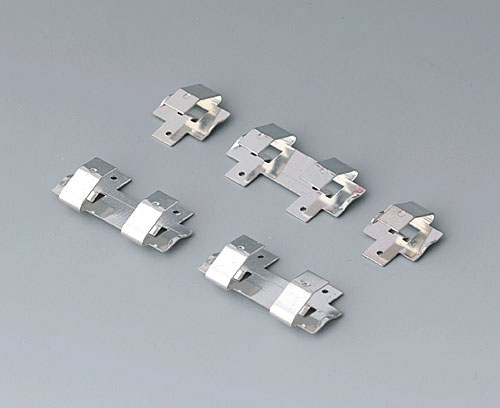

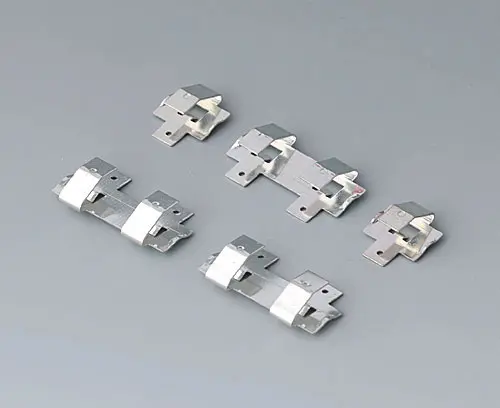

A9161001 Set of battery clips, 4 x AA

A9161001

Set of battery clips, 4 x AA For contacting the batteries.

Supply 3 double contacts, 2 Single contacts

Close

A9161001

Set of battery clips, 4 x AA
product added to your basket
Steel
tin-plated

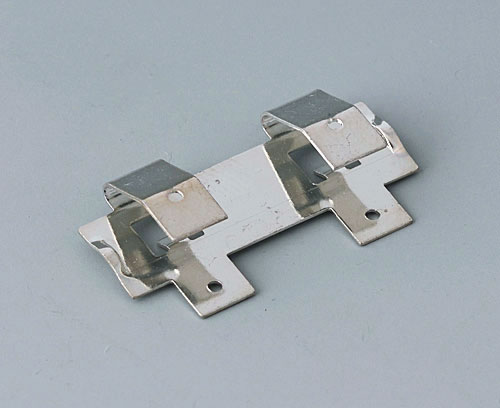

A9193003 Battery-clips, double contact

A9193003

Battery-clips, double contact Version large, for double contact. Supply as separate part.

Supply 1 battery clip

Close

A9193003

Battery-clips, double contact
product added to your basket
Steel
tin-plated

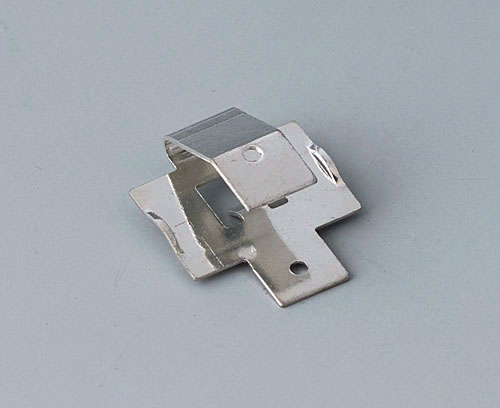

A9193004 Battery-clips, single contact

A9193004

Battery-clips, single contact Version small, for single contact. Supply as separate part.

Supply 1 battery clip

Close

A9193004

Battery-clips, single contact
product added to your basket
Steel
tin-plated

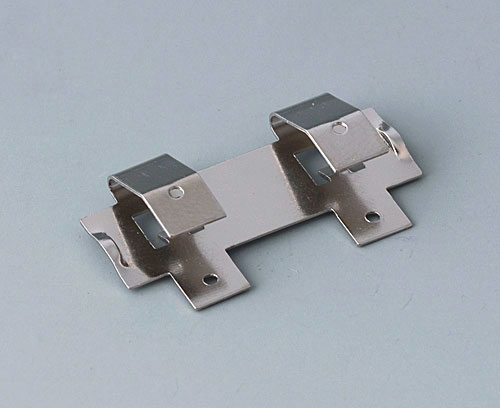

A9193005 Battery clips, double contact

A9193005

Battery clips, double contact Version large, for double contact. Supply as separate part.

Supply 1 battery clip

Close

A9193005

Battery clips, double contact
product added to your basket
Steel
nickel-plated

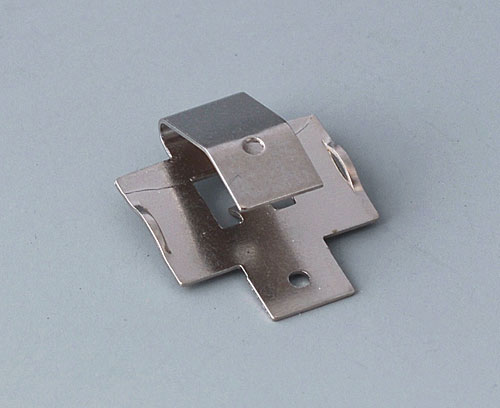

A9193006 Battery-clips, single contact

A9193006

Battery-clips, single contact Version small, for single contact. Supply as separate part.

Supply 1 battery clip

Close

A9193006

Battery-clips, single contact
product added to your basket
Steel
nickel-plated

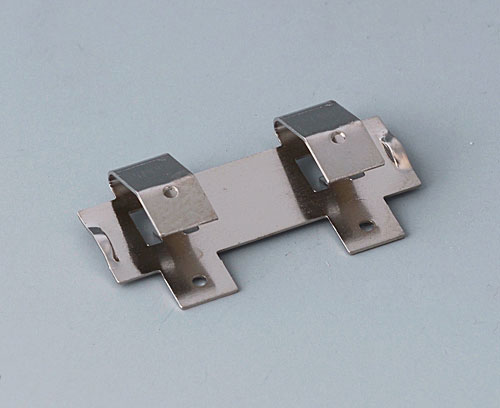

A9193008 Battery clips, double contact

A9193008

Battery clips, double contact Version large, for double contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply 1 battery clip

Close

A9193008

Battery clips, double contact
product added to your basket
CuBe
nickel-plated

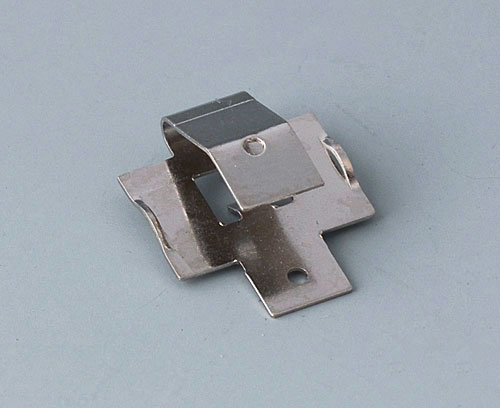

A9193009 Battery clips, single contact

A9193009

Battery clips, single contact Version small, for single contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply 1 battery clip

Close

A9193009

Battery clips, single contact
product added to your basket
CuBe
nickel-plated
  • Technical Data
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
