Minimum components
1 bottom and top part R110.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of the bottom part and use of battery compartment).
System components to complete

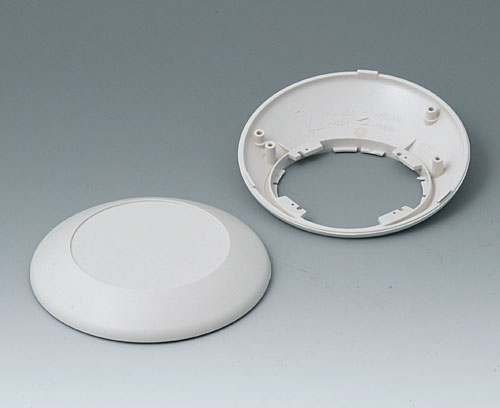

B5010207
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 F, assembly kit
Close
Bottom and top part R110 F
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010307
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 H, assembly kit
Close
Bottom and top part R110 H
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
⌀110x41mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Close
Set of battery clips, 2 x AAA
product added to your basket
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Close
Battery contact, 2 x AAA
product added to your basket
Steel
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply
1 battery holder, 1 self-tapping screw
Close
Battery holder, 2 x AAA
product added to your basket
PA 6
(UL 94 HB)
black RAL 9005
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Close
Battery compartment, 2 x AAA
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Close
Anti-rotation device
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Close
Wall mounting set
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Close
Set of screws
product added to your basket
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Close
Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent
Minimum components
1 bottom and top part S110.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of the bottom part and use of battery compartment).
System components to complete
B5012207
Bottom and top part S110F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclinded"
Supply
1 top and bottom part S110 F, assembly kit
Close
Bottom and top part S110F
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
110x110x38mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Close
Set of battery clips, 2 x AAA
product added to your basket
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Close
Battery contact, 2 x AAA
product added to your basket
Steel
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply
1 battery holder, 1 self-tapping screw
Close
Battery holder, 2 x AAA
product added to your basket
PA 6
(UL 94 HB)
black RAL 9005
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Close
Battery compartment, 2 x AAA
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Close
Anti-rotation device
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Close
Wall mounting set
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Close
Set of screws
product added to your basket
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Close
Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent
Minimum components
1 bottom and top part O160.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of bottom part and use of battery compartment).
System components to complete
B5015207
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 F, assembly kit
Close
Bottom and top part O160 F
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015307
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 H, assembly kit
Close
Bottom and top part O160 H
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
160x110x41mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Close
Set of battery clips, 2 x AAA
product added to your basket
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Close
Battery contact, 2 x AAA
product added to your basket
Steel
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply
1 battery holder, 1 self-tapping screw
Close
Battery holder, 2 x AAA
product added to your basket
PA 6
(UL 94 HB)
black RAL 9005
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Close
Battery compartment, 2 x AAA
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Close
Anti-rotation device
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Close
Wall mounting set
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Close
Set of screws
product added to your basket
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Close
Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent
Minimum components
1 bottom and top part E160.
1 lid / battery compartment lid / base / base 30° or base 55° (depending on the version of bottom part and use of battery compartment).
System components to complete
B5017207
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part E160 F, assembly kit
Close
Bottom and top part E160 F
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
160x110x38mm
Accessory "battery"
A9166001
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply
4 single contacts
Close
Set of battery clips, 2 x AAA
product added to your basket
Steel
tin-plated
A9166002
Battery contact, 2 x AAA
In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.
Supply
1 battery contact
Close
Battery contact, 2 x AAA
product added to your basket
Steel
tin-plated
A9166003
Battery holder, 2 x AAA
The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.
Supply
1 battery holder, 1 self-tapping screw
Close
Battery holder, 2 x AAA
product added to your basket
PA 6
(UL 94 HB)
black RAL 9005
B5111107
Battery compartment, 2 x AAA
Application: For 2 x 1.5 V micro cells (AAA).
Supply
1 battery compartment, assembly kit
Close
Battery compartment, 2 x AAA
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Close
Anti-rotation device
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111307
Wall mounting set
Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screw
Close
Wall mounting set
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Close
Set of screws
product added to your basket
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Close
Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent
Customising options for B5011317
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
