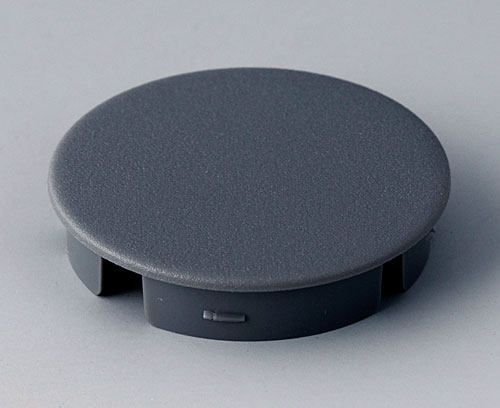

A4131008 Cover 31, without line
Scroll

A4131008

Cover 31, without line

Suitable for round knobs 31. Cover simply to pin up.

Supply

1 cover

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A4131008

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

System components to complete

A2531060 ROUND KNOB 31, without line

A2531060

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531060

ROUND KNOB 31, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
31x15mm
Bore hole 6mm
A2531068 ROUND KNOB 31, without line

A2531068

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531068

ROUND KNOB 31, without line
product added to your basket
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Bore hole 6mm
A2531630 ROUND KNOB 31, without line

A2531630

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531630

ROUND KNOB 31, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
31x15mm
Bore hole 1/4″
A2631060 ROUND KNOB 31, with line

A2631060

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2631060

ROUND KNOB 31, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
31x15mm
Bore hole 6mm
A2631068 ROUND KNOB 31, with line

A2631068

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2631068

ROUND KNOB 31, with line
product added to your basket
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Bore hole 6mm

Customising options for A4131008

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
dusty grey RAL 7037
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
